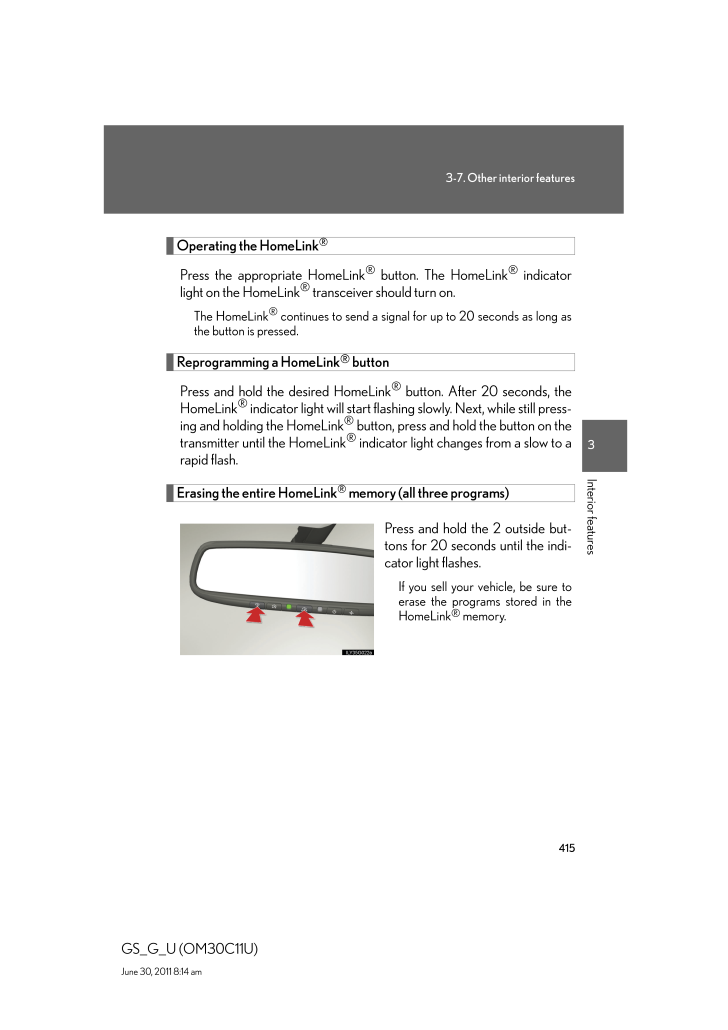

4153-7. Other interior features3Interior featuresGS_G_U (OM30C11U)June 30, 2011 8:14 amOperating the HomeLink(R)Press the appropriate HomeLink(R) button. The HomeLink(R) indicatorlight on the HomeLink(R) transceiver should turn on.The HomeLink(R) continues to send a signal for up to 20 seconds as long asthe button is pressed.Reprogramming a HomeLink(R) buttonPress and hold the desired HomeLink(R) button. After 20 seconds, theHomeLink(R) indicator light will start flashing slowly. Next, wh ile still press-ing and holding the HomeLink(R) button, press and ho ld the button on thetransmitter until the HomeLink(R) indicator light changes from a slow to arapid flash.Erasing the entire HomeLink(R) memory (all three programs)Press and hold the 2 outside but-tons for 20 seconds until the indi-cator light flashes.If you sell your vehicle, be sure toerase the programs stored in theHomeLink(R) memory.
