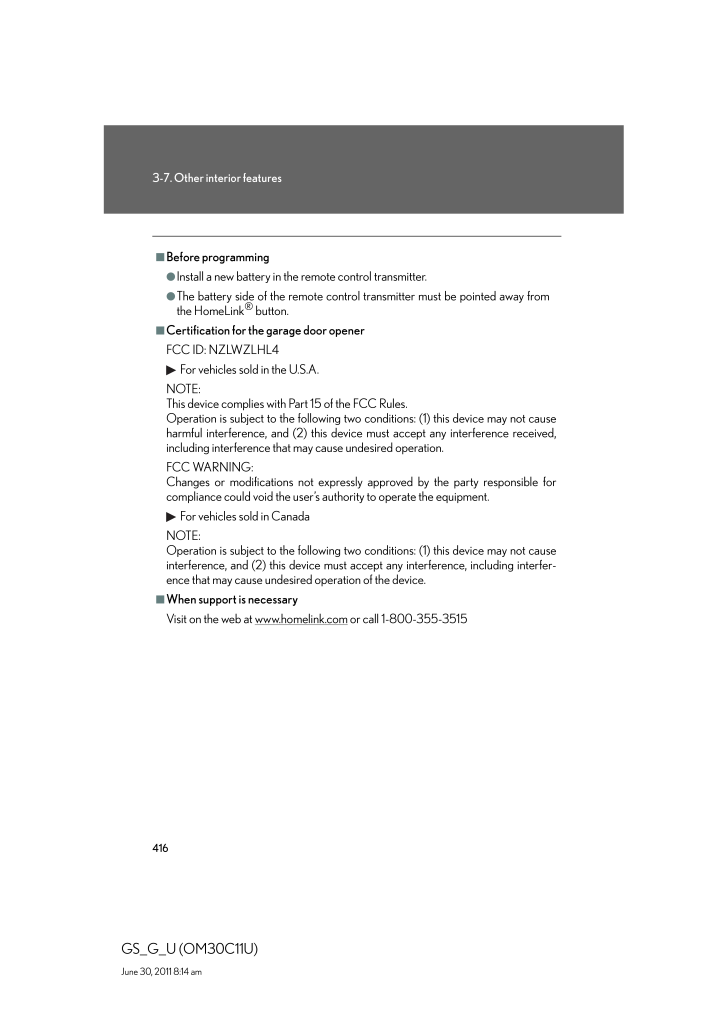

4163-7. Other interior featuresGS_G_U (OM30C11U)June 30, 2011 8:14 am■Before programming●Install a new battery in the remote control transmitter.●The battery side of the remote control transmitter must be pointed away fromthe HomeLink(R) button.■Certification for the garage door openerFCC ID: NZLWZLHL4For vehicles sold in the U.S.A.NOTE:This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: (1) this device may not causeharmful interference, and (2) this device must accept any interference received,including interference that may cause undesired operation.FCC WARNING: Changes or modifications not expressly approved by the party responsible forcompliance could void the user's authority to operate the equipment.For vehicles sold in CanadaNOTE:Operation is subject to the following two conditions: (1) this device may not causeinterference, and (2) this device must accept any interference, including interfer-ence that may cause undesired operation of the device.■When support is necessary Visit on the web at www.homelink.com or call 1-800-355-3515
