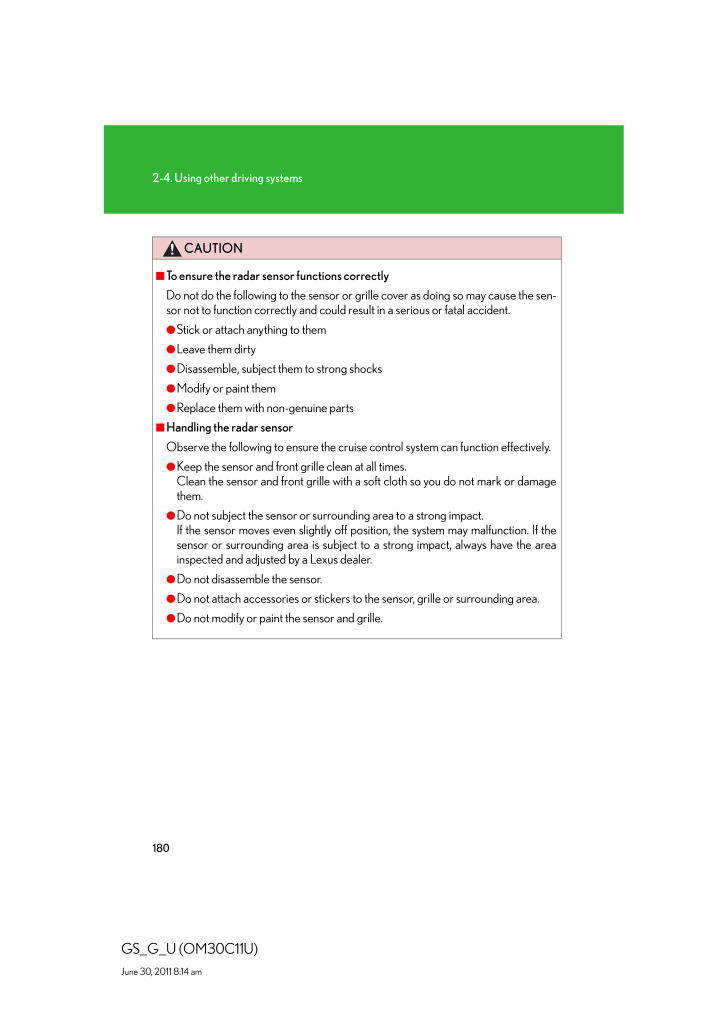

1802-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 amCAUTION■To ensure the radar sensor functions correctlyDo not do the following to the sensor or grille cover as doing so may cause the sen-sor not to function correctly and could result in a serious or fatal accident.●Stick or attach anything to them●Leave them dirty●Disassemble, subject them to strong shocks●Modify or paint them●Replace them with non-genuine parts■Handling the radar sensorObserve the following to ensure the cruise control system can function effectively.●Keep the sensor and front grille clean at all times.Clean the sensor and front grille with a so ft cloth so you do not mark or damagethem.●Do not subject the sensor or surrounding area to a strong impact.If the sensor moves even slightly off position, the system may malfunction. If thesensor or surrounding area is subject to a strong impact, always have the areainspected and adjusted by a Lexus dealer.●Do not disassemble the sensor.●Do not attach accessories or stickers to the sensor, grille or surrounding area.●Do not modify or paint the sensor and grille.
