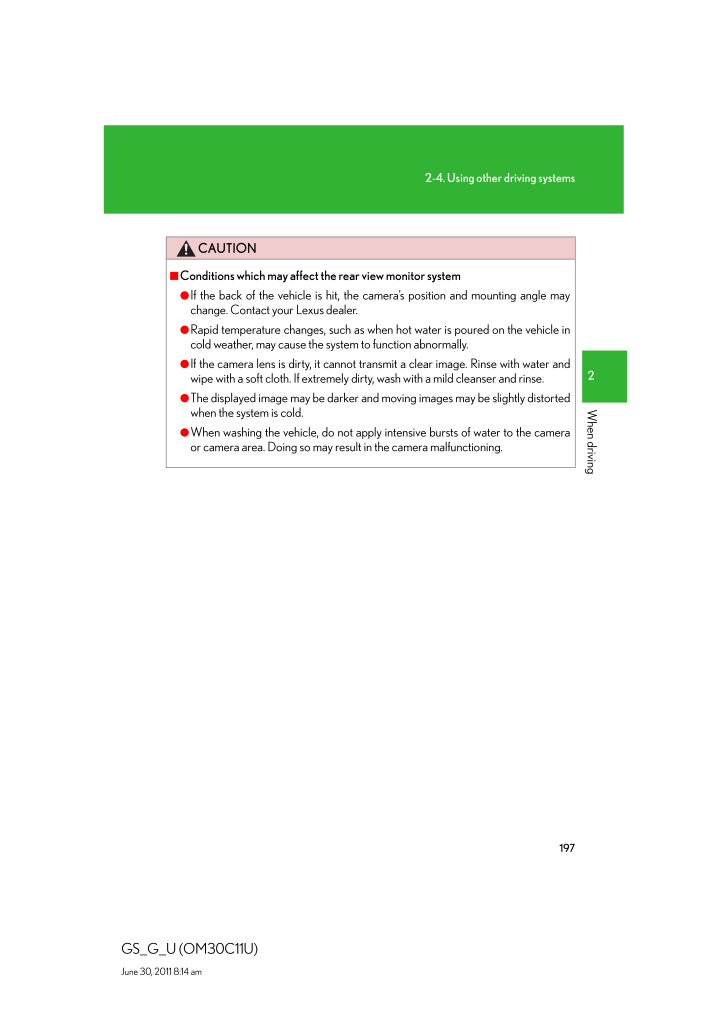

1972-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amCAUTION■Conditions which may affect the rear view monitor system●If the back of the vehicle is hit, the camera's position and mounting angle maychange. Contact your Lexus dealer.●Rapid temperature changes, such as when hot water is poured on the vehicle incold weather, may cause the system to function abnormally.●If the camera lens is dirty, it cannot transmit a clear image. Rinse with water andwipe with a soft cloth. If extremely dirty, wash with a mild cleanser and rinse.●The displayed image may be darker and moving images may be slightly distortedwhen the system is cold.●When washing the vehicle, do not apply intensive bursts of water to the cameraor camera area. Doing so may result in the camera malfunctioning.
参考になったと評価
3人が参考になったと評価しています。
このマニュアルの目次
-
1 .1652When drivingGS_G_U (O...1652When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 am2-4. Using other driving systemsCruise control∗∗: If equippedUse the cruise control to maintain a set speed without using the accelera-tor. IndicatorCruise control switch■ Set the vehicle speedPress th...
-
2 .1662-4. Using other drivi...1662-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 am■ Adjusting the speed settingIncrease speedDecrease speedHold the lever until the desiredspeed setting is obtained. Fine adjustment of the set speedcan be made by lightly pressingthe ...
-
3 .1672-4. Using other drivi...1672-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 am■Cruise control can be set when●The shift lever is in the D or "4", "5", "6", "7" or "8" (GS460) or "4", "5", or "6"(GS350) range of S has been selected.●Vehicle speed is...
-
4 .1682-4. Using other drivi...1682-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 amCAUTION■To avoid operating the cruise control by mistakeKeep the "ON-OFF" button off when not in use.■Situations unsuitable for cruise controlDo not use cruise control in any of the f...
-
5 .1692-4. Using other drivi...1692-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amDynamic radar cruise control∗∗: If equippedDynamic radar cruise control supple ments conventional cruise controlwith a vehicle-to-vehicle distance co ntrol. In the vehic...
-
6 .1702-4. Using other drivi...1702-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 am■ Set the vehicle speedPress the "ON-OFF" buttonto activate the cruise control.Press the button once more todeactivate.Accelerate or decelerate to thedesired speed and press thelever ...
-
7 .1712-4. Using other drivi...1712-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 am■ Selecting conventional constant speed control mode Press the "ON-OFF" buttonto activate the cruise control.Press the button once more todeactivate the cruise control.Sw...
-
8 .1722-4. Using other drivi...1722-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 am■ Canceling and resuming the speed settingCancelPull the lever towards you tocancel cruise control.The setting is also canceledwhen the brake pedal isdepressed.ResumeTo resume cruise ...
-
9 .1732-4. Using other drivi...1732-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amCruising in vehicle-to-vehicle distance control mode This mode employs a radar sensor to detect the presence of vehicleswithin 400 ft. (120 m) ahead and to judge the dis...
-
10 .1742-4. Using other drivi...1742-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 amExample of follow-up cruising When following a vehicle driving slower than the set speedThe system continues follow-up cruising while adjusting for changes in thespeed of the vehicle...
-
11 .1752-4. Using other drivi...1752-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 am■Dynamic radar cruise can be set when ●The shift lever is in D. (Recommended)Dynamic radar cruise control can also be set when the shift lever is in the S posi-tion and r...
-
12 .1762-4. Using other drivi...1762-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 am■Vehicle-to-vehicle distance settingsSelect a distance from the table below. Note that the distances shown correspondto a vehicle speed of 50 mph (80 km/h). Vehicle-to-vehicle distanc...
-
13 .1772-4. Using other drivi...1772-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 am■CertificationFor vehicles sold in the U.S.A.FCC ID: HYQDNMWR005This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-lowing two conditions:...
-
14 .1782-4. Using other drivi...1782-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 amCAUTION■Before using dynamic radar cruise controlDo not overly rely on vehicle-to-vehicle distance control.Be aware of the set vehicle speed. If automatic deceleration/acceleration is...
-
15 .1792-4. Using other drivi...1792-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amCAUTION■When the radar sensor may not be correctly detecting the vehicle aheadApply the brakes as necessary when any of the following types of vehicles are infront of you...
-
16 .1802-4. Using other drivi...1802-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 amCAUTION■To ensure the radar sensor functions correctlyDo not do the following to the sensor or grille cover as doing so may cause the sen-sor not to function correctly and could resul...
-
17 .1812-4. Using other drivi...1812-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amIntuitive parking assist∗∗: If equippedIntuitive parking assist uses sensors in the front and rear of the vehicle todetect the distance between the vehicle and any obst...
-
18 .1822-4. Using other drivi...1822-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 am■ Intuitive parking assist switchPress the switch to turn thesystem on/off.If the intuitive parking assist isturned on, the indicator light willcome on, and the system willoperate und...
-
19 .1832-4. Using other drivi...1832-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amMulti-information display and touch screenIf the sensors detect an obstacle, it is displayed on the multi-informationdisplay in the instrument cluster.You can change the...
-
20 .1842-4. Using other drivi...1842-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 amSensor detection display, obstacle distance and beepsWhen the intuitive parking assist is activated, the approximate distance tothe obstacle is displayed. Also, if an obstacle with ...
-
21 .1852-4. Using other drivi...1852-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 am■ Rear corner sensor■ Back sensorApproximate distance to obstacleMulti-information displayTouch screen1.5 ft. (50 cm) to 1.1 ft. (37.5 cm)(continuous) (continuous)1.1 ft....
-
22 .1862-4. Using other drivi...1862-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 amTouch screen (insert display)Dual sensor (corner) detectionRear corner sensor detectionBack sensor detectionThe tire display and the steeringguide symbol will not be displayed.■ Dual ...
-
23 .1872-4. Using other drivi...1872-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 am■ Rear corner sensor■ Back sensorApproximate distance to obstacle Touch screen1.5 ft. (50 cm) to 1.1 ft. (37.5 cm)(blinking)1.1 ft. (37.5 cm) to 0.8 ft. (25 cm)(blinking ...
-
24 .1882-4. Using other drivi...1882-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 am Steering guide symbolDisplays the steering maneuvers required to avoid an obstacle. Move thesteering wheel in the direction shown by the arrow.The steering guide symbol onlyshows th...
-
25 .1892-4. Using other drivi...1892-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 am● If multiple obstacles are detected in front and behind the vehicle at thesame time, the warning beep will change in the following manner:* If an obstacle has been detec...
-
26 .1902-4. Using other drivi...1902-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 am■The intuitive parking assist can be operated whenThe "ENGINE START STOP" switch is in the IGNITION ON mode.■When the system malfunctions●If a malfunction occurs and no obstacles have...
-
27 .1912-4. Using other drivi...1912-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 am●In the following situations, the intuitive parking assist may not function correctly,possibly leading to an accident.* There is ice, snow or mud on the sensors. (Wiping ...
-
28 .1922-4. Using other drivi...1922-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 am■CertificationFor vehicles sold in the U.S.A.For vehicles sold in CanadaCAUTION■While drivingTo reduce the chance of injury in the event of an accident or sudden stop, keep theswitch ...
-
29 .1932-4. Using other drivi...1932-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amNOTICE■When using the intuitive parking assistIn the following situations, the system may not function correctly due to a sensormalfunction etc. Have the vehicle checked ...
-
30 .1942-4. Using other drivi...1942-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 amRear view monitor system∗∗: If equippedThe rear view monitor system assists the driver by displaying an image ofthe view behind the vehicle while re versing. The image is displayed i...
-
31 .1952-4. Using other drivi...1952-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 am■Displayed area■Rear view monitor system cameraThe area covered by the camera is limited.Objects which are close to either corner ofthe bumper or under the bumper cannot ...
-
32 .1962-4. Using other drivi...1962-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 am■Smear effect■Flicker effectWhen the camera is used under fluorescent lights, sodium lights, or mercury lightsetc., the lights and the illuminated areas may appear to flicker.CAUTION■...
-
33 .1972-4. Using other drivi...1972-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amCAUTION■Conditions which may affect the rear view monitor system●If the back of the vehicle is hit, the camera's position and mounting angle maychange. Contact your Lexus...
-
34 .1982-4. Using other drivi...1982-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 amAVS (Adaptive Variable Suspension System)∗∗: If equippedAVS controls the suspension according to the road and driving conditions.Selecting an optimum driving mode allows good vehicle...
-
35 .1992-4. Using other drivi...1992-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amDriving assist systemsTo help enhance driving safety and performance, the following systemsoperate automatically in response to various driving situations. Be aware,howev...
-
36 .2002-4. Using other drivi...2002-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 amWhen the Enhanced VSC/TRAC/hill-start assist control systems areoperatingIf the vehicle is in danger of slip-ping, rolling backwards whenstarting on an incline, or if the rearwheels (...
-
37 .2012-4. Using other drivi...2012-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amTo disable TRAC and/or Enhanced VSCIf the vehicle gets stuck in fresh snow or mud, TRAC and Enhanced VSCmay reduce power from the engine to the wheels. You may need to tu...
-
38 .2022-4. Using other drivi...2022-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 am■ Turning off both TRAC and Enhanced VSCPush and hold the button for morethan 3 seconds while the vehicle isstopped to turn off TRAC andEnhanced VSC.The slip off indicator light shoul...
-
39 .2032-4. Using other drivi...2032-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 am■Automatic reactivation of TRAC and Enhanced VSCTurning the "ENGINE START STOP" switch OFF after turning off the TRAC andEnhanced VSC systems will automatically re-enable...
-
40 .2042-4. Using other drivi...2042-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 am■Reduced effectiveness of EPSThe effectiveness of EPS is reduced to prevent the system from overheating whenthere is frequent steering input over an extended period of time. The steer...
-
41 .2052-4. Using other drivi...2052-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amCAUTION■If the hill-start assist control does not operate effectivelyDo not overly rely on the hill-start assist co ntrol. The hill-start assist control may notoperate ef...
-
42 .2062-4. Using other drivi...2062-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 amPCS (Pre-Collision System)∗∗: If equippedWhen the radar sensor detects possibility of a frontal collision. Pre-colli-sion systems such as the brakes and seat belts are automatically ...
-
43 .2072-4. Using other drivi...2072-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amDisabling pre-collision brakingPre-collision braking enabledPre-collision braking disabledThe "PCS" warning light flasheswhen pre-collision braking is dis-abled.Radar sen...
-
44 .2082-4. Using other drivi...2082-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 am■Obstacles not detectedThe sensor cannot detect plastic obstacles such as pylons. There may also be occa-sions when the radar sensor cannot detect pedestrians, animals, bicycles, moto...
-
45 .2092-4. Using other drivi...2092-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 am■Conditions that may trigger the system even if there is no possibility of collision●When there is an object by the roadside at the entrance to a curve●When passing an on...
-
46 .2102-4. Using other drivi...2102-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 am■CertificationFor vehicles sold in the U.S.A.FCC ID: HYQDNMWR005This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-lowing two conditions: (1) this dev...
-
47 .2112-4. Using other drivi...2112-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amCAUTION■Handling the radar sensorObserve the following to ensure the pre-collision system can function effectively.●Keep the sensor and front grille clean at all times.Cl...
-
48 .2122-4. Using other drivi...2122-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 amCAUTION■Cautions regarding the assist contents of the systemBy means of alarms and brake control, the pre-collision system is intended to assistthe driver in avoiding collisions throu...
