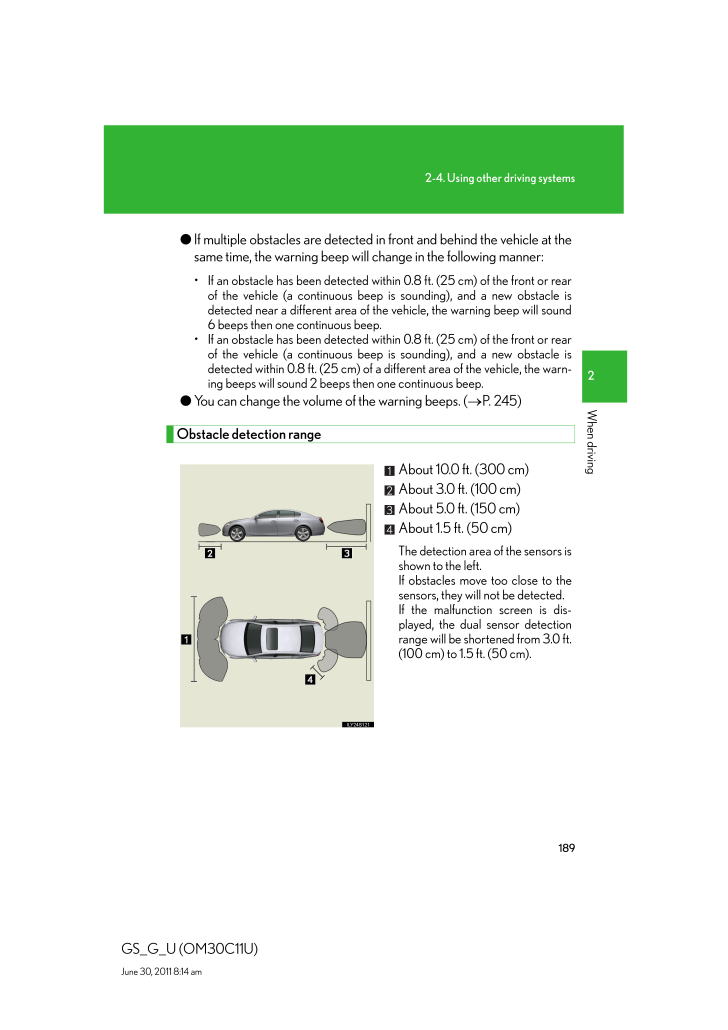

1892-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 am● If multiple obstacles are detected in front and behind the vehicle at thesame time, the warning beep will change in the following manner:* If an obstacle has been detected within 0.8 ft. (25 cm) of the front or rearof the vehicle (a continuous beep is sounding), and a new obstacle isdetected near a different area of th e vehicle, the warning beep will sound6 beeps then one continuous beep.* If an obstacle has been detected within 0.8 ft. (25 cm) of the front or rearof the vehicle (a continuous beep is sounding), and a new obstacle isdetected within 0.8 ft. (25 cm) of a different area of the vehicle, the warn-ing beeps will sound 2 beeps then one continuous beep.● You can change the volume of the warning beeps. (→ P. 245)Obstacle detection rangeAbout 10.0 ft. (300 cm)About 3.0 ft. (100 cm)About 5.0 ft. (150 cm)About 1.5 ft. (50 cm) The detection area of the sensors isshown to the left.If obstacles move too close to thesensors, they will not be detected.If the malfunction screen is dis-played, the dual sensor detectionrange will be shortened from 3.0 ft.(100 cm) to 1.5 ft. (50 cm).
参考になったと評価
3人が参考になったと評価しています。
このマニュアルの目次
-
1 .1652When drivingGS_G_U (O...1652When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 am2-4. Using other driving systemsCruise control∗∗: If equippedUse the cruise control to maintain a set speed without using the accelera-tor. IndicatorCruise control switch■ Set the vehicle speedPress th...
-
2 .1662-4. Using other drivi...1662-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 am■ Adjusting the speed settingIncrease speedDecrease speedHold the lever until the desiredspeed setting is obtained. Fine adjustment of the set speedcan be made by lightly pressingthe ...
-
3 .1672-4. Using other drivi...1672-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 am■Cruise control can be set when●The shift lever is in the D or "4", "5", "6", "7" or "8" (GS460) or "4", "5", or "6"(GS350) range of S has been selected.●Vehicle speed is...
-
4 .1682-4. Using other drivi...1682-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 amCAUTION■To avoid operating the cruise control by mistakeKeep the "ON-OFF" button off when not in use.■Situations unsuitable for cruise controlDo not use cruise control in any of the f...
-
5 .1692-4. Using other drivi...1692-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amDynamic radar cruise control∗∗: If equippedDynamic radar cruise control supple ments conventional cruise controlwith a vehicle-to-vehicle distance co ntrol. In the vehic...
-
6 .1702-4. Using other drivi...1702-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 am■ Set the vehicle speedPress the "ON-OFF" buttonto activate the cruise control.Press the button once more todeactivate.Accelerate or decelerate to thedesired speed and press thelever ...
-
7 .1712-4. Using other drivi...1712-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 am■ Selecting conventional constant speed control mode Press the "ON-OFF" buttonto activate the cruise control.Press the button once more todeactivate the cruise control.Sw...
-
8 .1722-4. Using other drivi...1722-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 am■ Canceling and resuming the speed settingCancelPull the lever towards you tocancel cruise control.The setting is also canceledwhen the brake pedal isdepressed.ResumeTo resume cruise ...
-
9 .1732-4. Using other drivi...1732-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amCruising in vehicle-to-vehicle distance control mode This mode employs a radar sensor to detect the presence of vehicleswithin 400 ft. (120 m) ahead and to judge the dis...
-
10 .1742-4. Using other drivi...1742-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 amExample of follow-up cruising When following a vehicle driving slower than the set speedThe system continues follow-up cruising while adjusting for changes in thespeed of the vehicle...
-
11 .1752-4. Using other drivi...1752-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 am■Dynamic radar cruise can be set when ●The shift lever is in D. (Recommended)Dynamic radar cruise control can also be set when the shift lever is in the S posi-tion and r...
-
12 .1762-4. Using other drivi...1762-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 am■Vehicle-to-vehicle distance settingsSelect a distance from the table below. Note that the distances shown correspondto a vehicle speed of 50 mph (80 km/h). Vehicle-to-vehicle distanc...
-
13 .1772-4. Using other drivi...1772-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 am■CertificationFor vehicles sold in the U.S.A.FCC ID: HYQDNMWR005This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-lowing two conditions:...
-
14 .1782-4. Using other drivi...1782-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 amCAUTION■Before using dynamic radar cruise controlDo not overly rely on vehicle-to-vehicle distance control.Be aware of the set vehicle speed. If automatic deceleration/acceleration is...
-
15 .1792-4. Using other drivi...1792-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amCAUTION■When the radar sensor may not be correctly detecting the vehicle aheadApply the brakes as necessary when any of the following types of vehicles are infront of you...
-
16 .1802-4. Using other drivi...1802-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 amCAUTION■To ensure the radar sensor functions correctlyDo not do the following to the sensor or grille cover as doing so may cause the sen-sor not to function correctly and could resul...
-
17 .1812-4. Using other drivi...1812-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amIntuitive parking assist∗∗: If equippedIntuitive parking assist uses sensors in the front and rear of the vehicle todetect the distance between the vehicle and any obst...
-
18 .1822-4. Using other drivi...1822-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 am■ Intuitive parking assist switchPress the switch to turn thesystem on/off.If the intuitive parking assist isturned on, the indicator light willcome on, and the system willoperate und...
-
19 .1832-4. Using other drivi...1832-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amMulti-information display and touch screenIf the sensors detect an obstacle, it is displayed on the multi-informationdisplay in the instrument cluster.You can change the...
-
20 .1842-4. Using other drivi...1842-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 amSensor detection display, obstacle distance and beepsWhen the intuitive parking assist is activated, the approximate distance tothe obstacle is displayed. Also, if an obstacle with ...
-
21 .1852-4. Using other drivi...1852-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 am■ Rear corner sensor■ Back sensorApproximate distance to obstacleMulti-information displayTouch screen1.5 ft. (50 cm) to 1.1 ft. (37.5 cm)(continuous) (continuous)1.1 ft....
-
22 .1862-4. Using other drivi...1862-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 amTouch screen (insert display)Dual sensor (corner) detectionRear corner sensor detectionBack sensor detectionThe tire display and the steeringguide symbol will not be displayed.■ Dual ...
-
23 .1872-4. Using other drivi...1872-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 am■ Rear corner sensor■ Back sensorApproximate distance to obstacle Touch screen1.5 ft. (50 cm) to 1.1 ft. (37.5 cm)(blinking)1.1 ft. (37.5 cm) to 0.8 ft. (25 cm)(blinking ...
-
24 .1882-4. Using other drivi...1882-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 am Steering guide symbolDisplays the steering maneuvers required to avoid an obstacle. Move thesteering wheel in the direction shown by the arrow.The steering guide symbol onlyshows th...
-
25 .1892-4. Using other drivi...1892-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 am● If multiple obstacles are detected in front and behind the vehicle at thesame time, the warning beep will change in the following manner:* If an obstacle has been detec...
-
26 .1902-4. Using other drivi...1902-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 am■The intuitive parking assist can be operated whenThe "ENGINE START STOP" switch is in the IGNITION ON mode.■When the system malfunctions●If a malfunction occurs and no obstacles have...
-
27 .1912-4. Using other drivi...1912-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 am●In the following situations, the intuitive parking assist may not function correctly,possibly leading to an accident.* There is ice, snow or mud on the sensors. (Wiping ...
-
28 .1922-4. Using other drivi...1922-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 am■CertificationFor vehicles sold in the U.S.A.For vehicles sold in CanadaCAUTION■While drivingTo reduce the chance of injury in the event of an accident or sudden stop, keep theswitch ...
-
29 .1932-4. Using other drivi...1932-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amNOTICE■When using the intuitive parking assistIn the following situations, the system may not function correctly due to a sensormalfunction etc. Have the vehicle checked ...
-
30 .1942-4. Using other drivi...1942-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 amRear view monitor system∗∗: If equippedThe rear view monitor system assists the driver by displaying an image ofthe view behind the vehicle while re versing. The image is displayed i...
-
31 .1952-4. Using other drivi...1952-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 am■Displayed area■Rear view monitor system cameraThe area covered by the camera is limited.Objects which are close to either corner ofthe bumper or under the bumper cannot ...
-
32 .1962-4. Using other drivi...1962-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 am■Smear effect■Flicker effectWhen the camera is used under fluorescent lights, sodium lights, or mercury lightsetc., the lights and the illuminated areas may appear to flicker.CAUTION■...
-
33 .1972-4. Using other drivi...1972-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amCAUTION■Conditions which may affect the rear view monitor system●If the back of the vehicle is hit, the camera's position and mounting angle maychange. Contact your Lexus...
-
34 .1982-4. Using other drivi...1982-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 amAVS (Adaptive Variable Suspension System)∗∗: If equippedAVS controls the suspension according to the road and driving conditions.Selecting an optimum driving mode allows good vehicle...
-
35 .1992-4. Using other drivi...1992-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amDriving assist systemsTo help enhance driving safety and performance, the following systemsoperate automatically in response to various driving situations. Be aware,howev...
-
36 .2002-4. Using other drivi...2002-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 amWhen the Enhanced VSC/TRAC/hill-start assist control systems areoperatingIf the vehicle is in danger of slip-ping, rolling backwards whenstarting on an incline, or if the rearwheels (...
-
37 .2012-4. Using other drivi...2012-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amTo disable TRAC and/or Enhanced VSCIf the vehicle gets stuck in fresh snow or mud, TRAC and Enhanced VSCmay reduce power from the engine to the wheels. You may need to tu...
-
38 .2022-4. Using other drivi...2022-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 am■ Turning off both TRAC and Enhanced VSCPush and hold the button for morethan 3 seconds while the vehicle isstopped to turn off TRAC andEnhanced VSC.The slip off indicator light shoul...
-
39 .2032-4. Using other drivi...2032-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 am■Automatic reactivation of TRAC and Enhanced VSCTurning the "ENGINE START STOP" switch OFF after turning off the TRAC andEnhanced VSC systems will automatically re-enable...
-
40 .2042-4. Using other drivi...2042-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 am■Reduced effectiveness of EPSThe effectiveness of EPS is reduced to prevent the system from overheating whenthere is frequent steering input over an extended period of time. The steer...
-
41 .2052-4. Using other drivi...2052-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amCAUTION■If the hill-start assist control does not operate effectivelyDo not overly rely on the hill-start assist co ntrol. The hill-start assist control may notoperate ef...
-
42 .2062-4. Using other drivi...2062-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 amPCS (Pre-Collision System)∗∗: If equippedWhen the radar sensor detects possibility of a frontal collision. Pre-colli-sion systems such as the brakes and seat belts are automatically ...
-
43 .2072-4. Using other drivi...2072-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amDisabling pre-collision brakingPre-collision braking enabledPre-collision braking disabledThe "PCS" warning light flasheswhen pre-collision braking is dis-abled.Radar sen...
-
44 .2082-4. Using other drivi...2082-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 am■Obstacles not detectedThe sensor cannot detect plastic obstacles such as pylons. There may also be occa-sions when the radar sensor cannot detect pedestrians, animals, bicycles, moto...
-
45 .2092-4. Using other drivi...2092-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 am■Conditions that may trigger the system even if there is no possibility of collision●When there is an object by the roadside at the entrance to a curve●When passing an on...
-
46 .2102-4. Using other drivi...2102-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 am■CertificationFor vehicles sold in the U.S.A.FCC ID: HYQDNMWR005This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-lowing two conditions: (1) this dev...
-
47 .2112-4. Using other drivi...2112-4. Using other driving systems2When drivingGS_G_U (OM30C11U)June 30, 2011 8:14 amCAUTION■Handling the radar sensorObserve the following to ensure the pre-collision system can function effectively.●Keep the sensor and front grille clean at all times.Cl...
-
48 .2122-4. Using other drivi...2122-4. Using other driving systemsGS_G_U (OM30C11U)June 30, 2011 8:14 amCAUTION■Cautions regarding the assist contents of the systemBy means of alarms and brake control, the pre-collision system is intended to assistthe driver in avoiding collisions throu...
