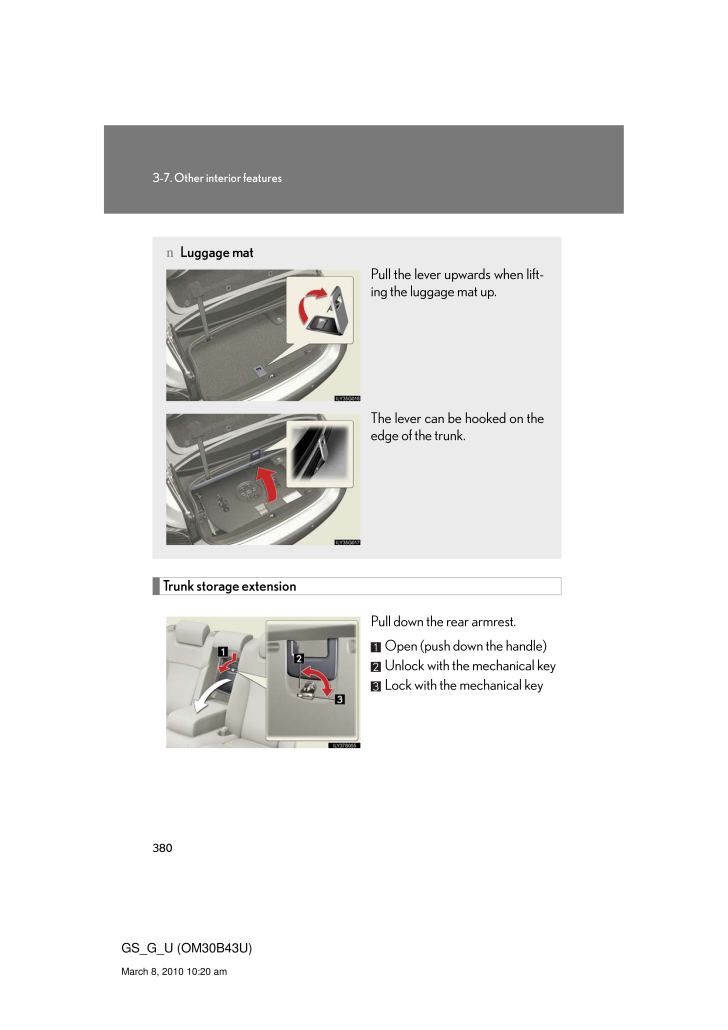

3803-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amTrunk storage extensionPull down the rear armrest.Open (push down the handle)Unlock with the mechanical keyLock with the mechanical keyn Luggage matPull the lever upwards when lift-ing the luggage mat up.The lever can be hooked on the edge of the trunk.
参考になったと評価
3人が参考になったと評価しています。
このマニュアルの目次
-
1 .366GS_G_U (OM30B43U)March...366GS_G_U (OM30B43U)March 8, 2010 10:20 am3-7. Other interior featuresSun visorsForward position: Flip down.Side position: Flip down, unhook, and swing to the side.Side extender: Place in side position, then slide back-wards.
-
2 .3673-7. Other interior fe...3673-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amVanity mirrorsSlide the cover.The light turns on when the cover is opened.
-
3 .3683-7. Other interior fe...3683-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amClocknThe clock is displayed whenThe "ENGINE START STOP" switch is in ACCESSORY or IGNITION ON mode.nWhen the 12 volt battery is disconnectedThe time display will automatically be set to...
-
4 .3693-7. Other interior fe...3693-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amOutside temperature displaynThe outside temperature is displayed whenThe "ENGINE START STOP" switch is in IGNITION ON mode.nWhen "--" or "E" is displayedThe system may ...
-
5 .3703-7. Other interior fe...3703-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amAshtraysCAUTIONnWhen not in useKeep the ashtray closed. Injuries may result in the event of sudden braking, sudden swerving or an accident.nTo prevent firelFully extinguish matches and...
-
6 .3713-7. Other interior fe...3713-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amCigarette lighternThe cigarette lighter can be used whenThe "ENGINE START STOP" switch is in ACCESSORY or IGNITION ON mode.CAUTIONnTo avoid burns or fireslDo not touch ...
-
7 .3723-7. Other interior fe...3723-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amPower outletnThe power outlet can be used whenThe "ENGINE START STOP" switch is in ACCESSORY or IGNITION ON mode.NOTICEnTo avoid damaging the power outletClose the power outlet lid when ...
-
8 .3733-7. Other interior fe...3733-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amSeat heaters/ventilators∗nThe seat heaters/ventilators can be used whenThe "ENGINE START STOP" switch is in IGNITION ON mode.nWhen not in useSet the dial to "0". The in...
-
9 .3743-7. Other interior fe...3743-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amCAUTIONnBurnslUse caution when seating the following persons in a seat with the seat heater on to avoid the possibility of burns:* Babies, small children, the elderly, the sick and the d...
-
10 .3753-7. Other interior fe...3753-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amArmrestNOTICEnTo prevent damage to the armrestDo not place too much strain on the armrest.Pull the armrest down for use.
-
11 .3763-7. Other interior fe...3763-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amRear sunshade∗nThe rear sunshade can be used whenThe "ENGINE START STOP" switch is in IGNITION ON mode.nReverse operation featureTo ensure adequate rear visibility, the sunshade automati...
-
12 .3773-7. Other interior fe...3773-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amnAfter the "ENGINE START STOP" switch is turned to OFFThe rear sunshade can be raised and lowered for approximately 1 minute.nCustomization that can be configured at Le...
-
13 .3783-7. Other interior fe...3783-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amFloor matsCAUTIONnWhen inserting the floor mat Observe the following precautions. Failure to do so may result in the floor mat slipping and interfering with the move-ment of the pedals d...
-
14 .3793-7. Other interior fe...3793-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amTrunk featuresn Cargo hooksCargo hooks are provided for securing loose items.n Shopping bag hooksn First-aid kit storage beltLoosenTighten
-
15 .3803-7. Other interior fe...3803-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amTrunk storage extensionPull down the rear armrest.Open (push down the handle)Unlock with the mechanical keyLock with the mechanical keyn Luggage matPull the lever upwards when lift-ing t...
-
16 .3813-7. Other interior fe...3813-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amCAUTIONnWhile drivinglTo avoid injury, always return the cargo hooks to their positions when they are not in use.lAlways keep the trunk storage extension door closed to...
-
17 .3823-7. Other interior fe...3823-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amGarage door openerThe garage door opener (HomeLink® Universal Transceiver) is manufactured under license from HomeLink®.Programming the HomeLink® (for U.S.A. owners)The HomeLink® compati...
-
18 .3833-7. Other interior fe...3833-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amPress and hold one of the HomeLink® buttons and the trans-mitter button. When the HomeLink® indicator light changes from a slow to a rapid flash, you can release both b...
-
19 .3843-7. Other interior fe...3843-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amn Programming a Rolling Code systemIf your device is Rolling Code equipped, follow the steps under the heading "Programming the HomeLink®" before proceeding with the steps listed below.L...
-
20 .3853-7. Other interior fe...3853-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amTest the operation of the HomeLink® by pressing the newly pro-grammed button. Check to see if the gate/device operates cor-rectly.Repeat the steps above to program anot...
-
21 .3863-7. Other interior fe...3863-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amErasing the entire HomeLink® memory (all three programs)Press and hold the 2 outside but-tons for 10 seconds until the indi-cator light flashes.If you sell your vehicle, be sure to erase...
-
22 .3873-7. Other interior fe...3873-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amCAUTIONnWhen programming a garage door or other remote control devicesThe garage door on other devices may operate, so ensure people and objects are out of danger to pr...
-
23 .3883-7. Other interior fe...3883-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amCompassThe compass on the inside rear view mirror indicates the direction in which the vehicle is heading.n OperationTo turn the compass on or off, press "AUTO" for 3 seconds.n Displays ...
-
24 .3893-7. Other interior fe...3893-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amCalibrating the compassThe direction display deviates from the true direction determined by the earth's magnetic field. The amount of deviation varies according to th...
-
25 .3903-7. Other interior fe...3903-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amWait a few seconds until the compass direction is displayed.The calibration is complete.n Circling calibrationIf "CAL" appears on the display, drive the vehicle at 5 mph (8 km/h) or less...
-
26 .3913-7. Other interior fe...3913-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amCAUTIONnWhile drivingDo not adjust the display. Be sure to adjust the display only when the vehicle is stopped.nWhen doing the circling calibrationBe sure to secure a w...
-
27 .3923-7. Other interior fe...3923-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amLexus Link System∗∗: If equippedThe Lexus Link System is a communication service that uses Global Posi-tioning System (GPS) data and cellular service to provide you with safety, security...
-
28 .3933-7. Other interior fe...3933-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 am Safety information for the Lexus Link SystemImportant! Read this information before using the Lexus Link System.n Exposure to radio frequency signalsThe Lexus Link Sys...
-
29 .3943-7. Other interior fe...3943-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 am Indicator and warning lightsOperation indicator lightIf your subscription has expired, the operation indicator light will go off.Warning lightIf the warning light (red light) comes on, ...
-
30 .3953-7. Other interior fe...3953-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 am Stolen vehicle location assistanceIf your vehicle is stolen, call the Lexus Link Call Center at 1-800-25-LEXUS (1-800-255-3987) (toll-free) and select the option for ...
-
31 .3963-7. Other interior fe...3963-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amAdvisor recordn Recording a conversation with an advisorPress the button to record a conversation. To stop recording, press the button again.* Up to 2 minutes of recording time is av...
-
32 .3973-7. Other interior fe...3973-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amVoice recognition error message:*"Pardon" The system responds with this message if the system does not recognize your voice command proper ly. Say the command slowly ag...
-
33 .3983-7. Other interior fe...3983-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amWhen finished, say "Dial". The system responds with "Dialing" and your call is placed.If you have problems storing a number using the continuous number method, you can store numbers one ...
-
34 .3993-7. Other interior fe...3993-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 aml How to place a call using a stored nametagPress the button. When the system responds with "Lexus Link ready", say "Call".When the system responds with "Nametag, ple...
-
35 .4003-7. Other interior fe...4003-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amn Accessing voicemail and sending number tones to an automated phone systemYou can access a voicemail system and respond to a number request from an automated phone system. When you rec...
-
36 .4013-7. Other interior fe...4013-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amn Verifying remaining units (minutes)To verify remaining minutesPress the button. When the system responds with "Lexus Link ready", say "Units".When the system respon...
-
37 .4023-7. Other interior fe...4023-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amnSpeech recognition informationThe Lexus Link speech recognition systems use speech technology that is designed to understand a wide range of speakers of American English. However, the t...
-
38 .4033-7. Other interior fe...4033-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amlTips for entering a phone number using the "Dial" and "Store" commands* You do not need to say "Dial", "Store" or "Verify" after the phone number.* If the phone number...
-
