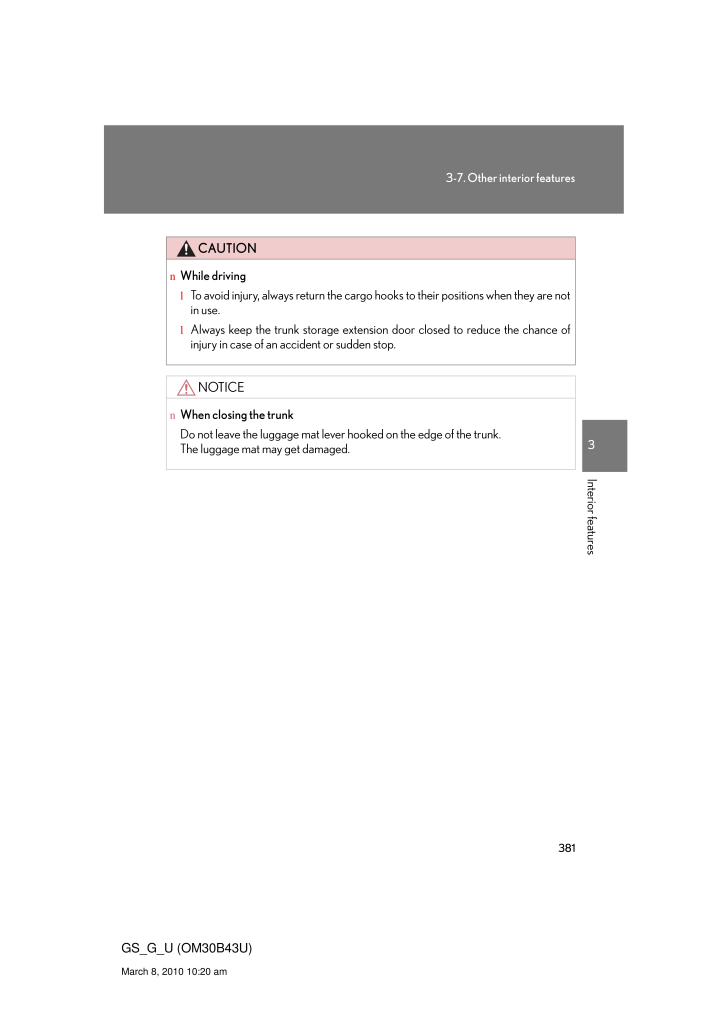

3813-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amCAUTIONnWhile drivinglTo avoid injury, always return the cargo hooks to their positions when they are not in use.lAlways keep the trunk storage extension door closed to reduce the chance of injury in case of an accident or sudden stop.NOTICEnWhen closing the trunkDo not leave the luggage mat lever hooked on the edge of the trunk. The luggage mat may get damaged.
