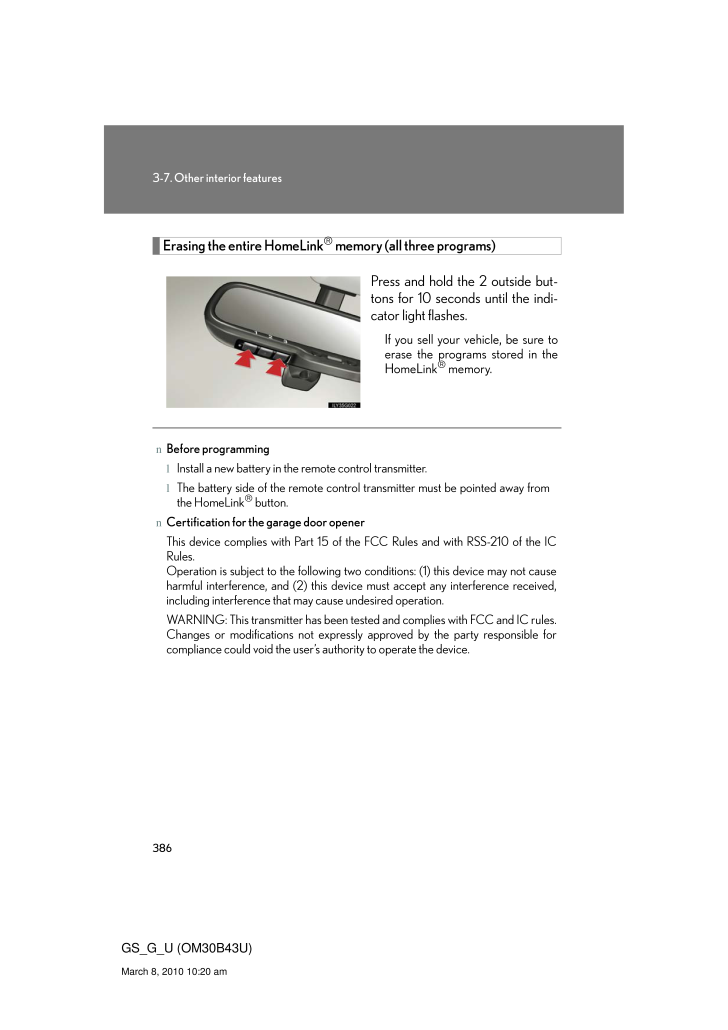

3863-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amErasing the entire HomeLink® memory (all three programs)Press and hold the 2 outside but-tons for 10 seconds until the indi-cator light flashes.If you sell your vehicle, be sure to erase the programs stored in the HomeLink® memory.nBefore programminglInstall a new battery in the remote control transmitter.lThe battery side of the remote control transmitter must be pointed away from the HomeLink® button.nCertification for the garage door openerThis device complies with Part 15 of the FCC Rules and with RSS-210 of the IC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.WARNING: This transmitter has been tested and complies with FCC and IC rules. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the device.
参考になったと評価
3人が参考になったと評価しています。
このマニュアルの目次
-
1 .366GS_G_U (OM30B43U)March...366GS_G_U (OM30B43U)March 8, 2010 10:20 am3-7. Other interior featuresSun visorsForward position: Flip down.Side position: Flip down, unhook, and swing to the side.Side extender: Place in side position, then slide back-wards.
-
2 .3673-7. Other interior fe...3673-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amVanity mirrorsSlide the cover.The light turns on when the cover is opened.
-
3 .3683-7. Other interior fe...3683-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amClocknThe clock is displayed whenThe "ENGINE START STOP" switch is in ACCESSORY or IGNITION ON mode.nWhen the 12 volt battery is disconnectedThe time display will automatically be set to...
-
4 .3693-7. Other interior fe...3693-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amOutside temperature displaynThe outside temperature is displayed whenThe "ENGINE START STOP" switch is in IGNITION ON mode.nWhen "--" or "E" is displayedThe system may ...
-
5 .3703-7. Other interior fe...3703-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amAshtraysCAUTIONnWhen not in useKeep the ashtray closed. Injuries may result in the event of sudden braking, sudden swerving or an accident.nTo prevent firelFully extinguish matches and...
-
6 .3713-7. Other interior fe...3713-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amCigarette lighternThe cigarette lighter can be used whenThe "ENGINE START STOP" switch is in ACCESSORY or IGNITION ON mode.CAUTIONnTo avoid burns or fireslDo not touch ...
-
7 .3723-7. Other interior fe...3723-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amPower outletnThe power outlet can be used whenThe "ENGINE START STOP" switch is in ACCESSORY or IGNITION ON mode.NOTICEnTo avoid damaging the power outletClose the power outlet lid when ...
-
8 .3733-7. Other interior fe...3733-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amSeat heaters/ventilators∗nThe seat heaters/ventilators can be used whenThe "ENGINE START STOP" switch is in IGNITION ON mode.nWhen not in useSet the dial to "0". The in...
-
9 .3743-7. Other interior fe...3743-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amCAUTIONnBurnslUse caution when seating the following persons in a seat with the seat heater on to avoid the possibility of burns:* Babies, small children, the elderly, the sick and the d...
-
10 .3753-7. Other interior fe...3753-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amArmrestNOTICEnTo prevent damage to the armrestDo not place too much strain on the armrest.Pull the armrest down for use.
-
11 .3763-7. Other interior fe...3763-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amRear sunshade∗nThe rear sunshade can be used whenThe "ENGINE START STOP" switch is in IGNITION ON mode.nReverse operation featureTo ensure adequate rear visibility, the sunshade automati...
-
12 .3773-7. Other interior fe...3773-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amnAfter the "ENGINE START STOP" switch is turned to OFFThe rear sunshade can be raised and lowered for approximately 1 minute.nCustomization that can be configured at Le...
-
13 .3783-7. Other interior fe...3783-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amFloor matsCAUTIONnWhen inserting the floor mat Observe the following precautions. Failure to do so may result in the floor mat slipping and interfering with the move-ment of the pedals d...
-
14 .3793-7. Other interior fe...3793-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amTrunk featuresn Cargo hooksCargo hooks are provided for securing loose items.n Shopping bag hooksn First-aid kit storage beltLoosenTighten
-
15 .3803-7. Other interior fe...3803-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amTrunk storage extensionPull down the rear armrest.Open (push down the handle)Unlock with the mechanical keyLock with the mechanical keyn Luggage matPull the lever upwards when lift-ing t...
-
16 .3813-7. Other interior fe...3813-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amCAUTIONnWhile drivinglTo avoid injury, always return the cargo hooks to their positions when they are not in use.lAlways keep the trunk storage extension door closed to...
-
17 .3823-7. Other interior fe...3823-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amGarage door openerThe garage door opener (HomeLink® Universal Transceiver) is manufactured under license from HomeLink®.Programming the HomeLink® (for U.S.A. owners)The HomeLink® compati...
-
18 .3833-7. Other interior fe...3833-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amPress and hold one of the HomeLink® buttons and the trans-mitter button. When the HomeLink® indicator light changes from a slow to a rapid flash, you can release both b...
-
19 .3843-7. Other interior fe...3843-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amn Programming a Rolling Code systemIf your device is Rolling Code equipped, follow the steps under the heading "Programming the HomeLink®" before proceeding with the steps listed below.L...
-
20 .3853-7. Other interior fe...3853-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amTest the operation of the HomeLink® by pressing the newly pro-grammed button. Check to see if the gate/device operates cor-rectly.Repeat the steps above to program anot...
-
21 .3863-7. Other interior fe...3863-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amErasing the entire HomeLink® memory (all three programs)Press and hold the 2 outside but-tons for 10 seconds until the indi-cator light flashes.If you sell your vehicle, be sure to erase...
-
22 .3873-7. Other interior fe...3873-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amCAUTIONnWhen programming a garage door or other remote control devicesThe garage door on other devices may operate, so ensure people and objects are out of danger to pr...
-
23 .3883-7. Other interior fe...3883-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amCompassThe compass on the inside rear view mirror indicates the direction in which the vehicle is heading.n OperationTo turn the compass on or off, press "AUTO" for 3 seconds.n Displays ...
-
24 .3893-7. Other interior fe...3893-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amCalibrating the compassThe direction display deviates from the true direction determined by the earth's magnetic field. The amount of deviation varies according to th...
-
25 .3903-7. Other interior fe...3903-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amWait a few seconds until the compass direction is displayed.The calibration is complete.n Circling calibrationIf "CAL" appears on the display, drive the vehicle at 5 mph (8 km/h) or less...
-
26 .3913-7. Other interior fe...3913-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amCAUTIONnWhile drivingDo not adjust the display. Be sure to adjust the display only when the vehicle is stopped.nWhen doing the circling calibrationBe sure to secure a w...
-
27 .3923-7. Other interior fe...3923-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amLexus Link System∗∗: If equippedThe Lexus Link System is a communication service that uses Global Posi-tioning System (GPS) data and cellular service to provide you with safety, security...
-
28 .3933-7. Other interior fe...3933-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 am Safety information for the Lexus Link SystemImportant! Read this information before using the Lexus Link System.n Exposure to radio frequency signalsThe Lexus Link Sys...
-
29 .3943-7. Other interior fe...3943-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 am Indicator and warning lightsOperation indicator lightIf your subscription has expired, the operation indicator light will go off.Warning lightIf the warning light (red light) comes on, ...
-
30 .3953-7. Other interior fe...3953-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 am Stolen vehicle location assistanceIf your vehicle is stolen, call the Lexus Link Call Center at 1-800-25-LEXUS (1-800-255-3987) (toll-free) and select the option for ...
-
31 .3963-7. Other interior fe...3963-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amAdvisor recordn Recording a conversation with an advisorPress the button to record a conversation. To stop recording, press the button again.* Up to 2 minutes of recording time is av...
-
32 .3973-7. Other interior fe...3973-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amVoice recognition error message:*"Pardon" The system responds with this message if the system does not recognize your voice command proper ly. Say the command slowly ag...
-
33 .3983-7. Other interior fe...3983-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amWhen finished, say "Dial". The system responds with "Dialing" and your call is placed.If you have problems storing a number using the continuous number method, you can store numbers one ...
-
34 .3993-7. Other interior fe...3993-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 aml How to place a call using a stored nametagPress the button. When the system responds with "Lexus Link ready", say "Call".When the system responds with "Nametag, ple...
-
35 .4003-7. Other interior fe...4003-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amn Accessing voicemail and sending number tones to an automated phone systemYou can access a voicemail system and respond to a number request from an automated phone system. When you rec...
-
36 .4013-7. Other interior fe...4013-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amn Verifying remaining units (minutes)To verify remaining minutesPress the button. When the system responds with "Lexus Link ready", say "Units".When the system respon...
-
37 .4023-7. Other interior fe...4023-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amnSpeech recognition informationThe Lexus Link speech recognition systems use speech technology that is designed to understand a wide range of speakers of American English. However, the t...
-
38 .4033-7. Other interior fe...4033-7. Other interior features3Interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amlTips for entering a phone number using the "Dial" and "Store" commands* You do not need to say "Dial", "Store" or "Verify" after the phone number.* If the phone number...
-
39 .4043-7. Other interior fe...4043-7. Other interior featuresGS_G_U (OM30B43U)March 8, 2010 10:20 amnCertification for the Lexus Link SystemNOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-lowing two conditions: (1) this device may not cause har...
