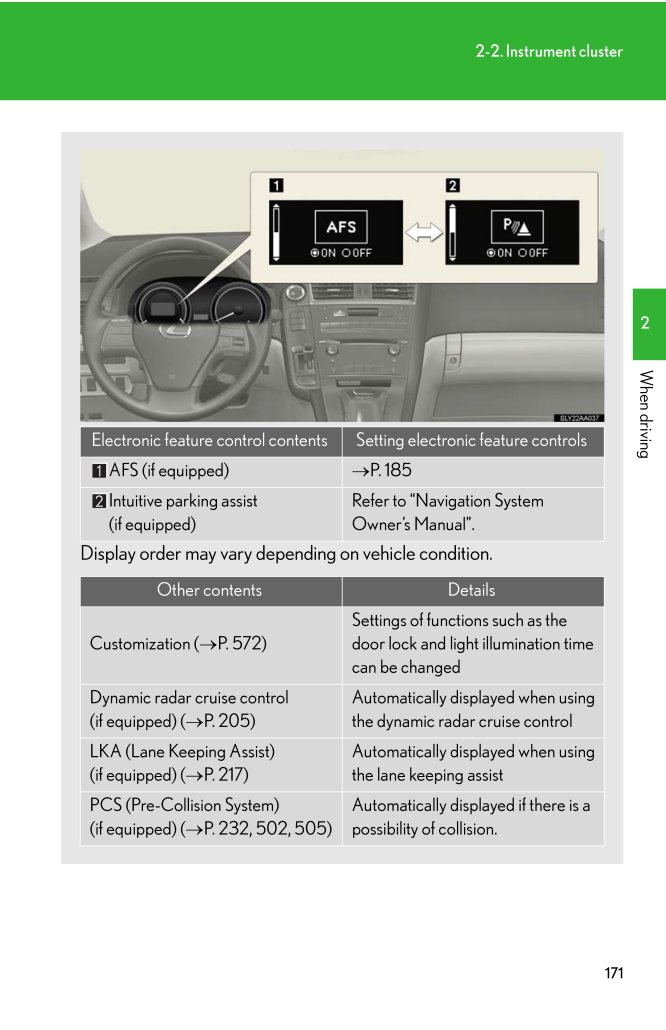

1712-2. Instrument cluster2When drivingDisplay order may vary depending on vehicle condition.Electronic feature control contents Setting electronic feature controlsAFS (if equipped) →P. 185Intuitive parking assist (if equipped)Refer to "Navigation System Owner's Manual".Other contents Details Customization (→P. 572)Settings of functions such as the door lock and light illumination time can be changedDynamic radar cruise control (if equipped) (→P. 205)Automatically displayed when using the dynamic radar cruise controlLKA (Lane Keeping Assist) (if equipped) (→P. 217)Automatically displayed when using the lane keeping assistPCS (Pre-Collision System) (if equipped) (→P. 232, 502, 505)Automatically displayed if there is a possibility of collision.
