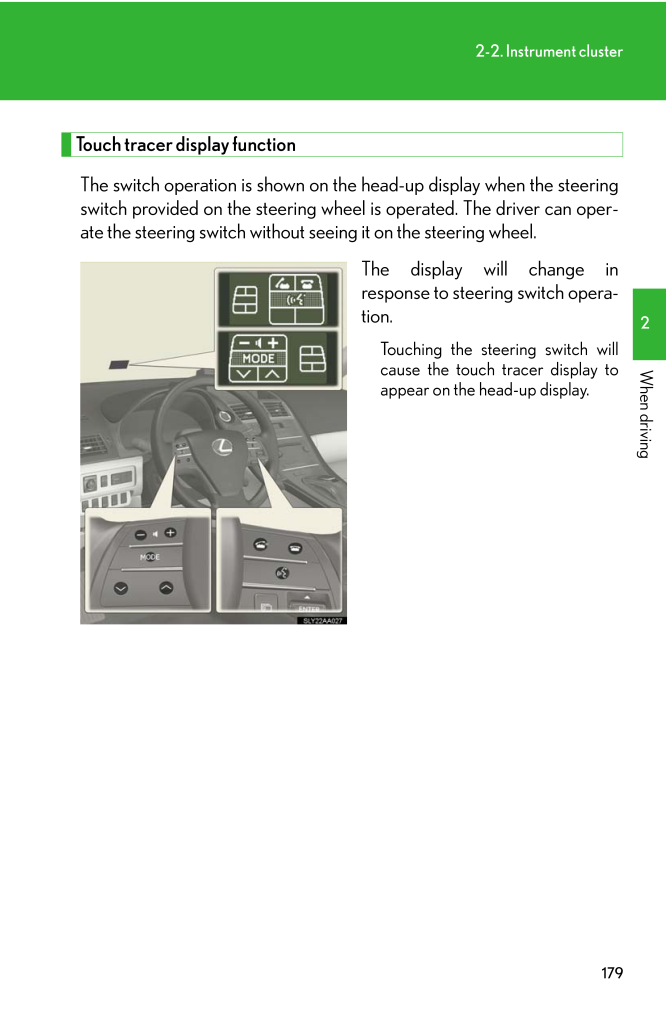

1792-2. Instrument cluster2When drivingTouch tracer display functionThe switch operation is shown on th e head-up display when the steering switch provided on the steering wheel is operated. The driver can oper-ate the steering switch without s eeing it on the steering wheel.The display will change in response to steering switch opera-tion.Touching the steering switch will cause the touch tracer display to appear on the head-up display.
参考になったと評価
3人が参考になったと評価しています。
このマニュアルの目次
-
1 .1622-2. Instrument cluste...1622-2. Instrument clusterGauges and metersThe following gauges and meters and display illuminate when the "POWER" switch is in ON mode:Hybrid System IndicatorDisplays hybrid system output or regeneration levelFuel gaugeDisplays the quantity of fuel remain...
-
2 .1632-2. Instrument cluste...1632-2. Instrument cluster2When drivingChanging the displaySwitches between odometer and trip meter displays. When the trip meter is displayed, pressing and holding the button will reset the trip meter.Instrument panel light controlThe brightness of the in...
-
3 .1642-2. Instrument cluste...1642-2. Instrument clusternLimitations of brightness adjustmentThe brightness of the instrument panel ligh ts is automatically adjusted based on the light sensor detecting how bright the surroundings are. However, if the instrument panel brightness has bee...
-
4 .1652-2. Instrument cluste...1652-2. Instrument cluster2When drivingIndicators and warning lightsThe indicator and warning lights on the instrument cluster and center panel inform the driver of the status of the vehicle's various systems. Instrument clusterCenter panel (without a navi...
-
5 .1662-2. Instrument cluste...1662-2. Instrument clusternIndicatorsThe indicators inform the driver of the operating state of the vehi -cle's various systems. Turn signal indicator (→P. 162)"ECO MODE" indicator (→P. 158)(U.S.A.)Headlight indicator (→P. 183)"PWR MODE" indicator (→P. ...
-
6 .1672-2. Instrument cluste...1672-2. Instrument cluster2When driving*1:These lights turn on when the "POWER" switch is turned to the ON mode to indicate that a system check is be ing performed. They will turn off after the hybrid system is on, or after a fe w seconds. There may be a m...
-
7 .1682-2. Instrument cluste...1682-2. Instrument clusterCAUTIONnIf a safety system warning light does not come on Should a safety system light such as the ABS and SRS airbag warning light not come on when you start the hybrid system , this could mean that these systems are not availab...
-
8 .1692-2. Instrument cluste...1692-2. Instrument cluster2When drivingMulti-information displayThe multi-information display presents the driver with a variety of driving-related data including the current outside air temperature. nMulti-information switchesMenu switchChanges modes to e...
-
9 .1702-2. Instrument cluste...1702-2. Instrument clusternDisplay contentsTrip information contents Switching display itemsEnergy monitorPress the "ENTER" switch upward or downward.Total distance/Total average fuel consumptionCurrent fuel consumption/Aver-age fuel consumption after refu...
-
10 .1712-2. Instrument cluste...1712-2. Instrument cluster2When drivingDisplay order may vary depending on vehicle condition.Electronic feature control contents Setting electronic feature controlsAFS (if equipped) →P. 185Intuitive parking assist (if equipped)Refer to "Navigation System ...
-
11 .1722-2. Instrument cluste...1722-2. Instrument clusterTrip informationnEnergy monitorDisplays the status of the hybrid system ( →P. 32)nTotal distance/Total average fuel consumptionDisplays the total distance and aver age fuel consumption since the last reset. Press the "ENTER" switc...
-
12 .1732-2. Instrument cluste...1732-2. Instrument cluster2When drivingnAverage vehicle speedDisplays the average vehicle speed since the function was resetThe function can be reset by pushing the "ENTER" switch for longer than 1 second when the average vehicle speed is displayed.nOutsi...
-
13 .1742-2. Instrument cluste...1742-2. Instrument clusternOutside temperature displayIn the following situations, the correct outside temperature may not be displayed, or the display may take longer than normal to change.lWhen stopped, or driving at low speeds (less than 15 mph [25 km/h...
-
14 .1752-2. Instrument cluste...1752-2. Instrument cluster2When drivingHead-up display∗∗: If equippedThe head-up display can be used to project vehicle speed and other infor -mation onto the windshield.Head-up displayDisplay brightness will change automatically according to the brightnes...
-
15 .1762-2. Instrument cluste...1762-2. Instrument clusternHead-up display contentsIn addition to the vehicle speed d isplay (standard display), the follow -ing information will be displayed:lVehicle speed display (standard display)Displays the vehicle speed. lAudio displayDisplays au...
-
16 .1772-2. Instrument cluste...1772-2. Instrument cluster2When drivingHUD (Head-up Display) main switchPressing the switch turns the head-up display on/off and changes the vehicle speed display units as fol-lows:Vehicles sold in the U.S.A. OFF → ON (mph) → ON (km/h) → OFFExcept vehicle...
-
17 .1782-2. Instrument cluste...1782-2. Instrument clusterTurn-by-turn navigation switchPressing the switch turns the turn-by-turn navigation on/off, when the head-up display is on.The switch indicator illuminates while the turn-by-turn navigation is active.Display adjustmentThe display ...
-
18 .1792-2. Instrument cluste...1792-2. Instrument cluster2When drivingTouch tracer display functionThe switch operation is shown on th e head-up display when the steering switch provided on the steering wheel is operated. The driver can oper-ate the steering switch without s eeing it on...
-
19 .1802-2. Instrument cluste...1802-2. Instrument clusternTouch tracer displayOnly the switch that is being operated is highlighted, and thus, the driver can perceive which button is being operated.The applicable switch displayed on the head-up display will change in response to the swi...
-
20 .1812-2. Instrument cluste...1812-2. Instrument cluster2When drivingDisplay customizationThe touch tracer display and audio disp lay can be hidden (not display) if desired.nTouch tracer displayPressing and holding the HUD (Head-up Display) main switch for more than 2 seconds changes t...
-
21 .nBrightness of the head-u...nBrightness of the head-up displayThe headlight control sensor detects the brightness of the area surrounding the head-up display and adjusts th e brightness accordingly. (→P. 186 )nHead-up displayThe head-up display may seem dark and hard to see when vie...
