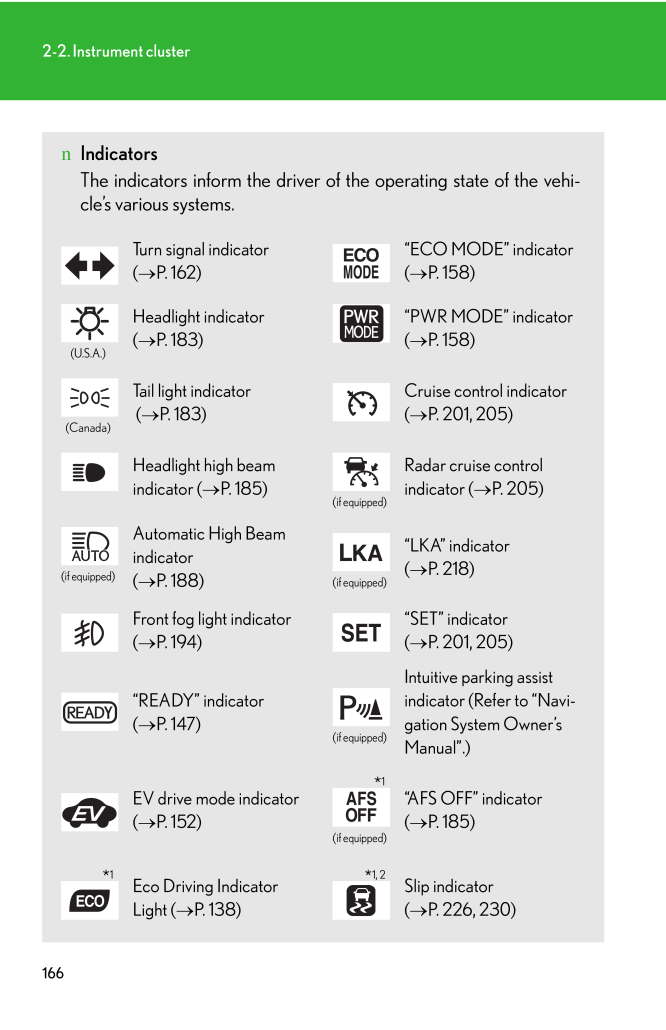

1662-2. Instrument clusternIndicatorsThe indicators inform the driver of the operating state of the vehi -cle's various systems. Turn signal indicator (→P. 162)"ECO MODE" indicator (→P. 158)(U.S.A.)Headlight indicator (→P. 183)"PWR MODE" indicator (→P. 158)(Canada)Tail light indicator (→P. 183)Cruise control indicator (→P. 201, 205)Headlight high beam indicator (→P. 185)(if equipped )Radar cruise control indicator (→P. 205) (if equipped )Automatic High Beam indicator (→P. 188) (if equipped )"LKA" indicator (→P. 218) Front fog light indicator (→P. 194)"SET" indicator (→P. 201, 205)"READY" indicator (→P. 147)(if equipped )Intuitive parking assist indicator (Refer to "Navi-gation System Owner's Manual".)EV drive mode indicator (→P. 152)(if equipped )"AFS OFF" indicator (→P. 185)Eco Driving Indicator Light (→P. 138)Slip indicator (→P. 226, 230)*1*1*1, 2
