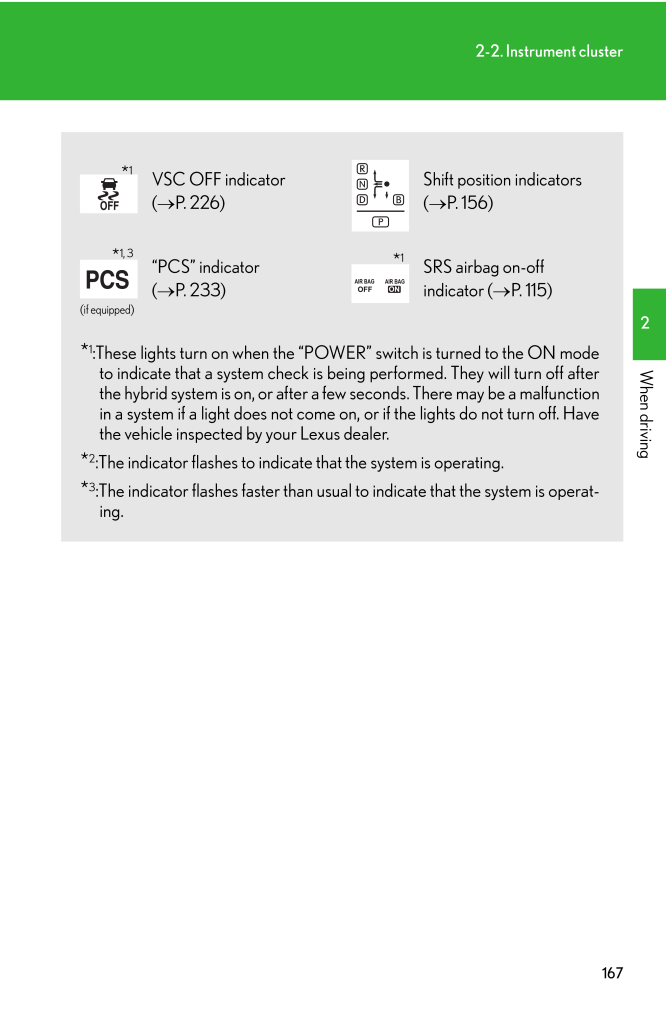

1672-2. Instrument cluster2When driving*1:These lights turn on when the "POWER" switch is turned to the ON mode to indicate that a system check is be ing performed. They will turn off after the hybrid system is on, or after a fe w seconds. There may be a malfunction in a system if a light does not come on, or if the lights do not turn off. Have the vehicle inspected by your Lexus dealer.*2:The indicator flashes to indicat e that the system is operating.*3:The indicator flashes faster than usua l to indicate that the system is operat -ing.VSC OFF indicator (→P. 226) Shift position indicators (→P. 156)(if equipped )"PCS" indicator (→P. 233)SRS airbag on-off indicator (→P. 115) *1*1, 3*1
