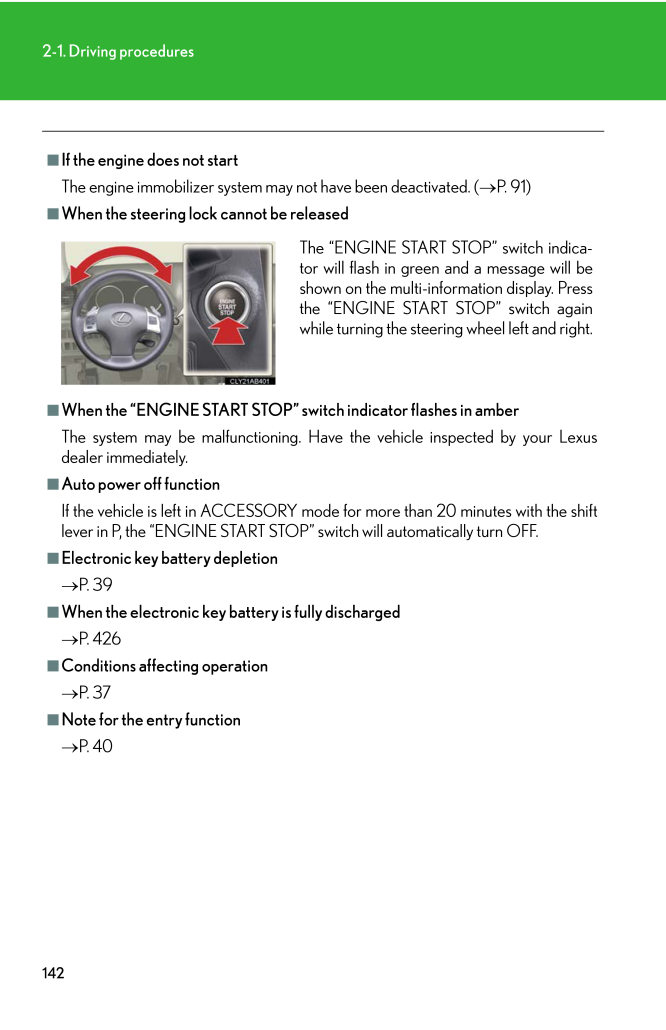

1422-1. Driving procedures■If the engine does not startThe engine immobilizer system may not have been deactivated. ( →P. 91)■When the steering lock cannot be released■When the "ENGINE START STOP" switch indicator flashes in amberThe system may be malfunctioning. Have the vehicle inspected by your Lexusdealer immediately.■Auto power off functionIf the vehicle is left in ACCESSORY mode for more than 20 minutes with the shiftlever in P, the "ENGINE START STOP" switch will automatically turn OFF. ■Electronic key battery depletion→P. 39■When the electronic key battery is fully discharged→P. 426■Conditions affecting operation→P. 37■Note for the entry function→P. 40The "ENGINE START STOP" switch indica-tor will flash in green and a message will beshown on the multi-information display. Pressthe "ENGINE START STOP" switch againwhile turning the steering wheel left and right.
