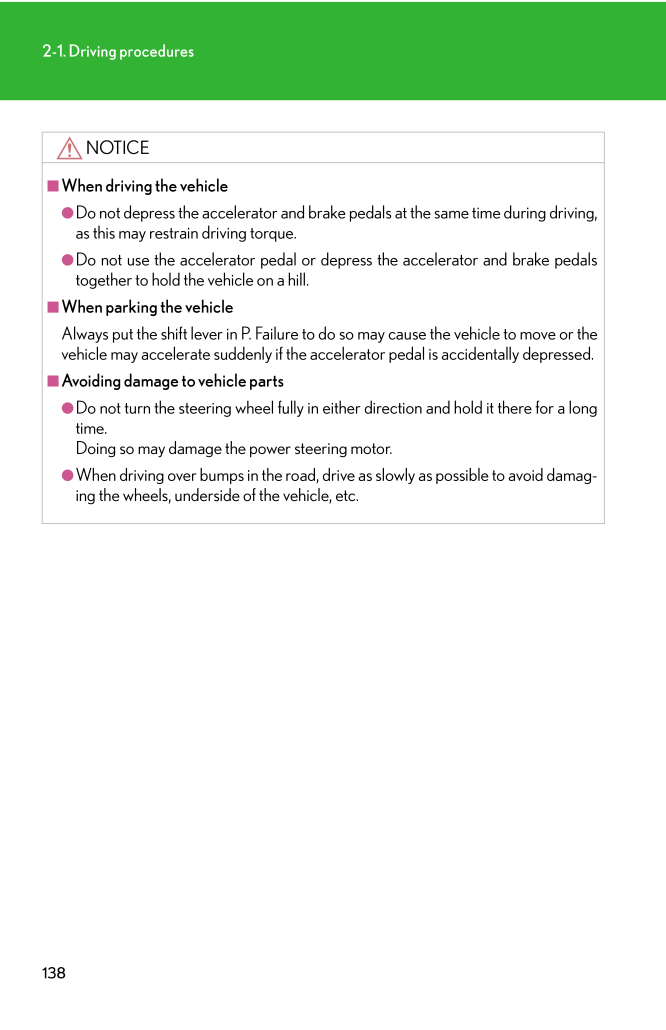

1382-1. Driving proceduresNOTICE■When driving the vehicle●Do not depress the accelerator and brake pe dals at the same time during driving,as this may restrain driving torque.●Do not use the accelerator pedal or depress the accelerator and brake pedalstogether to hold the vehicle on a hill.■When parking the vehicleAlways put the shift lever in P. Failure to do so may cause the vehicle to move or thevehicle may accelerate suddenly if the accel erator pedal is accidentally depressed.■Avoiding damage to vehicle parts●Do not turn the steering wheel fully in either direction and hold it there for a longtime. Doing so may damage the power steering motor.●When driving over bumps in the road, drive as slowly as possible to avoid damag-ing the wheels, underside of the vehicle, etc.
参考になったと評価
3人が参考になったと評価しています。
このマニュアルの目次
-
1 .1302-1. Driving procedure...1302-1. Driving proceduresDriving the vehicleStarting on a steep uphillFirmly set the parking brake and shift the shift lever to D. Gently depress the accelerator pedal. Release the parking brake. The following procedures should be observed to ensure safe ...
-
2 .1312-1. Driving procedure...1312-1. Driving procedures2When driving■Starting off on a hillHill-start assist control will operate. ( →P. 191)■Driving in the rain●Drive carefully when it is raining, becaus e visibility will be reduced, the windowsmay become fogged-up, and the road will...
-
3 .1322-1. Driving procedure...1322-1. Driving procedures■Operating your vehicle in a foreign countryComply with the relevant vehicle registration laws and confirm the availability of thecorrect fuel. (→P. 513)CAUTION■When starting the vehicleAlways keep your foot on the brake pedal whi...
-
4 .1332-1. Driving procedure...1332-1. Driving procedures2When drivingCAUTION●Do not shift the shift lever to P while the vehicle is moving.Doing so can damage the transmission and may result in a loss of vehicle control.●Do not shift the shift lever to R while the vehicle is moving for...
-
5 .1342-1. Driving procedure...1342-1. Driving proceduresCAUTION●Always check that all passengers' arms, heads or other parts of their bodies arenot outside the vehicle, as this may result in death or serious injury.●Do not drive the vehicle off-road.This is not a AWD vehicle designed f...
-
6 .1352-1. Driving procedure...1352-1. Driving procedures2When drivingCAUTION■When shifting the shift leverBe careful not to shift the shift lever with the accelerator pedal depressed.This may lead to unexpected rapid acceleration of the vehicle that may cause anaccident and result in d...
-
7 .1362-1. Driving procedure...1362-1. Driving proceduresCAUTION■When the vehicle is parked●Do not leave glasses, cigarett e lighters, spray cans, or soft drink cans in the vehi-cle when it is in the sun.Doing so may result in the following.* Gas may leak from a cigarette lighter or sp...
-
8 .1372-1. Driving procedure...1372-1. Driving procedures2When drivingCAUTION■When taking a nap in the vehicleAlways turn the engine off. Otherwise, you may accidentally move the shift lever ordepress the accelerator pedal, which could cause an accident or fire due to engineoverheating....
-
9 .1382-1. Driving procedure...1382-1. Driving proceduresNOTICE■When driving the vehicle●Do not depress the accelerator and brake pe dals at the same time during driving,as this may restrain driving torque.●Do not use the accelerator pedal or depress the accelerator and brake pedalstoge...
-
10 .1392-1. Driving procedure...1392-1. Driving procedures2When drivingNOTICE■If you get a flat tire while driving A flat or damaged tire may cause the following situations. Hold the steering wheelfirmly and gradually press the brak e pedal to slow down the vehicle.●It may be difficult t...
-
11 .1402-1. Driving procedure...1402-1. Driving proceduresEngine (ignition) switchPerforming the following operations when carrying the electronic key onyour person starts the engine or changes "ENGINE START STOP" switchmodes.■Starting the engineCheck that the parking brake is set. Check...
-
12 .1412-1. Driving procedure...1412-1. Driving procedures2When driving■Changing "ENGINE START STOP" switch modeModes can be changed by pressing the "ENGINE START STOP"switch with the brake pedal releas ed. (The mode changes each timethe switch is pressed.)OFF*The emergency flashers can ...
-
13 .1422-1. Driving procedure...1422-1. Driving procedures■If the engine does not startThe engine immobilizer system may not have been deactivated. ( →P. 91)■When the steering lock cannot be released■When the "ENGINE START STOP" switch indicator flashes in amberThe system may be malfunct...
-
14 .1432-1. Driving procedure...1432-1. Driving procedures2When drivingCAUTION■When starting the engineAlways start the engine while sitting in the driver's seat. Do not press the accelera-tor while starting the engine under any circumstances.Doing so may cause an accident resu lting in ...
-
15 .1442-1. Driving procedure...1442-1. Driving proceduresAutomatic transmissionSelect a shift position appropriate for the driving conditions.■Shifting the shift leverWhile the "ENGINE START STOP" switch is in IGNITIONON mode, depress the brake pedal and move the shift lever. ■Shift pos...
-
16 .1452-1. Driving procedure...1452-1. Driving procedures2When drivingSelecting shift ranges in the D positionTo drive using temporary shift range se lection, operate the "-" shift paddleswitch. The shift range can then be selected by operating the "-" and "+"shift paddle switches. Chan...
-
17 .1462-1. Driving procedure...1462-1. Driving procedures■Shift ranges and their functionsA lower shift range will provide greater engine braking force than a higher shiftrange.Shift range Function6Automatically selecting gears between 1 and 6 according to vehicle speed and driving cond...
-
18 .1472-1. Driving procedure...1472-1. Driving procedures2When drivingChanging shift ranges in S modeTo enter S mode, shift the shift lever to the S position. The shift range canthen be selected by operating the "-" and "+" shift paddle switches or theshift lever. Changing the shift r...
-
19 .1482-1. Driving procedure...1482-1. Driving procedures■When the "-" shift paddle switch is operated in the D positionWhen the "-" shift paddle switch is operat ed in the D position, a shift range will beautomatically selected. The highest gear of the first shift range will be one gea...
-
20 .1492-1. Driving procedure...1492-1. Driving procedures2When driving■If does not come on even after shifting the shift lever to SThis may indicate a malfunction in the automatic transmission system. Have thevehicle inspected by your Lexus dealer immediately. (In this situation, the ve...
-
21 .1502-1. Driving procedure...1502-1. Driving proceduresTurn signal lever■Turn signals can be operated whenThe "ENGINE START STOP" switch is in IGNITION ON mode.■If the indicators flash faster than usualCheck that a light bulb in the turn signal lights has not burned out.Right turnLef...
-
22 .1512-1. Driving procedure...1512-1. Driving procedures2When drivingParking brake■Usage in winter timeSee "Winter driving tips" for parking brake usage in winter time. ( →P. 201)NOTICE■Before drivingFully release the parking brake.Driving the vehicle with the parking brake set will l...
-
23 .1522-1. Driving procedure...1522-1. Driving proceduresHorn■After adjusting the steering wheel (vehicle s with manually adjustable type steer-ing wheel)Make sure that the steering wheel is securely locked.The horn may not sound if the steeri ng wheel is not securely locked. ( →P. 73)T...
