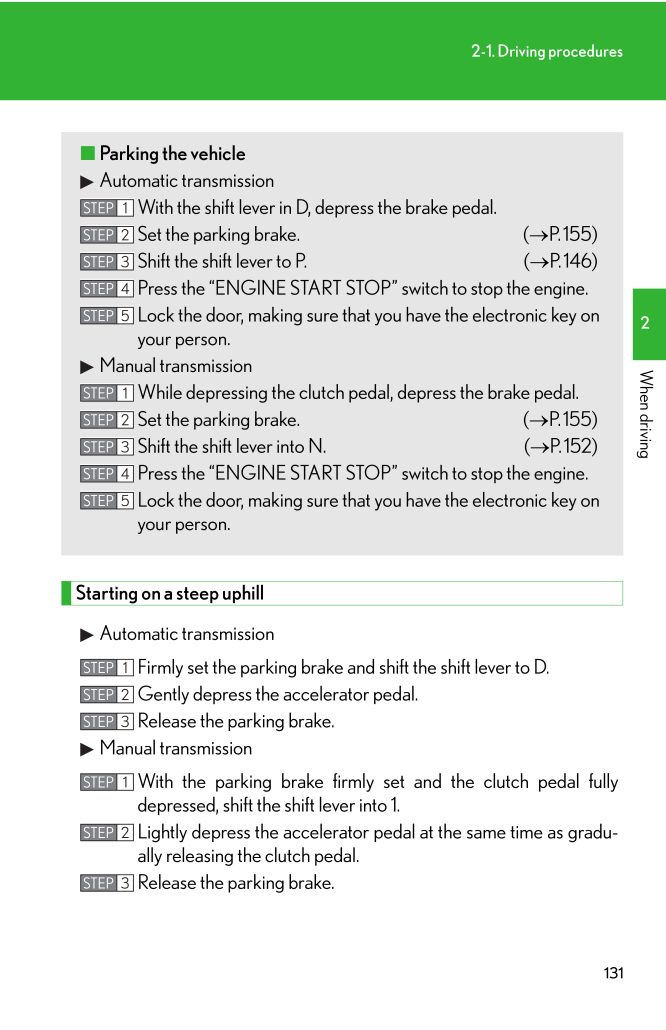

1312-1. Driving procedures2When drivingStarting on a steep uphillAutomatic transmissionFirmly set the parking brake and shift the shift lever to D. Gently depress the accelerator pedal. Release the parking brake. Manual transmissionWith the parking brake firmly set and the clutch pedal fullydepressed, shift the shift lever into 1. Lightly depress the accelerator pedal at the same time as gradu-ally releasing the clutch pedal. Release the parking brake. ■Parking the vehicleAutomatic transmissionWith the shift lever in D, depress the brake pedal. Set the parking brake. (→P. 155) Shift the shift lever to P. (→P. 146) Press the "ENGINE START STOP" switch to stop the engine.Lock the door, making sure that you have the electronic key onyour person.Manual transmissionWhile depressing the clutch pedal, depress the brake pedal. Set the parking brake. (→P. 155) Shift the shift lever into N. (→P. 152) Press the "ENGINE START STOP" switch to stop the engine.Lock the door, making sure that you have the electronic key onyour person.STEP 1STEP 2STEP 3STEP 4STEP 5STEP 1STEP 2STEP 3STEP 4STEP 5STEP 1STEP 2STEP 3STEP 1STEP 2STEP 3
参考になったと評価
3人が参考になったと評価しています。
このマニュアルの目次
-
1 .1302-1. Driving procedure...1302-1. Driving proceduresDriving the vehicleThe following procedures should be observed to ensure safe driving. ■Starting the engine (→P. 141)■DrivingAutomatic transmissionWith the brake pedal depressed, shift the shift lever to D. (→P. 146)Release the pa...
-
2 .1312-1. Driving procedure...1312-1. Driving procedures2When drivingStarting on a steep uphillAutomatic transmissionFirmly set the parking brake and shift the shift lever to D. Gently depress the accelerator pedal. Release the parking brake. Manual transmissionWith the parking brake f...
-
3 .1322-1. Driving procedure...1322-1. Driving procedures■Starting off on a hill (vehicles with an automatic transmission)Hill-start assist control will operate. ( →P. 196)■Driving in the rain●Drive carefully when it is raining, because visibility will be reduced, the windowsmay become ...
-
4 .1332-1. Driving procedure...1332-1. Driving procedures2When driving■Operating your vehicle in a foreign countryComply with the relevant vehicle registration laws and confirm the availability of thecorrect fuel. (→P. 523)CAUTION■When starting the vehicleWith automatic transmission veh...
-
5 .1342-1. Driving procedure...1342-1. Driving proceduresCAUTION●With automatic transmission vehicles, do not shift the shift lever to P while thevehicle is moving.Doing so can damage the transmission and may result in a loss of vehicle control.●Do not shift the shift lever to R while t...
-
6 .1352-1. Driving procedure...1352-1. Driving procedures2When drivingCAUTION●Always check that all passengers' arms, heads or other parts of their bodies arenot outside the vehicle, as this may result in death or serious injury.●Do not drive the vehicle off-road.This is not a AWD vehic...
-
7 .1362-1. Driving procedure...1362-1. Driving proceduresCAUTION■When shifting the shift leverWith automatic transmission vehicles, be car eful not to shift the shift lever with theaccelerator pedal depressed.This may lead to unexpected rapid acceleration of the vehicle that may cause a...
-
8 .1372-1. Driving procedure...1372-1. Driving procedures2When drivingCAUTION■When the vehicle is parked●Do not leave glasses, cigarett e lighters, spray cans, or soft drink cans in the vehi-cle when it is in the sun.Doing so may result in the following.* Gas may leak from a cigarette l...
-
9 .1382-1. Driving procedure...1382-1. Driving proceduresCAUTION■When taking a nap in the vehicleAlways turn the engine off. Otherwise, you may accidentally move the shift lever ordepress the accelerator pedal, which could cause an accident or fire due to engineoverheating. Additionall...
-
10 .1392-1. Driving procedure...1392-1. Driving procedures2When drivingNOTICE■When driving the vehicle●Do not depress the accelerator and brake pe dals at the same time during driving.If the brake pedal is depressed whil e driving with the accelerator pedaldepressed, driving torque may b...
-
11 .1402-1. Driving procedure...1402-1. Driving proceduresNOTICE■If you get a flat tire while driving A flat or damaged tire may cause the following situations. Hold the steering wheelfirmly and gradually press the brak e pedal to slow down the vehicle.●It may be difficult to control you...
-
12 .1412-1. Driving procedure...1412-1. Driving procedures2When drivingEngine (ignition) switchPerforming the following operations when carrying the electronic key onyour person starts the engine or changes "ENGINE START STOP" switchmodes.■Starting the engineAutomatic transmissionCheck t...
-
13 .1422-1. Driving procedure...1422-1. Driving proceduresManual transmissionCheck that the parking brake is set.Check that the shift lever is set in N.Firmly depress the clutch pedal.The "ENGINE START STOP" switch indicator turns green.Press the "ENGINE STARTSTOP" switch.The engine will...
-
14 .1432-1. Driving procedure...1432-1. Driving procedures2When driving■Changing "ENGINE START STOP" switch modeModes can be changed by pressing the "ENGINE START STOP"switch with the brake pedal (vehic les with an automatic transmission)or clutch pedal (vehicles with a manual transmiss...
-
15 .1442-1. Driving procedure...1442-1. Driving procedures■If the engine does not startThe engine immobilizer system may not have been deactivated. ( →P. 90)■When the steering lock cannot be released■When the "ENGINE START STOP" switch indicator flashes in amberThe system may be malfunct...
-
16 .1452-1. Driving procedure...1452-1. Driving procedures2When drivingCAUTION■When starting the engineAlways start the engine while sitting in the driver's seat. Do not press the accelera-tor while starting the engine under any circumstances.Doing so may cause an accident resu lting in ...
-
17 .1462-1. Driving procedure...1462-1. Driving proceduresAutomatic transmission∗Select a shift position appropriate for the driving conditions.■Shifting the shift leverWhile the "ENGINE START STOP" switch is in IGNITIONON mode, depress the brake pedal and move the shift lever. ■Shift po...
-
18 .1472-1. Driving procedure...1472-1. Driving procedures2When drivingSelecting shift ranges in the D positionTo drive using temporary shift range se lection, operate the "-" shift paddleswitch. The shift range can then be selected by operating the "-" and "+"shift paddle switches. Chan...
-
19 .1482-1. Driving procedure...1482-1. Driving procedures■Shift ranges and their functionsA lower shift range will provide greater engine braking force than a higher shiftrange.Shift range Function6Automatically selecting gears between 1 and 6 according to vehicle speed and driving cond...
-
20 .1492-1. Driving procedure...1492-1. Driving procedures2When drivingChanging shift ranges in S modeTo enter S mode, shift the shift lever to the S position. The shift range canthen be selected by operating the "-" and "+" shift paddle switches or theshift lever. Changing the shift r...
-
21 .1502-1. Driving procedure...1502-1. Driving procedures■When the "-" shift paddle switch is operated in the D positionWhen the "-" shift paddle switch is operat ed in the D position, a shift range will beautomatically selected. The highest gear of the first shift range will be one gea...
-
22 .1512-1. Driving procedure...1512-1. Driving procedures2When driving■If does not come on even after shifting the shift lever to SThis may indicate a malfunction in the automatic transmission system. Have thevehicle inspected by your Lexus dealer immediately. (In this situation, the ve...
-
23 .1522-1. Driving procedure...1522-1. Driving proceduresManual transmission∗■Shifting the shift leverFully depress the clutch pedalbefore operating the shift lever,and then release it slowly.■Shifting the shift lever into RShift the shift lever into the Rposition while lifting up the r...
-
24 .1532-1. Driving procedure...1532-1. Driving procedures2When drivingSnow modeThe snow mode is used for accel-erating and driving on slipperyroad surfaces, such as on snow. Push the switch once more toreturn to normal mode. ■Maximum downshifting speedAdhere to the downshifting speeds i...
-
25 .1542-1. Driving procedure...1542-1. Driving proceduresTurn signal lever■Turn signals can be operated whenThe "ENGINE START STOP" switch is in IGNITION ON mode.■If the indicators flash faster than usualCheck that a light bulb in the turn signal lights has not burned out.Right turnLef...
-
26 .1552-1. Driving procedure...1552-1. Driving procedures2When drivingParking brake■Usage in winter timeSee "Winter driving tips" for parking brake usage in winter time. ( →P. 206)Vehicles with an automatic transmissionSets the parking brake*(Depressing the pedal againreleases the parki...
-
27 .1562-1. Driving procedure...1562-1. Driving proceduresNOTICE■Before drivingFully release the parking brake.Driving the vehicle with the parking brake set will lead to brake components over-heating, which may affect braking performance and increase brake wear.
-
28 .1572-1. Driving procedure...1572-1. Driving procedures2When drivingHorn■After adjusting the steering wheel (vehicle s with manually adjustable type steer-ing wheel)Make sure that the steering wheel is securely locked.The horn may not sound if the steeri ng wheel is not securely locke...
