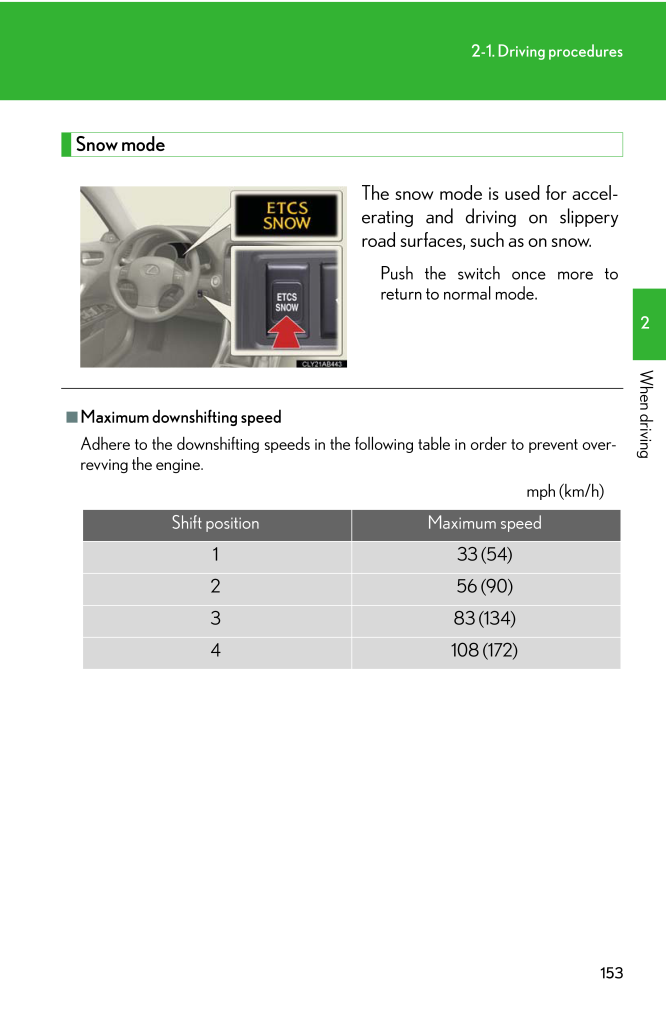

1532-1. Driving procedures2When drivingSnow modeThe snow mode is used for accel-erating and driving on slipperyroad surfaces, such as on snow. Push the switch once more toreturn to normal mode. ■Maximum downshifting speedAdhere to the downshifting speeds in the following table in order to prevent over-revving the engine. mph (km/h)Shift position Maximum speed1 33 (54)2 56 (90)3 83 (134)4 108 (172)
