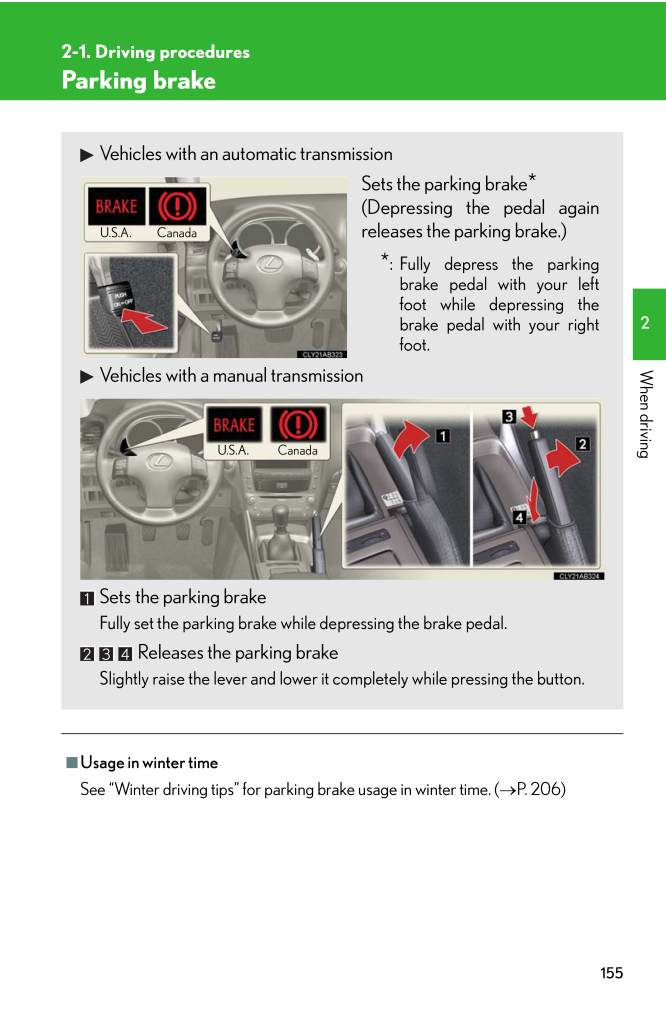

1552-1. Driving procedures2When drivingParking brake■Usage in winter timeSee "Winter driving tips" for parking brake usage in winter time. ( →P. 206)Vehicles with an automatic transmissionSets the parking brake*(Depressing the pedal againreleases the parking brake.)*: Fully depress the parkingbrake pedal with your leftfoot while depressing thebrake pedal with your rightfoot.Vehicles with a manual transmissionSets the parking brakeFully set the parking brake while depressing the brake pedal.Releases the parking brakeSlightly raise the lever and lower it completely while pressing the button.CanadaU.S.A.CanadaU.S.A.
