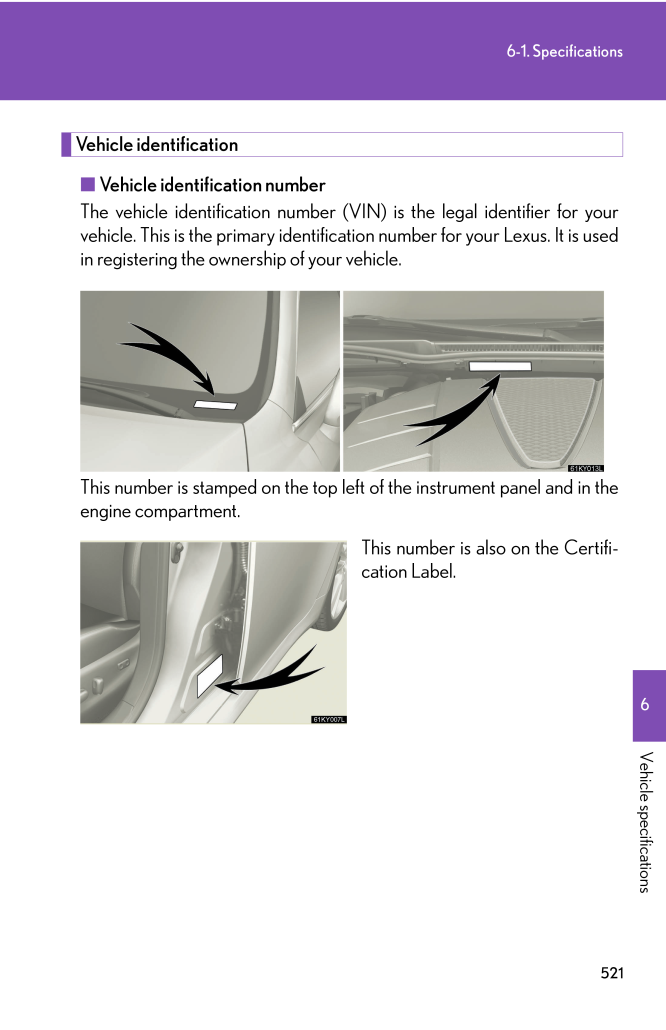

5216-1. Specifications6Vehicle specificationsVehicle identification■ Vehicle identification numberThe vehicle identification number (VIN) is the legal identifier for your vehicle. This is the primary identification number for your Lexus. It is used in registering the ownership of your vehicle.This number is stamped on the top left of the instrument panel and in the engine compartment.This number is also on the Certifi -cation Label.
