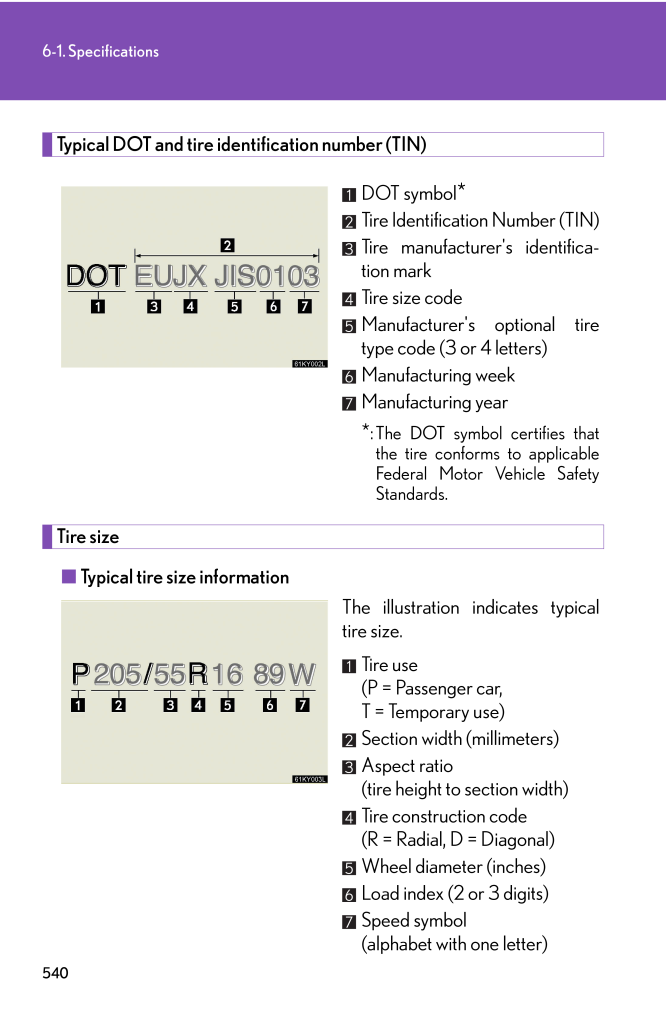

5406-1. SpecificationsTypical DOT and tire identification number (TIN)DOT symbol *Tire Identification Number (TIN)Tire manufacturer's identifica -tion markTire size codeManufacturer's optional tire type code (3 or 4 letters)Manufacturing weekManufacturing year*:The DOT symbol certifies that the tire conforms to applicable Federal Motor Vehicle Safety Standards.Tire size■ Typical tire size informationThe illustration indicates typical tire size.Tire use (P = Passenger car, T = Temporary use)Section width (millimeters)Aspect ratio (tire height to section width)Tire construction code (R = Radial, D = Diagonal)Wheel diameter (inches)Load index (2 or 3 digits)Speed symbol (alphabet with one letter)
