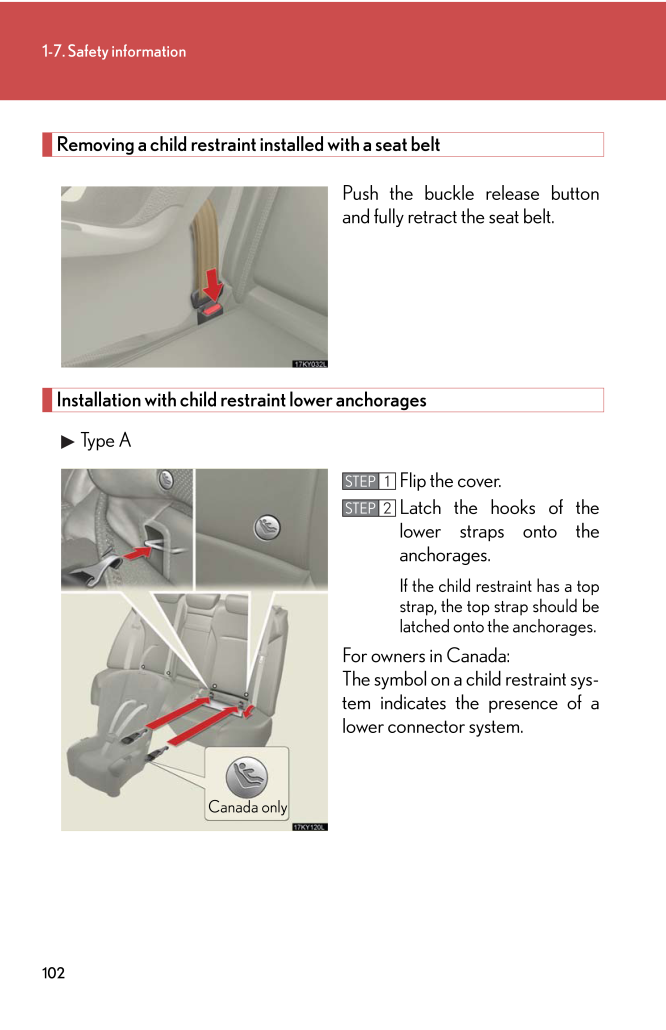

1021-7. Safety informationRemoving a child restraint installed with a seat beltPush the buckle release buttonand fully retract the seat belt. Installation with child restraint lower anchoragesType AFlip the cover.Latch the hooks of thelower straps onto theanchorages. If the child restraint has a topstrap, the top strap should belatched onto the anchorages. For owners in Canada:The symbol on a child restraint sys-tem indicates the presence of alower connector system.Canada onlySTEP 1STEP 2
