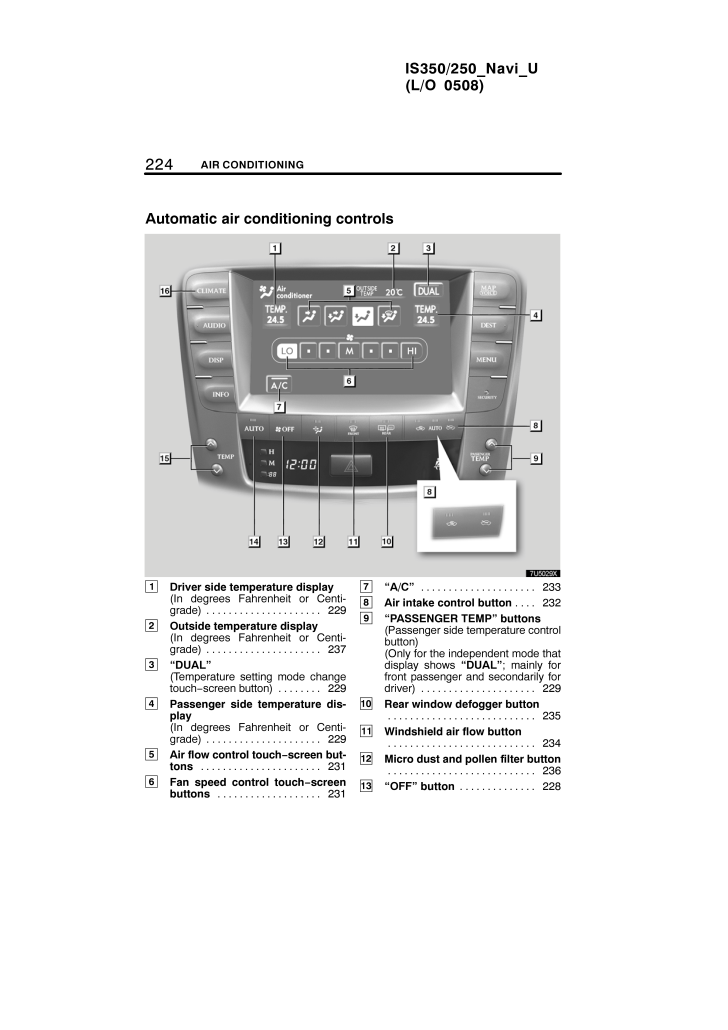

224AIR CONDITIONINGIS350/250_Navi_U(L/O 0508)1Driver side temperature display (In degrees Fahrenheit or Centi-grade) 229 . . . . . . . . . . . . . . . . . . . . . 2Outside temperature display (In degrees Fahrenheit or Centi-grade) 237 . . . . . . . . . . . . . . . . . . . . . 3"DUAL" (Temperature setting mode changetouch−screen button) 229. . . . . . . . 4Passenger side temperature dis-play (In degrees Fahrenheit or Centi-grade) 229 . . . . . . . . . . . . . . . . . . . . . 5Air flow control touch −screen but-tons 231 . . . . . . . . . . . . . . . . . . . . . . 6Fan speed control touch −screenbuttons 231 . . . . . . . . . . . . . . . . . . . 7"A/C" 233 . . . . . . . . . . . . . . . . . . . . . 8Air intake control button 232. . . . 9"PASSENGER TEMP" buttons(Passenger side temperature controlbutton) (Only for the independent mode thatdisplay shows "DUAL"; mainly forfront passenger and secondarily fordriver) 229 . . . . . . . . . . . . . . . . . . . . . 10Rear window defogger button235 . . . . . . . . . . . . . . . . . . . . . . . . . . . 11Windshield air flow button234 . . . . . . . . . . . . . . . . . . . . . . . . . . . 12Micro dust and pollen filter button236 . . . . . . . . . . . . . . . . . . . . . . . . . . . 13"OFF" button 228. . . . . . . . . . . . . . Automatic air conditioning controls

参考になったと評価
　　3人が参考になったと評価しています。

その他の取扱説明書
33980 view
15095 view
7592 view
10117 view
8957 view
もっと見る

このマニュアルの目次

  • 1 .
    SECTION VII223IS350/25
    SECTION VII223IS350/250_Navi_U(L/O 0508)AIR CONDITIONINGAIR CONDITIONINGAir conditioningAutomatic air conditioning controls 224
  • 2 .
    224AIR CONDITIONINGIS350/...
    224AIR CONDITIONINGIS350/250_Navi_U(L/O 0508)1Driver side temperature display (In degrees Fahrenheit or Centi-grade) 229 . . . . . . . . . . . . . . . . . . . . . 2Outside temperature display (In degrees Fahrenheit or Centi-grade) 237 . . . . . . . . . . ...
  • 3 .
    225IS350/250_Navi_U(L/O 0...
    225IS350/250_Navi_U(L/O 0508)AIR CONDITIONING14"AUTO" button 228. . . . . . . . . . . . 15"TEMP" buttons(Driver side temperature control but-ton) (At the independent mode thatdisplay shows "DUAL"; mainly ordriver and secondarily for front pas-senger)(At th...
  • 4 .
    226AIR CONDITIONINGIS350/...
    226AIR CONDITIONINGIS350/250_Navi_U(L/O 0508)Air flow selection Automatic air flow mode only
  • 5 .
    227IS350/250_Navi_U(L/O 0...
    227IS350/250_Navi_U(L/O 0508)AIR CONDITIONINGThe automatic air conditioning auto-matically maintains the set tempera-ture.In the automatic operation mode, the airconditioning selects the most suitable fanspeed, air flow, air intake and on −off the aircondi...
  • 6 .
    228AIR CONDITIONINGIS350/...
    228AIR CONDITIONINGIS350/250_Navi_U(L/O 0508)(a) Climate controlSETTING OPERATION − automatic con-trol1. Push the "AUTO" button.An indicator light will illuminate to showthat the automatic operation mode hasbeen selected.Air flow quantity, switching of the...
  • 7 .
    229IS350/250_Navi_U(L/O 0...
    229IS350/250_Navi_U(L/O 0508)AIR CONDITIONING2. Use the "TEMP" or "PASSENGERTEMP" button to set the desired vehicleinterior temperature.The "TEMP" or "PASSENGER TEMP"("", " ") buttons are used to set the de-sired interior temperature. The interiortemperat...
  • 8 .
    230AIR CONDITIONINGIS350/...
    230AIR CONDITIONINGIS350/250_Navi_U(L/O 0508)INFORMATIONKnowledge for the two −temperatureselector operation:This air conditioning system has twoindependent temperature selectors:left and right (for the use of driver andfront passenger respectively).There ...
  • 9 .
    231IS350/250_Navi_U(L/O 0...
    231IS350/250_Navi_U(L/O 0508)AIR CONDITIONINGSETTING OPERATION - manual con-trolWhen one of the manual control touch −screen buttons is depressed while operat-ing in automatic mode, the operation cor-responding to the depressed button is set.Other conditio...
  • 10 .
    232AIR CONDITIONINGIS350/...
    232AIR CONDITIONINGIS350/250_Navi_U(L/O 0508)If manual switching of air intake is de-sired -Each time you push the air intake controlbutton, the mode changes in order fromthe RECIRCULATED AIR mode to AUTO-MATIC mode to OUTSIDE AIR mode, thenback to the REC...
  • 11 .
    233IS350/250_Navi_U(L/O 0...
    233IS350/250_Navi_U(L/O 0508)AIR CONDITIONINGTo change the sensitivity of the sensorswitching between the RECIRCU-LATED AIR and OUTSIDE AIR in the AU-TOMATIC mode, push the air intakecontrol button and hold it for a few sec-onds.The "Smog Sensor" screen wi...
  • 12 .
    234AIR CONDITIONINGIS350/...
    234AIR CONDITIONINGIS350/250_Navi_U(L/O 0508)(b) Windshield defogging and defrost-ingTo remove interior fog on the wind-shield -Push the windshield air flow button.To remove frost or exterior fog on thewindshield-1. Push the "TEMP" ("") button to setthe "H...
  • 13 .
    235IS350/250_Navi_U(L/O 0...
    235IS350/250_Navi_U(L/O 0508)AIR CONDITIONING(c) Rear window and outside rear viewmirror defogingTo turn the electric rear window andoutside rear view mirror defogger on,push the button above.The engine switch must be in "IG −ON"mode.The thin heater wires ...
  • 14 .
    236AIR CONDITIONINGIS350/...
    236AIR CONDITIONINGIS350/250_Navi_U(L/O 0508)(d) Micro dust and pollen filterThis vehicle is equipped with a microdust and pollen filter mode. When thismode is activated, air from the ventswill remove pollen on the driver andpassengers.Push the micro dust...
  • 15 .
    237IS350/250_Navi_U(L/O 0...
    237IS350/250_Navi_U(L/O 0508)AIR CONDITIONING(e) Outside temperature displayOutside temperature is displayed onthe screen.The displayed temperature ranges from−40C (−40F) up to 50C (122F).If the temperature shows " − −" or "E", takeyour vehicle to your Lex...
  • 16 .
    238AIR CONDITIONINGIS350/...
    238AIR CONDITIONINGIS350/250_Navi_U(L/O 0508)HeatingFor best results, set controls to:For automatic operation -Push in the "AUTO" button.Temperature - To the desired temperatureAir intake - OUTSIDE AIRAir conditioning - OFFFor manual operation -Fan speed -...
  • 17 .
    239IS350/250_Navi_U(L/O 0...
    239IS350/250_Navi_U(L/O 0508)AIR CONDITIONINGDefogging and defrosting− The inside of the windshieldFor best results, set controls to:For automatic operation -Temperature - Towards high temperature to heat; low temperature to coolAir intake - OUTSIDE AIRAir...
  • 18 .
    240AIR CONDITIONINGIS350/...
    240AIR CONDITIONINGIS350/250_Navi_U(L/O 0508)(g) Adjusting the position of and open-ing and closing the air outletsCenter outlets 1Adjusting air flow direction2Open or close the ventSide outlets1Adjusting air flow direction2Open or close the ventRear seat ...
  • 19 .
    241IS350/250_Navi_U(L/O 0...
    241IS350/250_Navi_U(L/O 0508)AIR CONDITIONING(h) Checking and replacing the airconditioning filterThe air conditioning filter informationlabel is placed in the glove box asshown and indicates that a filter hasbeen installed.The air conditioning filter , in...
  • 20 .
    242AIR CONDITIONINGIS350/...
    242AIR CONDITIONINGIS350/250_Navi_U(L/O 0508)1. Set the air conditioning system toRECIRCULATED AIR mode.The air conditioning filter case cannot beremoved with the OUTSIDE AIR mode.2. Turn the engine switch off.When you replace the filter, be sure to turnof...
  • 21 .
    243IS350/250_Navi_U(L/O 0...
    243IS350/250_Navi_U(L/O 0508)AIR CONDITIONINGINFORMATIONThe air conditioning filter should beinstalled properly in position. Theuse of air conditioning with the filterremoved may cause deteriorateddustproof performance and then af-fect air conditioning pe...
  • 22 .
    244AIR CONDITIONINGIS350/...
    244AIR CONDITIONINGIS350/250_Navi_U(L/O 0508)
