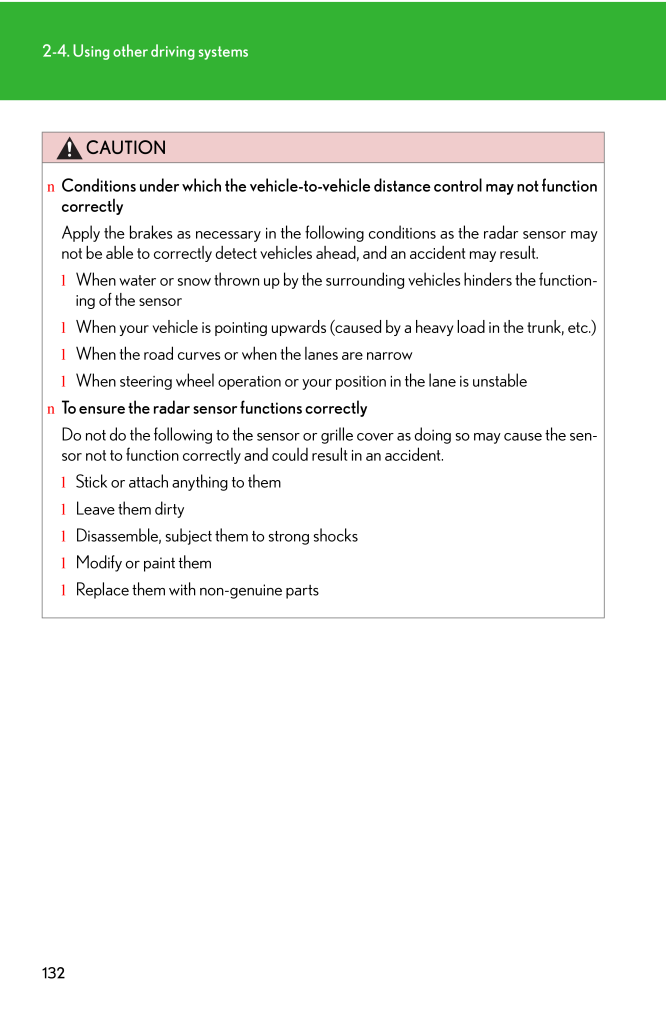

1322-4. Using other driving systemsCAUTIONnConditions under which the vehicle-to-vehicle distance control may not functioncorrectlyApply the brakes as necessary in the following conditions as the radar sensor maynot be able to correctly detect vehicles ahead, and an accident may result.lWhen water or snow thrown up by the surrounding vehicles hinders the function-ing of the sensorlWhen your vehicle is pointing upwards (caused by a heavy load in the trunk, etc.)lWhen the road curves or when the lanes are narrowlWhen steering wheel operation or your position in the lane is unstablenTo ensure the radar sensor functions correctlyDo not do the following to the sensor or grille cover as doing so may cause the sen-sor not to function correctly and could result in an accident.lStick or attach anything to themlLeave them dirtylDisassemble, subject them to strong shockslModify or paint themlReplace them with non-genuine parts
