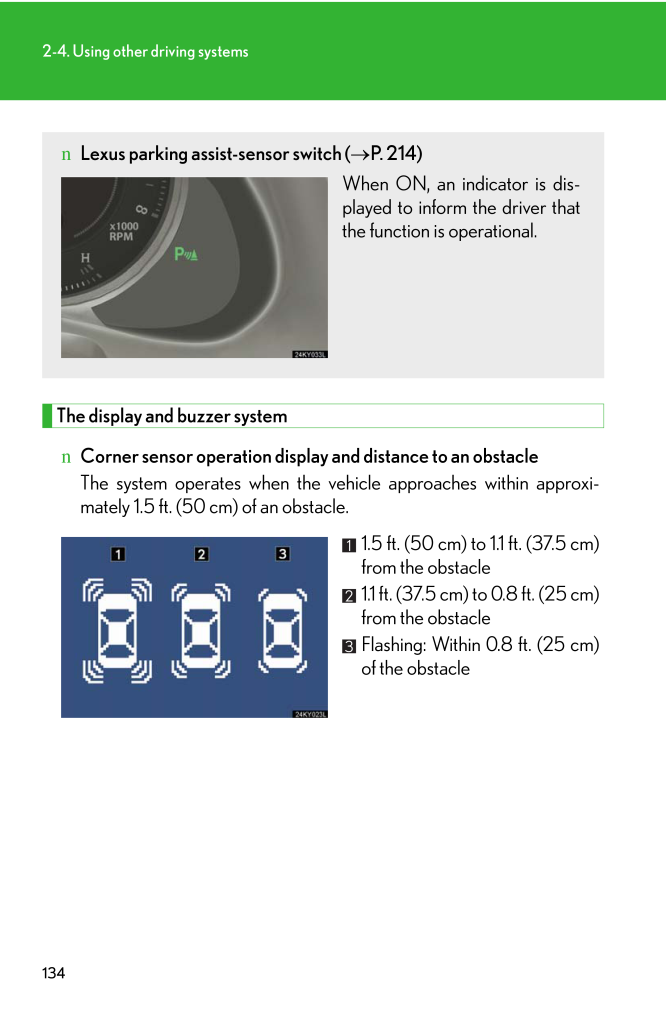

1342-4. Using other driving systemsThe display and buzzer systemn Corner sensor operation display and distance to an obstacle The system operates when the vehicle approaches within approxi-mately 1.5 ft. (50 cm) of an obstacle. 1.5 ft. (50 cm) to 1.1 ft. (37.5 cm)from the obstacle 1.1 ft. (37.5 cm) to 0.8 ft. (25 cm)from the obstacle Flashing: Within 0.8 ft. (25 cm)of the obstacle n Lexus parking assist-sensor switch (→ P. 214)When ON, an indicator is dis-played to inform the driver thatthe function is operational.
