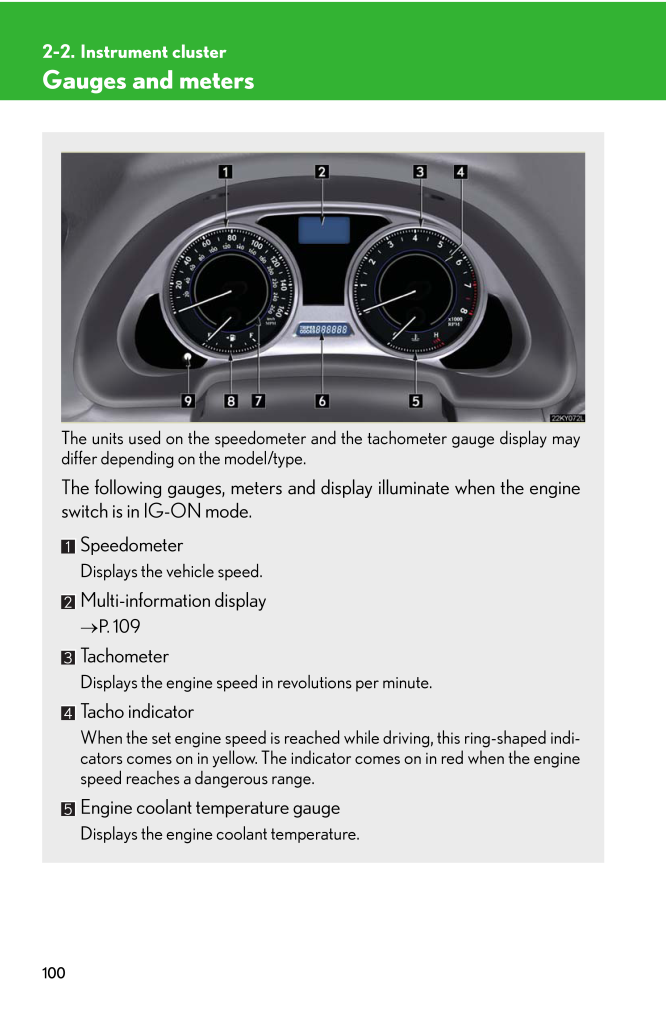

1002-2. Instrument clusterGauges and metersThe units used on the speedometer an d the tachometer gauge display maydiffer depending on the model/type. The following gauges, meters and display illuminate when the engineswitch is in IG-ON mode.SpeedometerDisplays the vehicle speed. Multi-information display→ P. 109TachometerDisplays the engine speed in revolutions per minute.Tacho indicator When the set engine speed is reached while driving, this ring-shaped indi-cators comes on in yellow. The indicator comes on in red when the enginespeed reaches a dangerous range.Engine coolant temperature gaugeDisplays the engine coolant temperature.
