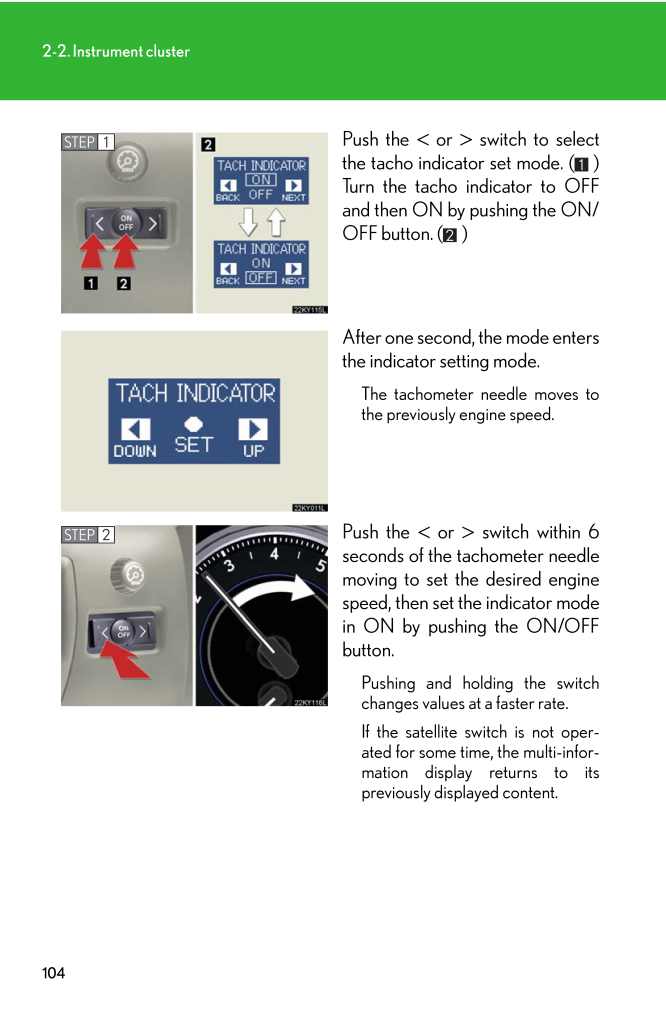

1042-2. Instrument clusterPush the < or > switch to selectthe tacho indicator set mode. ( )Turn the tacho indicator to OFFand then ON by pushing the ON/OFF button. ( )After one second, the mode entersthe indicator setting mode.The tachometer needle moves tothe previously engine speed.Push the < or > switch within 6seconds of the tachometer needlemoving to set the desired enginespeed, then set the indicator modein ON by pushing the ON/OFFbutton.Pushing and holding the switchchanges values at a faster rate. If the satellite switch is not oper-ated for some time, the multi-infor-mation display returns to itspreviously displayed content.STEP 1STEP 2
