8 / 13 ページ
　
8 / 13 ページ
ファイルを開く
現在のページURL

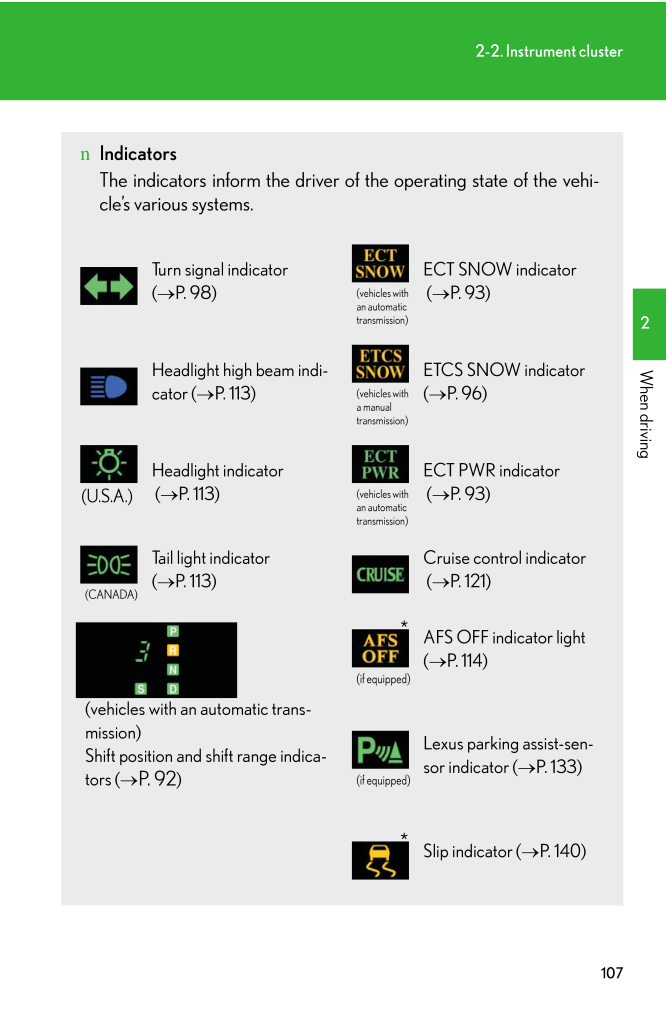

1072-2. Instrument cluster2When drivingn IndicatorsThe indicators inform the driver of th e operating state of the vehi-cle's various systems. Turn signal indicator ( → P. 98)(vehicles with an automatic transmission)ECT SNOW indicator ( → P. 93) Headlight high beam indi-cator (→ P. 113)(vehicles with a manual transmission)ETCS SNOW indicator ( → P. 96) (U.S.A.)Headlight indicator ( → P. 113)(vehicles with an automatic transmission)ECT PWR indicator ( → P. 93)(CANADA)Tail light indicator( → P. 113) Cruise control indicator ( → P. 121)(vehicles with an automatic trans-mission)Shift position and shift range indica-tors (→P. 92 ) (if equipped)AFS OFF indicator light( → P. 114) (if equipped)Lexus parking assist-sen-sor indicator (→ P. 133)Slip indicator (→ P. 140)**
