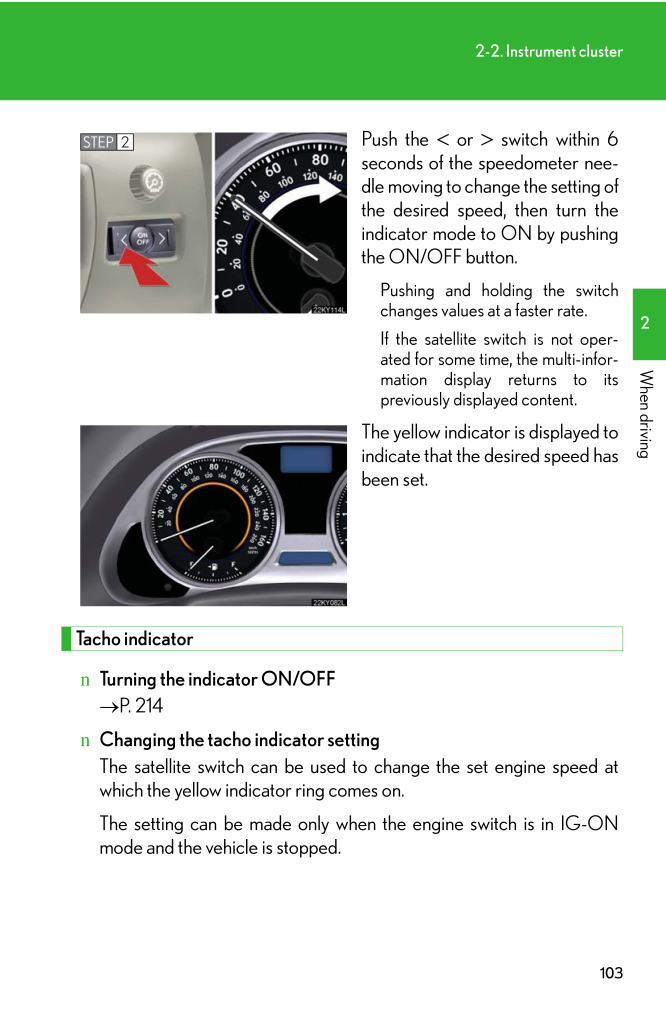

1032-2. Instrument cluster2When drivingPush the < or > switch within 6seconds of the speedometer nee-dle moving to change the setting ofthe desired speed, then turn theindicator mode to ON by pushingthe ON/OFF button.Pushing and holding the switchchanges values at a faster rate. If the satellite switch is not oper-ated for some time, the multi-infor-mation display returns to itspreviously displayed content.The yellow indicator is displayed toindicate that the desired speed hasbeen set.Tacho indicatorn Turning the indicator ON/OFF→ P. 214n Changing the tacho indicator settingThe satellite switch can be used to change the set engine speed atwhich the yellow indicator ring comes on.The setting can be made only when the engine switch is in IG-ONmode and the vehicle is stopped.STEP 2

参考になったと評価
　　3人が参考になったと評価しています。

その他の取扱説明書
34357 view
11103 view
1484 view
15413 view
7673 view
もっと見る

このマニュアルの目次

  • 1 .
    1002-2. Instrument cluste...
    1002-2. Instrument clusterGauges and metersThe units used on the speedometer an d the tachometer gauge display maydiffer depending on the model/type. The following gauges, meters and display illuminate when the engineswitch is in IG-ON mode.SpeedometerDisp...
  • 2 .
    1012-2. Instrument cluste...
    1012-2. Instrument cluster2When drivingInstrument panel light controlThe brightness of the instrument panel lights can be adjusted. DarkerBrighterOdometerDisplays the total distance the vehicle has been driven. Trip meterDisplays the distance the vehicle h...
  • 3 .
    1022-2. Instrument cluste...
    1022-2. Instrument clusterSpeed indicatorn Turning the indicator ON/OFF→ P. 214n Changing the speed indicator settingThe satellite switch can be used to change the set speed at which theyellow speed indicator ring comes on.The setting can be made only whe...
  • 4 .
    1032-2. Instrument cluste...
    1032-2. Instrument cluster2When drivingPush the < or > switch within 6seconds of the speedometer nee-dle moving to change the setting ofthe desired speed, then turn theindicator mode to ON by pushingthe ON/OFF button.Pushing and holding the switchchanges...
  • 5 .
    1042-2. Instrument cluste...
    1042-2. Instrument clusterPush the < or > switch to selectthe tacho indicator set mode. ( )Turn the tacho indicator to OFFand then ON by pushing the ON/OFF button. ( )After one second, the mode entersthe indicator setting mode.The tachometer needle moves...
  • 6 .
    1052-2. Instrument cluste...
    1052-2. Instrument cluster2When drivingThe yellow indicator value is dis-played to indicate that enginespeed has been set.nSpeed indicator display conditions and vehicle speed setting rangeVehicle speed setting range: Approximately 30 to 100 mph (approxima...
  • 7 .
    1062-2. Instrument cluste...
    1062-2. Instrument clusterIndicators and warning lightsThe indicator and warning lights on the instrument cluster and centerpanel inform the driver of the status of the vehicle's various systems. Instrument clusterThe units used on the speedometer an d the...
  • 8 .
    1072-2. Instrument cluste...
    1072-2. Instrument cluster2When drivingn IndicatorsThe indicators inform the driver of th e operating state of the vehi-cle's various systems. Turn signal indicator ( → P. 98)(vehicles with an automatic transmission)ECT SNOW indicator ( → P. 93) Headlight ...
  • 9 .
    1082-2. Instrument cluste...
    1082-2. Instrument clusterCAUTIONnIf a safety system warning light does not come on Should a safety system light such as ABS and the SRS airbag warning light notcome on when you start the engine, this could mean that these systems are notavailable to help...
  • 10 .
    1092-2. Instrument cluste...
    1092-2. Instrument cluster2When drivingMulti-information displayThe multi-information display presents the driver with a variety of driving-related data, including the current outside air temperature. Trip information (→ P. 110)Displays driving range, fuel...
  • 11 .
    1102-2. Instrument cluste...
    1102-2. Instrument clusterTrip informationDisplay items can be switched bypushing the DISP switch. Type AType Bn Outside temperatureDisplays the outside air temperature. The temperature range that can be displayed is from-40 ° F (40° C) to 122° F (50 ° C)....
  • 12 .
    1112-2. Instrument cluste...
    1112-2. Instrument cluster2When drivingn Driving range n Average fuel consumption n Average fuel consumption after refueling n Current fuel consumption n Average vehicle speed Displays the estimated maximum distance that canbe driven with the quantity of f...
  • 13 .
    1122-2. Instrument cluste...
    1122-2. Instrument clustern Gear position display (vehicles with an automatic transmission only) Indicates the current gear, and the range of gearsthat is available when the shift lever is in the S or Dposition. the gear range is shown by the number ofdots...
