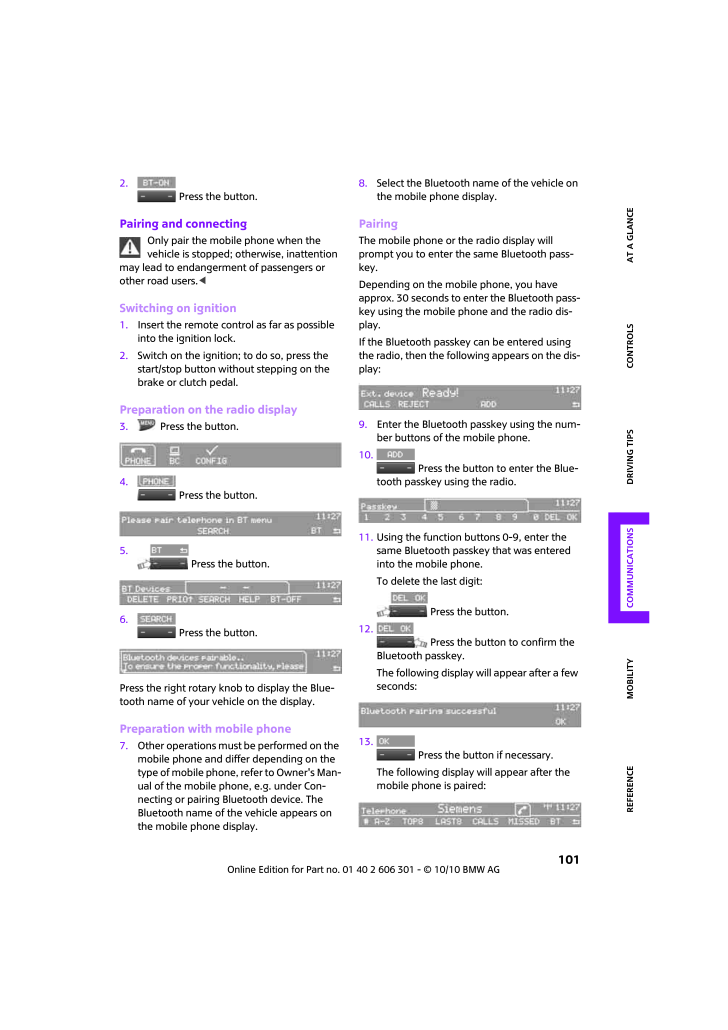

101AT A GLANCE Reference Mobility Controls Driving tips Communications2. Press the button.Pairing and connectingOnly pair the mobile phone when the vehicle is stopped; otherwise, inattention may lead to endangerment of passengers or other road users.<Switching on ignition1.Insert the remote control as far as possible into the ignition lock.2.Switch on the ignition; to do so, press the start/stop button without stepping on the brake or clutch pedal.Preparation on the radio display3. Press the button.4. Press the button.5. Press the button.6. Press the button.Press the right rotary knob to display the Blue-tooth name of your vehicle on the display.Preparation with mobile phone7.Other operations must be performed on the mobile phone and differ depending on the type of mobile phone, refer to Owner's Man-ual of the mobile phone, e.g. under Con-necting or pairing Bl uetooth device. The Bluetooth name of the vehicle appears on the mobile phone display.8.Select the Bluetooth name of the vehicle on the mobile phone display.PairingThe mobile phone or the radio display will prompt you to enter the same Bluetooth pass-key.Depending on the mobile phone, you have approx. 30 seconds to enter the Bluetooth pass-key using the mobile phone and the radio dis-play.If the Bluetooth passkey can be entered using the radio, then the following appears on the dis-play::9.Enter the Bluetooth passkey using the num-ber buttons of the mobile phone.10. Press the button to enter the Blue-tooth passkey using the radio.11.Using the function buttons 0-9, enter the same Bluetooth passkey that was entered into the mobile phone.To delete the last digit: Press the button.12. Press the button to confirm the Bluetooth passkey.The following display will appear after a few seconds:13. Press the button if necessary.The following display will appear after the mobile phone is paired:
