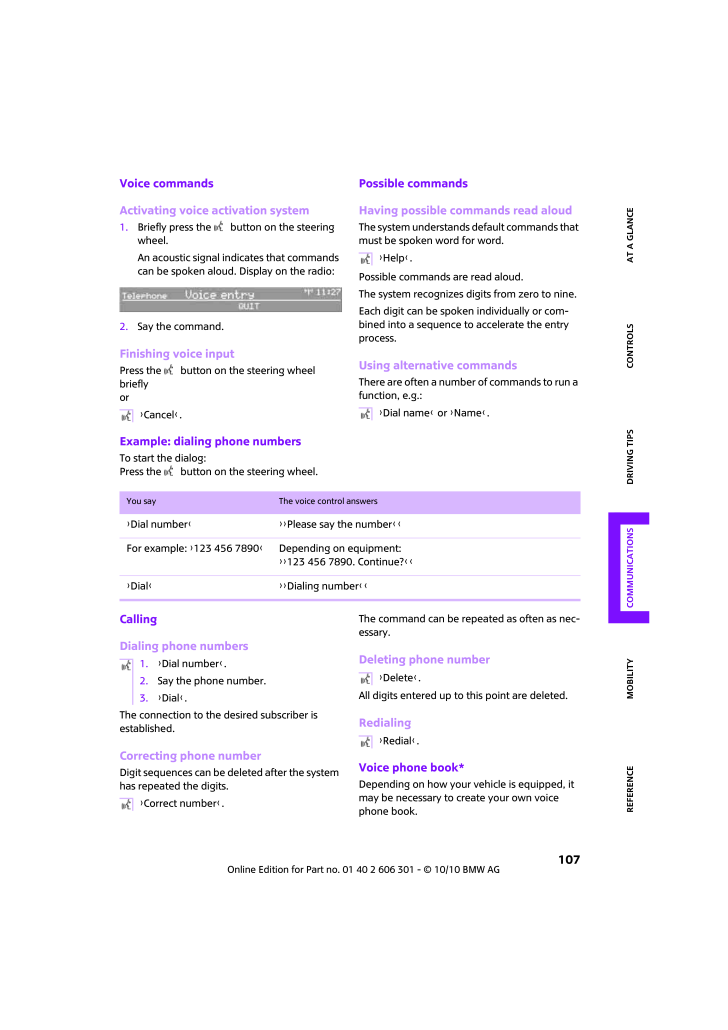

107AT A GLANCE Reference Mobility Controls Driving tips CommunicationsVoice commandsActivating voice activation system1.Briefly press the button on the steering wheel.An acoustic signal indicates that commands can be spoken aloud. Display on the radio:2.Say the command.Finishing voice inputPress the button on the steering wheel brieflyorPossible commandsHaving possible commands read aloudThe system understands default commands that must be spoken word for word.Possible commands are read aloud.The system recognizes digits from zero to nine.Each digit can be spoken individually or com-bined into a sequence to accelerate the entry process.Using alternative commandsThere are often a number of commands to run a function, e.g.: Example: dialing phone numbersTo start the dialog:Press the button on the steering wheel.CallingDialing phone numbersThe connection to the desired subscriber is established.Correcting phone numberDigit sequences can be deleted after the system has repeated the digits.The command can be repeated as often as nec-essary.Deleting phone numberAll digits entered up to this point are deleted.RedialingVoice phone book*Depending on how your vehicle is equipped, it may be necessary to create your own voice phone book.{Cancel}.{Help}.{Dial name} or {Name}. You say The voice control answers{Dial number}{{ Please say the number }}For example: {123 456 7890}Depending on equipment:{{123 456 7890. Continue? }} {Dial}{{ Dialing number}}1.{Dial number}.2.Say the phone number.3.{Dial}.{Correct number}.{Delete}.{Redial}.
