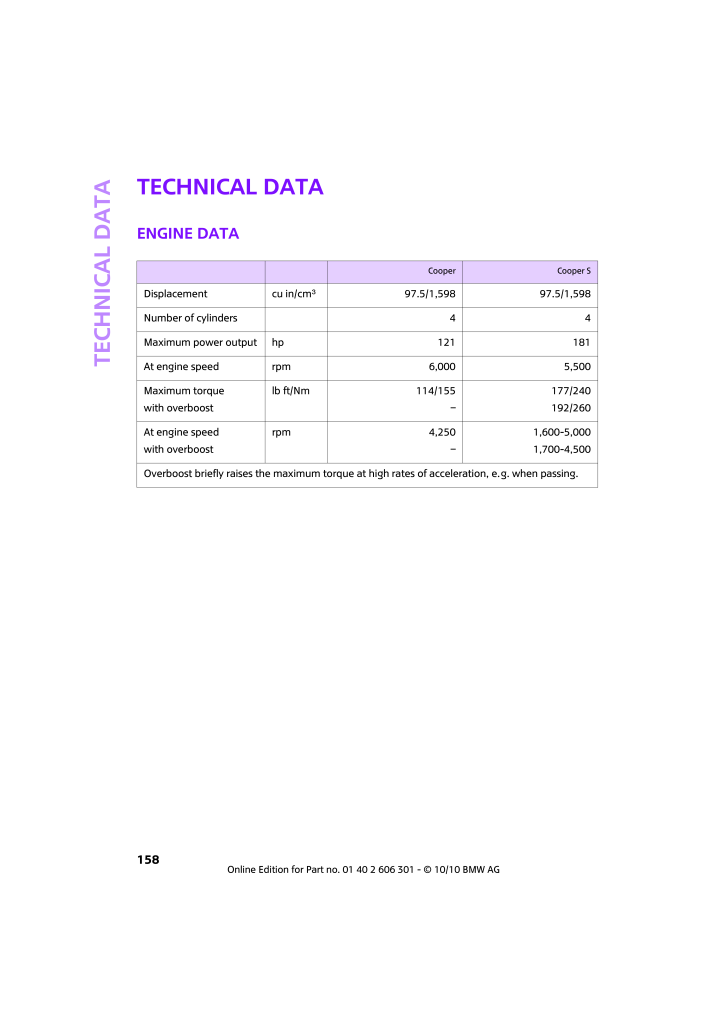

Technical data158Technical dataEngine data Cooper Cooper SDisplacement cu in/cmμ97.5/1,598 97.5/1,598Number of cylinders 4 4Maximum power output hp 121 181At engine speed rpm 6,000 5,500Maximum torquewith overboostlb ft/Nm 114/155-177/240192/260At engine speedwith overboostrpm 4,250-1,600-5,0001,700-4,500Overboost briefly raises the maximum torque at high rates of accelerati on, e.g. when passing.
