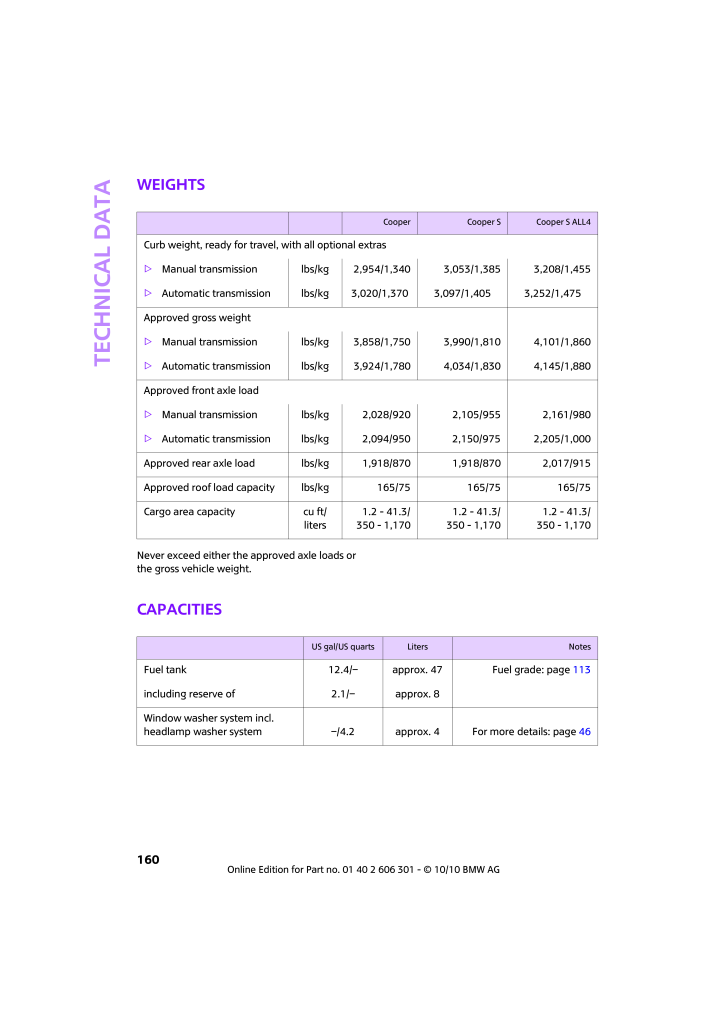

Technical data160WeightsNever exceed either the approved axle loads or the gross vehicle weight.CapacitiesCooper Cooper S Cooper S ALL4Curb weight, ready for travel , with all optional extras>Manual transmission lbs/kg 2,95 4/1,340 3,053/1,385 3,208/1,455>Automatic transmission lbs/kg 3,020/1,370 3,097/1,405 3,252/1,475Approved gross weight>Manual transmission lbs/kg 3,85 8/1,750 3,990/1,810 4,101/1,860>Automatic transmission lbs/kg 3,924/1,780 4,034/1,830 4,145/1,880Approved front axle load >Manual transmission lbs/kg 2,028/920 2,105/955 2,161/980>Automatic transmission lbs/kg 2,094/950 2,150/975 2,205/1,000Approved rear axle load lbs/kg 1,918/870 1,918/870 2,017/915Approved roof load capa city lbs/kg 165/75 165/75 165/75Cargo area capacity cu ft/liters1.2 - 41.3/350 - 1,1701.2 - 41.3/350 - 1,1701.2 - 41.3/350 - 1,170US gal/US quarts Liters NotesFuel tank 12.4/- approx. 47 Fuel grade: page 113including reserve of 2.1/- approx. 8Window washer system incl. headlamp washer system -/4.2 approx. 4 For more details: page 46
