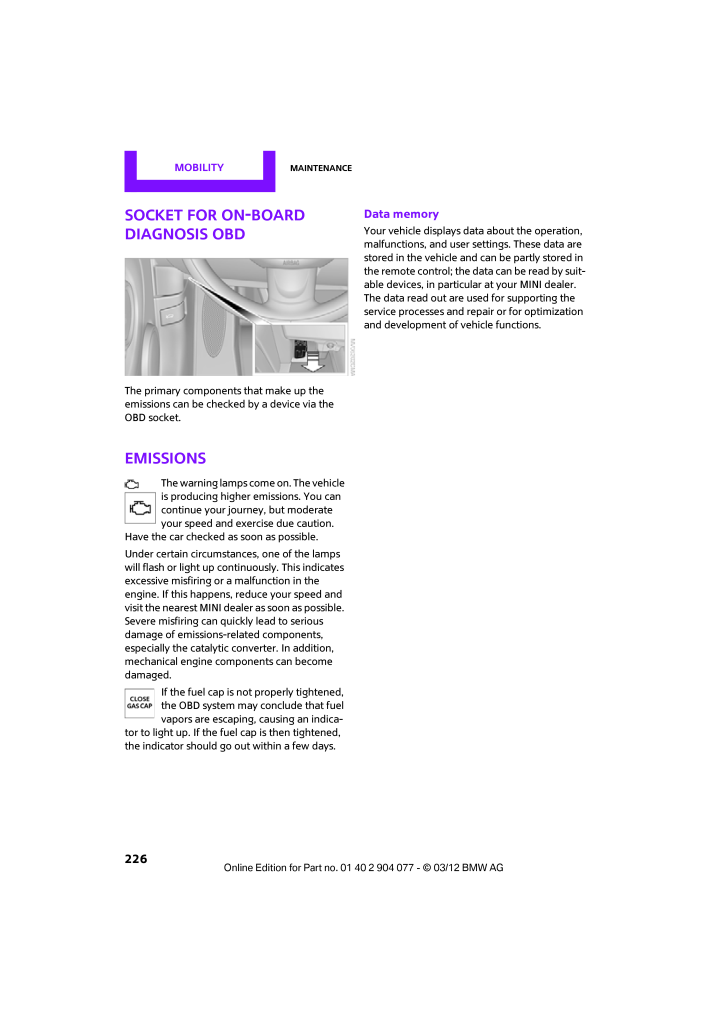

MOBILITY Maintenance226Socket for On-Board Diagnosis OBDThe primary components that make up the emissions can be checked by a device via the OBD socket.EmissionsThe warning lamps co me on. The vehicle is producing higher emissions. You can continue your journey, but moderate your speed and exercise due caution. Have the car checked as soon as possible.Under certain circumstances, one of the lamps will flash or light up cont inuously. This indicates excessive misfiring or a malfunction in the engine. If this happens, reduce your speed and visit the nearest MINI dealer as soon as possible. Severe misfiring can quickly lead to serious damage of emissions-related components, especially the catalytic converter. In addition, mechanical engine components can become damaged.If the fuel cap is not properly tightened, the OBD system may conclude that fuel vapors are escaping, causing an indica-tor to light up. If the fuel cap is then tightened, the indicator should go out within a few days.Data memoryYour vehicle displays data about the operation, malfunctions, and user settings. These data are stored in the vehicle and can be partly stored in the remote control; the data can be read by suit-able devices, in particul ar at your MINI dealer. The data read out are used for supporting the service processes and repair or for optimization and development of vehicle functions.
