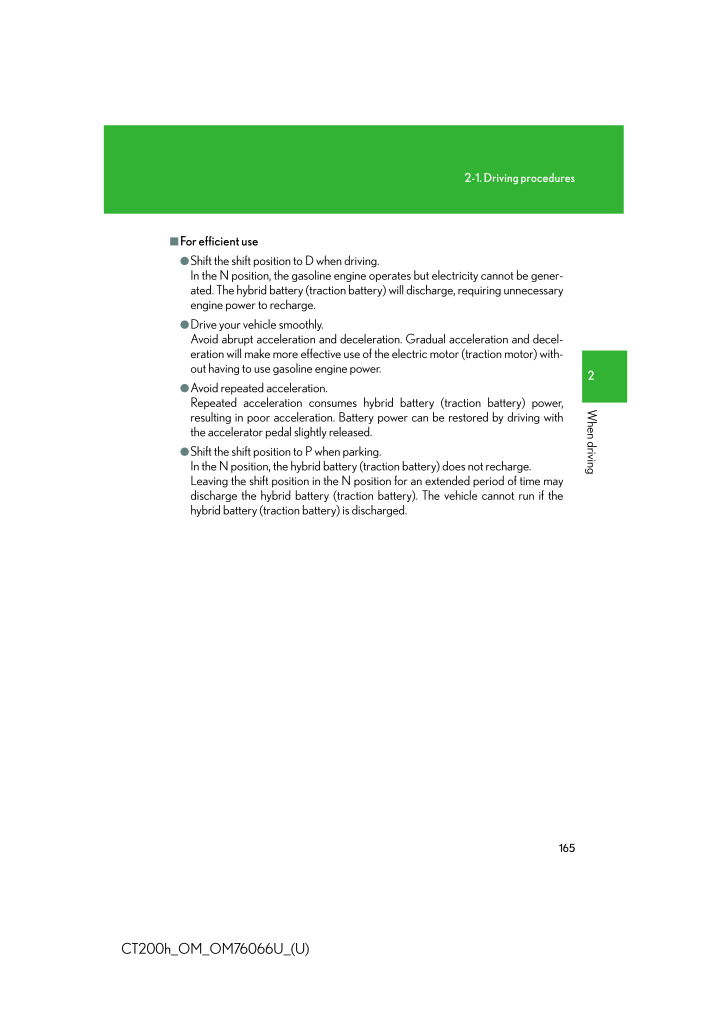

1652-1. Driving procedures2When drivingCT200h_OM_OM76066U_(U)■For efficient use●Shift the shift position to D when driving. In the N position, the gasoline engine operates but electricity cannot be gener-ated. The hybrid battery (traction battery) will discharge, requiring unnecessaryengine power to recharge.●Drive your vehicle smoothly. Avoid abrupt acceleration and deceleration. Gradual acceleration and decel-eration will make more effective use of the electric motor (traction motor) with-out having to use gasoline engine power.●Avoid repeated acceleration. Repeated acceleration consumes hybr id battery (traction battery) power,resulting in poor acceleration. Battery power can be restored by driving withthe accelerator pedal slightly released.●Shift the shift position to P when parking. In the N position, the hybrid battery (traction battery) does not recharge. Leaving the shift position in the N position for an extended period of time maydischarge the hybrid battery (traction battery). The vehicle cannot run if thehybrid battery (traction battery) is discharged.
参考になったと評価
3人が参考になったと評価しています。
このマニュアルの目次
-
1 .162CT200h_OM_OM76066U_(U)...162CT200h_OM_OM76066U_(U)2-1. Driving proceduresDriving the vehicleThe following procedures should be observed to ensure safe driving: ■Starting the hybrid system →P. 175■DrivingWith the brake pedal depressed, shift the shift position to D. (→P. 184) Chec...
-
2 .1632-1. Driving procedure...1632-1. Driving procedures2When drivingCT200h_OM_OM76066U_(U)Starting off on a uphillFirmly set the parking brake with the brake pedal depressed, andthen shift the shift position to D.Release the brake pedal and gently depress the acceleratorpedal. Releas...
-
3 .1642-1. Driving procedure...1642-1. Driving proceduresCT200h_OM_OM76066U_(U)■When starting off on a uphillThe hill-start assist control is available. ( →P. 271)■Driving in the rain●Drive carefully when it is raining, because visibility will be reduced, the windowsmay become fogged-up...
-
4 .1652-1. Driving procedure...1652-1. Driving procedures2When drivingCT200h_OM_OM76066U_(U)■For efficient use●Shift the shift position to D when driving. In the N position, the gasoline engine operates but electricity cannot be gener-ated. The hybrid battery (traction battery) will di...
-
5 .1662-1. Driving procedure...1662-1. Driving proceduresCT200h_OM_OM76066U_(U)CAUTION■When starting the vehicleAlways keep your foot on the brake pe dal while stopped with the hybrid systemoperating. This prevents the vehicle from creeping.■When driving the vehicle●Do not drive if you ...
-
6 .1672-1. Driving procedure...1672-1. Driving procedures2When drivingCT200h_OM_OM76066U_(U)CAUTION●If the smell of exhaust is noticed inside the vehicle, open the windows and checkthat the back door is closed. Large amounts of exhaust in the vehicle can causedriver drowsiness and an ac...
-
7 .1682-1. Driving procedure...1682-1. Driving proceduresCT200h_OM_OM76066U_(U)CAUTION●Do not drive in excess of the speed limit. Even if the legal speed limit permits it, donot drive over 85 mph (140 km/h) unless your vehicle has high-speed capabilitytires. Driving over 85 mph (140 km...
-
8 .1692-1. Driving procedure...1692-1. Driving procedures2When drivingCT200h_OM_OM76066U_(U)CAUTION■If you hear a squealing or scraping no ise (brake pad wear limit indicators)Have your Lexus dealer check and replac e the brake pads as soon as possible. Rotor damage may result if the pa...
-
9 .1702-1. Driving procedure...1702-1. Driving proceduresCT200h_OM_OM76066U_(U)CAUTION■When the vehicle is parked●Make sure to firmly apply the parking brake and shift the shift position to P.Failure to do so may cause the vehicle to move, or the vehicle to accelerate sud-denly if the ...
-
10 .1712-1. Driving procedure...1712-1. Driving procedures2When drivingCT200h_OM_OM76066U_(U)CAUTION●Do not touch the exhaust pipe while the hybrid system is operating or immedi-ately after turning the hybrid system off. Doing so may cause burns.●Do not leave the hybrid system operating ...
-
11 .1722-1. Driving procedure...1722-1. Driving proceduresCT200h_OM_OM76066U_(U)CAUTION■When taking a nap in the vehicleAlways turn the hybrid system off. Otherwise, if you accidentally move the shiftlever or depress the accelerator pedal, this could cause an accident or fire due tohybri...
-
12 .1732-1. Driving procedure...1732-1. Driving procedures2When drivingCT200h_OM_OM76066U_(U)NOTICE■When driving the vehicle●Do not depress the accelerator and brake pe dals at the same time during driving,as this may restrain driving torque.●Do not use the accelerator pedal or depress t...
-
13 .1742-1. Driving procedure...1742-1. Driving proceduresCT200h_OM_OM76066U_(U)NOTICE■When encountering flooded roadsDo not drive on a road that has flooded after heavy rain etc. Doing so may cause thefollowing serious damage to the vehicle:●Engine stalling●Short in electrical component...
-
14 .1752-1. Driving procedure...1752-1. Driving procedures2When drivingCT200h_OM_OM76066U_(U)Power (ignition) switchPerforming the following operations when carrying the electronic key onyour person starts the hybrid system or changes "POWER" switch modes.■Starting the hybrid systemCheck...
-
15 .1762-1. Driving procedure...1762-1. Driving proceduresCT200h_OM_OM76066U_(U)Check that the "READY" indicator is on.If the "READY" indicator changes from a flashing light to a solid lightand the buzzer sounds, the hybrid system is starting normally.The vehicle will not move when the ...
-
16 .1772-1. Driving procedure...1772-1. Driving procedures2When drivingCT200h_OM_OM76066U_(U)■Auto power off functionIf the vehicle is left in ACCESSORY mode for more than 20 minutes or ON mode(the hybrid system is not operating) for more than an hour with the shift position in P,the "PO...
-
17 .1782-1. Driving procedure...1782-1. Driving proceduresCT200h_OM_OM76066U_(U)■Electronic key battery depletion→P. 71■When the ambient temperature is low, such as during winter driving conditionsIt may take time until the "READY" indicator to come on.■Conditions affecting operation→P. ...
-
18 .1792-1. Driving procedure...1792-1. Driving procedures2When drivingCT200h_OM_OM76066U_(U)■Operation of the "POWER" switch●When operating the "POWER" switch, one short, firm press is enough. If theswitch is pressed improperly, the hybrid system may not start or the "POWER"switch mode ...
-
19 .1802-1. Driving procedure...1802-1. Driving proceduresCT200h_OM_OM76066U_(U)NOTICE■To prevent 12-volt battery discharge●Do not leave the "POWER" switch in ACCESSORY or ON mode for long peri-ods of time without the hybrid system on.●If the hybrid system is off, but the indi cator on t...
-
20 .1812-1. Driving procedure...1812-1. Driving procedures2When drivingCT200h_OM_OM76066U_(U)EV drive modeIn EV drive mode, the electric motor (traction motor), powered by thehybrid battery (traction battery) , is used to drive the vehicle.This mode allows you to drive in residential are...
-
21 .1822-1. Driving procedure...1822-1. Driving proceduresCT200h_OM_OM76066U_(U)■Situations in which EV drive mode cannot be turned onIt may not be possible to turn EV drive mode on in the following situations. If it can-not be turned on, a buzzer will sound and a message will be shown ...
-
22 .1832-1. Driving procedure...1832-1. Driving procedures2When drivingCT200h_OM_OM76066U_(U)■Automatic cancellation of EV drive modeWhen driving in EV drive mode, the gasoline engine may automatically restart inthe following situations. When EV drive mo de is canceled, a buzzer will sou...
-
23 .1842-1. Driving procedure...1842-1. Driving proceduresCT200h_OM_OM76066U_(U)Hybrid transmissionSelect a shift position appropriate for the driving conditions.■Shifting the shift leverShift leverOperate the shift lever gently and ensure correct shifting operation.When shifting to the ...
-
24 .1852-1. Driving procedure...1852-1. Driving procedures2When drivingCT200h_OM_OM76066U_(U)Shift position indicatorThe current shift position is illuminated.When any shift position other than D or B is selected, the arrow toward Band B position indicator disappear from the shift posit...
-
25 .1862-1. Driving procedure...1862-1. Driving proceduresCT200h_OM_OM76066U_(U)■Selecting a driving modeThe following modes can be selected to suit driving conditions:Normal modeEco drive modeSuitable for improving the fueleconomy, because the torquecorresponding to the accelera-tor ped...
-
26 .1872-1. Driving procedure...1872-1. Driving procedures2When drivingCT200h_OM_OM76066U_(U)P position switch■When shifting the shift position to PFully stop the vehicle and set theparking brake, and then press theP position switch.When the shift position is changedto P, the switch indi...
-
27 .1882-1. Driving procedure...1882-1. Driving proceduresCT200h_OM_OM76066U_(U)■Operation of the air conditioning system in Eco drive mode (without navigationsystem)Eco drive mode controls the heating/cooling operations and fan speed of the airconditioning system to enhance fuel efficie...
-
28 .1892-1. Driving procedure...1892-1. Driving procedures2When drivingCT200h_OM_OM76066U_(U)In addition, if an attempt is made to chan ge the shift position by moving the shiftlever in any of the following situations, th e buzzer will sound and the shifting opera-tion will be disabled o...
-
29 .1902-1. Driving procedure...1902-1. Driving proceduresCT200h_OM_OM76066U_(U)■Reverse warning buzzerWhen shifting into R, a buzzer will sound to inform the driver that the shift position isin R.■About engine braking When shift position B is selected, releasing the accelerator pedal w...
-
30 .1912-1. Driving procedure...1912-1. Driving procedures2When drivingCT200h_OM_OM76066U_(U)■After recharging/reconnecting the 12-volt battery→P. 542■CustomizationSettings (e.g. Reverse warning buzzer) can be changed. (Customizable features →P. 709)CAUTION■When driving on slippery road ...
-
31 .1922-1. Driving procedure...1922-1. Driving proceduresCT200h_OM_OM76066U_(U)NOTICE■Hybrid battery (traction battery) chargeIf the shift position is in N, the hybrid battery (traction battery) will not be charged.To help prevent the battery from discharg ing, avoid leaving the N posit...
-
32 .1932-1. Driving procedure...1932-1. Driving procedures2When drivingCT200h_OM_OM76066U_(U)Turn signal lever■Turn signals can be operated whenThe "POWER" switch is in ON mode.■If the indicator flashes faster than usualCheck that a light bulb in the front or re ar turn signal lights has...
-
33 .1942-1. Driving procedure...1942-1. Driving proceduresCT200h_OM_OM76066U_(U)Parking brake■Parking brake engaged warning buzzerThe buzzer sounds to indicate that parkin g brake is still engaged (with the vehiclehaving reached a speed of 3 mph [5 km/h]). ( →P. 624)■Usage in winter time...
-
34 .1952-1. Driving procedure...1952-1. Driving procedures2When drivingCT200h_OM_OM76066U_(U)Horn■After adjusting the steering wheel Make sure that the steering wheel is securely locked. The horn may not sound if the steeri ng wheel is not securely locked. ( →P. 100)To sound the horn, pr...
