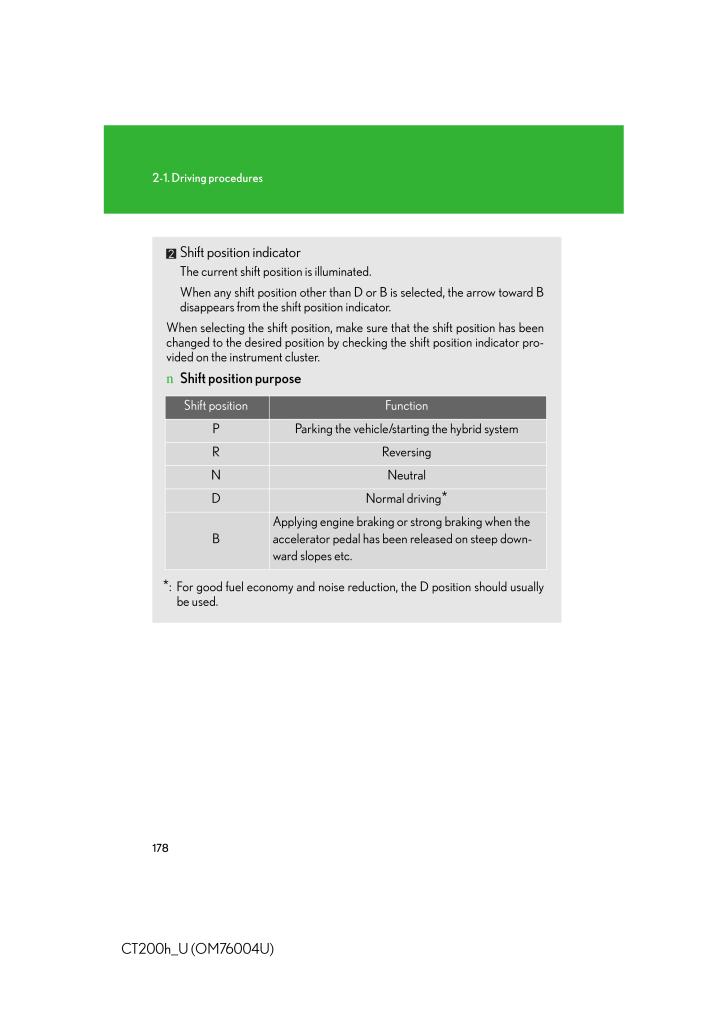

1782-1. Driving proceduresCT200h_U (OM76004U)Shift position indicatorThe current shift position is illuminated.When any shift position other than D or B is selected, the arrow toward B disappears from the shift position indicator.When selecting the shift position, make sure that the shift position has been changed to the desired position by chec king the shift position indicator pro-vided on the instrument cluster.nShift position purpose*: For good fuel economy and noise redu ction, the D position should usually be used.Shift position Function P Parking the vehicle/starting the hybrid systemR ReversingN NeutralD Normal driving *BApplying engine braking or strong braking when the accelerator pedal has been released on steep down-ward slopes etc.
