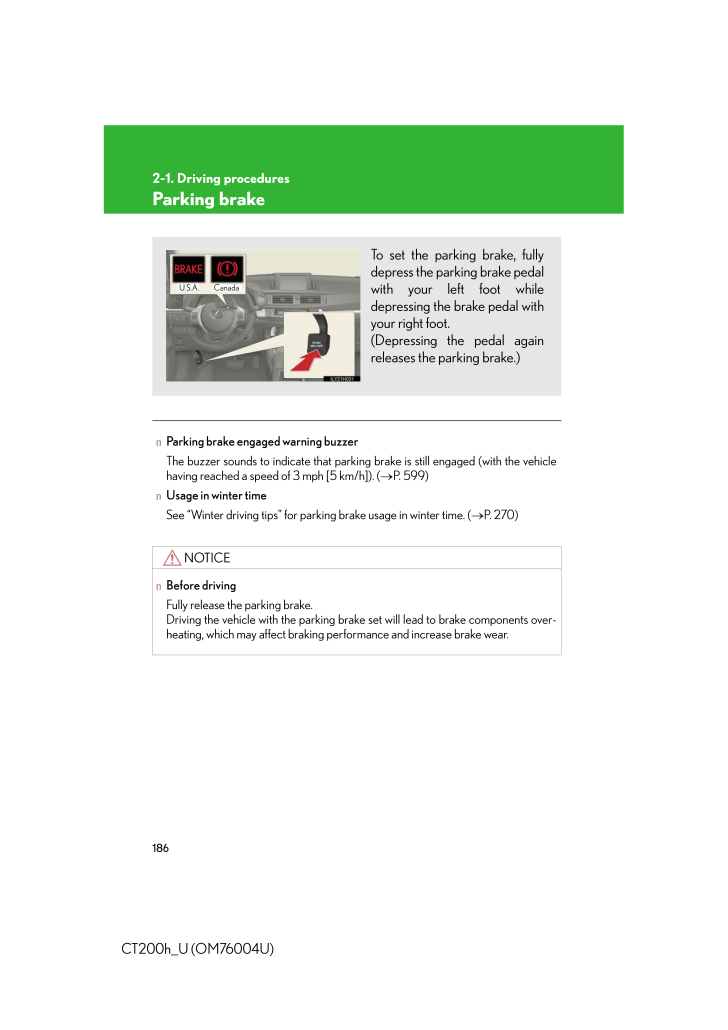

1862-1. Driving proceduresCT200h_U (OM76004U)Parking brakenParking brake engaged warning buzzerThe buzzer sounds to indicate that parkin g brake is still engaged (with the vehicle having reached a speed of 3 mph [5 km/h]). ( →P. 599)nUsage in winter timeSee "Winter driving tips" for parking brake usage in winter time. ( →P. 270)NOTICEnBefore drivingFully release the parking brake. Driving the vehicle with the parking brake set will lead to brake components over-heating, which may affect braking performance and increase brake wear.To set the parking brake, fully depress the parking brake pedal with your left foot while depressing the brake pedal with your right foot. (Depressing the pedal again releases the parking brake.)U.S.A.Canada
