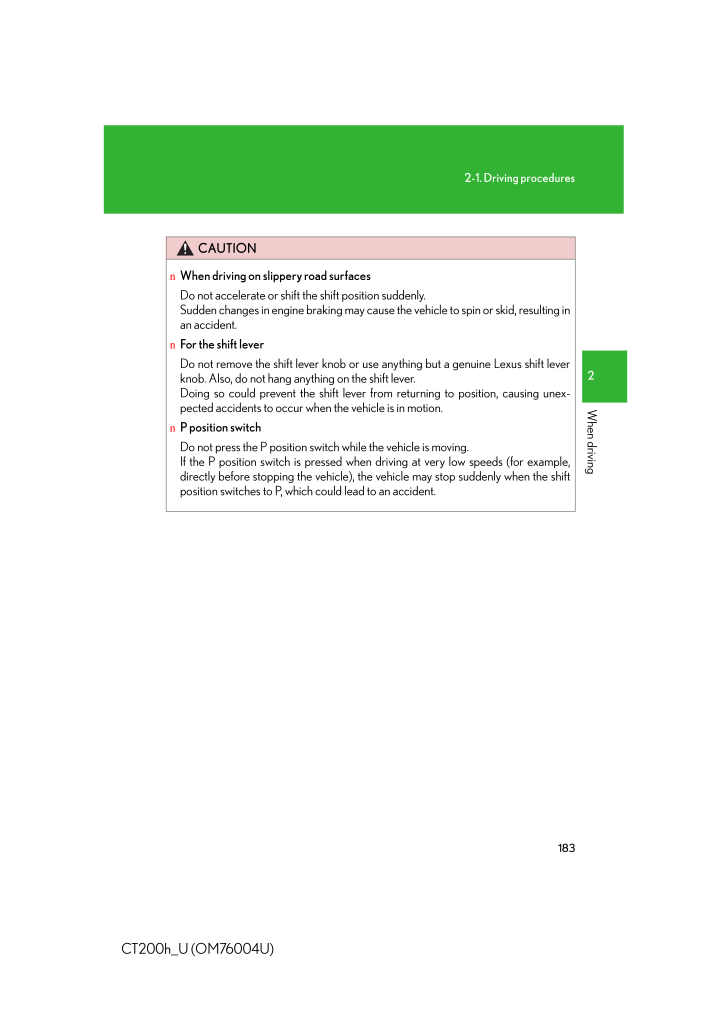

1832-1. Driving procedures2When drivingCT200h_U (OM76004U)CAUTIONnWhen driving on slippery road surfacesDo not accelerate or shift the shift position suddenly. Sudden changes in engine braking may cause the vehicle to spin or skid, resulting in an accident.nFor the shift leverDo not remove the shift lever knob or use anything but a genuine Lexus shift lever knob. Also, do not hang anything on the shift lever. Doing so could prevent the shift lever fr om returning to position, causing unex-pected accidents to occur when the vehicle is in motion.nP position switchDo not press the P position switch while the vehicle is moving. If the P position switch is pressed when driving at very low speeds (for example, directly before stopping the vehicle), the vehicle may stop suddenly when the shift position switches to P, which could lead to an accident.
