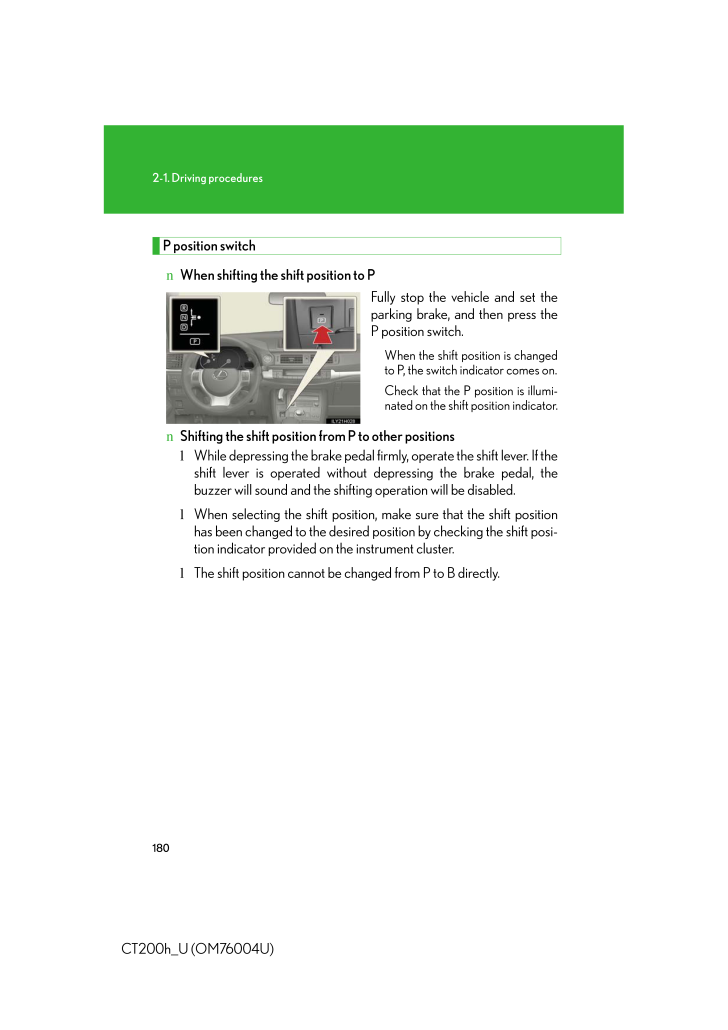

1802-1. Driving proceduresCT200h_U (OM76004U)P position switchnWhen shifting the shift position to PFully stop the vehicle and set the parking brake, and then press the P position switch.When the shift position is changed to P, the switch indicator comes on.Check that the P position is illumi-nated on the shift position indicator.nShifting the shift position from P to other positionslWhile depressing the brake pedal firmly, operate the shift lever. If the shift lever is operated without depressing the brake pedal, the buzzer will sound and the shifting operation will be disabled.lWhen selecting the shift position, make sure that the shift position has been changed to the desired po sition by checking the shift posi-tion indicator provided on the instrument cluster.lThe shift position cannot be changed from P to B directly.
参考になったと評価
3人が参考になったと評価しています。
このマニュアルの目次
-
1 .156CT200h_U (OM76004U)2-1...156CT200h_U (OM76004U)2-1. Driving proceduresDriving the vehicleThe following procedures should be observed to ensure safe driving: nStarting the hybrid system →P. 169nDrivingWith the brake pedal depressed, select the D position. (→P. 177) Check that th...
-
2 .1572-1. Driving procedure...1572-1. Driving procedures2When drivingCT200h_U (OM76004U)Starting off on a uphillFirmly set the parking brake with the brake pedal depressed, and then select the D position.Release the brake pedal and gently depress the accelerator pedal. Release the par...
-
3 .1582-1. Driving procedure...1582-1. Driving proceduresCT200h_U (OM76004U)nWhen starting off on a uphillThe hill-start assist control is available. ( →P. 254)nDriving in the rainlDrive carefully when it is raining, because visibility will be reduced, the windows may become fogged-up, ...
-
4 .1592-1. Driving procedure...1592-1. Driving procedures2When drivingCT200h_U (OM76004U)nFor efficient uselShift the shift position to D when driving. In the N position, the gasoline engine operates but electricity cannot be gener-ated. The hybrid battery (traction battery) will dis...
-
5 .1602-1. Driving procedure...1602-1. Driving proceduresCT200h_U (OM76004U)CAUTIONnWhen starting the vehicleAlways keep your foot on the brake peda l while stopped with the hybrid system operating. This prevents the vehicle from creeping.nWhen driving the vehiclelDo not drive if you ar...
-
6 .1612-1. Driving procedure...1612-1. Driving procedures2When drivingCT200h_U (OM76004U)CAUTIONlIf the smell of exhaust is noticed inside the vehicle, open the windows and check that the back door is closed. Large amounts of exhaust in the vehicle can cause driver drowsiness and an acc...
-
7 .1622-1. Driving procedure...1622-1. Driving proceduresCT200h_U (OM76004U)CAUTIONlDo not drive in excess of the speed limit. Even if the legal speed limit permits it, do not drive over 85 mph (140 km/h) unless your vehicle has high-speed capability tires. Driving over 85 mph (140 km/...
-
8 .1632-1. Driving procedure...1632-1. Driving procedures2When drivingCT200h_U (OM76004U)CAUTIONnIf you hear a squealing or scraping no ise (brake pad wear limit indicators)Have your Lexus dealer check and replac e the brake pads as soon as possible. Rotor damage may result if the pa ...
-
9 .1642-1. Driving procedure...1642-1. Driving proceduresCT200h_U (OM76004U)CAUTIONnWhen the vehicle is parkedlMake sure to firmly apply the park ing brake and select the P position. Failure to do so may cause the vehicle to move, or the vehicle to accelerate sud-denly if the accelera...
-
10 .1652-1. Driving procedure...1652-1. Driving procedures2When drivingCT200h_U (OM76004U)CAUTIONlDo not touch the exhaust pipe while the hybrid system is operating or immedi-ately after turning the hybrid system off. Doing so may cause burns.lDo not leave the hybrid system operating i...
-
11 .1662-1. Driving procedure...1662-1. Driving proceduresCT200h_U (OM76004U)CAUTIONnWhen taking a nap in the vehicleAlways turn the hybrid system off. Otherwise, if you accidentally move the shift lever or depress the accelerator pedal, this could cause an accident or fire due to hybrid...
-
12 .1672-1. Driving procedure...1672-1. Driving procedures2When drivingCT200h_U (OM76004U)NOTICEnWhen driving the vehiclelDo not depress the accelerator and brake pe dals at the same time during driving. If the brake pedal is depressed whil e driving with the accelerator pedal depressed,...
-
13 .1682-1. Driving procedure...1682-1. Driving proceduresCT200h_U (OM76004U)NOTICEnWhen encountering flooded roadsDo not drive on a road that has flooded after heavy rain etc. Doing so may cause the following serious damage to the vehicle:lEngine stallinglShort in electrical componentsl...
-
14 .1692-1. Driving procedure...1692-1. Driving procedures2When drivingCT200h_U (OM76004U)Power (ignition) switchPerforming the following operations when carrying the electronic key on your person starts the hybrid system or changes "POWER" switch modes.nStarting the hybrid systemCheck t...
-
15 .1702-1. Driving procedure...1702-1. Driving proceduresCT200h_U (OM76004U)nStopping the hybrid systemStop the vehicle completely.Set the parking brake. (→P. 186)Select the P position. (→P. 180)Check that the shift position indicator shows P. ( →P. 177)Press the "POWER" switch.The hybr...
-
16 .1712-1. Driving procedure...1712-1. Driving procedures2When drivingCT200h_U (OM76004U)nAuto power off functionIf the vehicle is left in ACCESSORY or ON mode (the hybrid system is not operat-ing) for more than an hour with the shif t position in P, the "POWER" switch will automaticall...
-
17 .1722-1. Driving procedure...1722-1. Driving proceduresCT200h_U (OM76004U)nOperation of the "POWER" switchlWhen operating the "POWER" switch, one short, firm press is enough. If the switch is pressed improperly, the hybrid system may not start or the "POWER" switch mode may not change...
-
18 .1732-1. Driving procedure...1732-1. Driving procedures2When drivingCT200h_U (OM76004U)NOTICEnTo prevent 12-volt battery dischargelDo not leave the "POWER" switch in ACCESSORY or ON mode for long peri-ods of time without the hybrid system on.lIf the hybrid system is off, but the indic...
-
19 .1742-1. Driving procedure...1742-1. Driving proceduresCT200h_U (OM76004U)EV drive modeIn EV drive mode, the electric motor (traction motor), powered by the hybrid battery (traction battery) , is used to drive the vehicle.This mode allows you to drive in residential areas late at nigh...
-
20 .1752-1. Driving procedure...1752-1. Driving procedures2When drivingCT200h_U (OM76004U)nSituations in which EV drive mode cannot be turned onIt may not be possible to turn EV drive mode on in the following situations. If it can-not be turned on, a buzzer will sound and a message will ...
-
21 .1762-1. Driving procedure...1762-1. Driving proceduresCT200h_U (OM76004U)n Possible driving distance when driving in EV drive modeIn EV drive mode, it is possible to drive up to about 1/2 mile (1 km) if driving at a speed of about 25 mph (40 km/h) or less. (The distance that is pos...
-
22 .1772-1. Driving procedure...1772-1. Driving procedures2When drivingCT200h_U (OM76004U)Hybrid transmissionSelect a shift position appropriate for the driving conditions.nShifting the shift leverShift leverOperate the shift lever gently and ensure correct shifting operation.When shifti...
-
23 .1782-1. Driving procedure...1782-1. Driving proceduresCT200h_U (OM76004U)Shift position indicatorThe current shift position is illuminated.When any shift position other than D or B is selected, the arrow toward B disappears from the shift position indicator.When selecting the shift p...
-
24 .1792-1. Driving procedure...1792-1. Driving procedures2When drivingCT200h_U (OM76004U)nSelecting a driving modeThe following modes can be selected to suit driving conditions:Normal modeEco drive modeUse Eco drive mode to help achieve low fuel consumption during trips that involve fre...
-
25 .1802-1. Driving procedure...1802-1. Driving proceduresCT200h_U (OM76004U)P position switchnWhen shifting the shift position to PFully stop the vehicle and set the parking brake, and then press the P position switch.When the shift position is changed to P, the switch indicator comes o...
-
26 .1812-1. Driving procedure...1812-1. Driving procedures2When drivingCT200h_U (OM76004U)nOperation of the air conditioning system in Eco drive mode (without navigation system)Eco drive mode controls the heating/cooling operations and fan speed of the air conditioning system to enhance ...
-
27 .1822-1. Driving procedure...1822-1. Driving proceduresCT200h_U (OM76004U)nReverse warning buzzerWhen shifting into R, a buzzer will sound to inform the driver that the shift position is in R.nAbout engine braking When shift position B is selected, releasing the accelerator pedal wil...
-
28 .1832-1. Driving procedure...1832-1. Driving procedures2When drivingCT200h_U (OM76004U)CAUTIONnWhen driving on slippery road surfacesDo not accelerate or shift the shift position suddenly. Sudden changes in engine braking may cause the vehicle to spin or skid, resulting in an accide...
-
29 .1842-1. Driving procedure...1842-1. Driving proceduresCT200h_U (OM76004U)NOTICEnHybrid battery (traction battery) chargeIf the shift position is in N, the hybrid battery (traction battery) will not be charged. To help prevent the battery from dischargin g, avoid leaving the N positio...
-
30 .1852-1. Driving procedure...1852-1. Driving procedures2When drivingCT200h_U (OM76004U)Turn signal levernTurn signals can be operated whenThe "POWER" switch is in ON mode.nIf the indicator flashes faster than usualCheck that a light bulb in the front or re ar turn signal lights has no...
-
31 .1862-1. Driving procedure...1862-1. Driving proceduresCT200h_U (OM76004U)Parking brakenParking brake engaged warning buzzerThe buzzer sounds to indicate that parkin g brake is still engaged (with the vehicle having reached a speed of 3 mph [5 km/h]). ( →P. 599)nUsage in winter timeSe...
-
32 .1872-1. Driving procedure...1872-1. Driving procedures2When drivingCT200h_U (OM76004U)HornnAfter adjusting the steering wheel Make sure that the steering wheel is securely locked. The horn may not sound if the steeri ng wheel is not securely locked. ( →P. 94)To sound the horn, pres...
