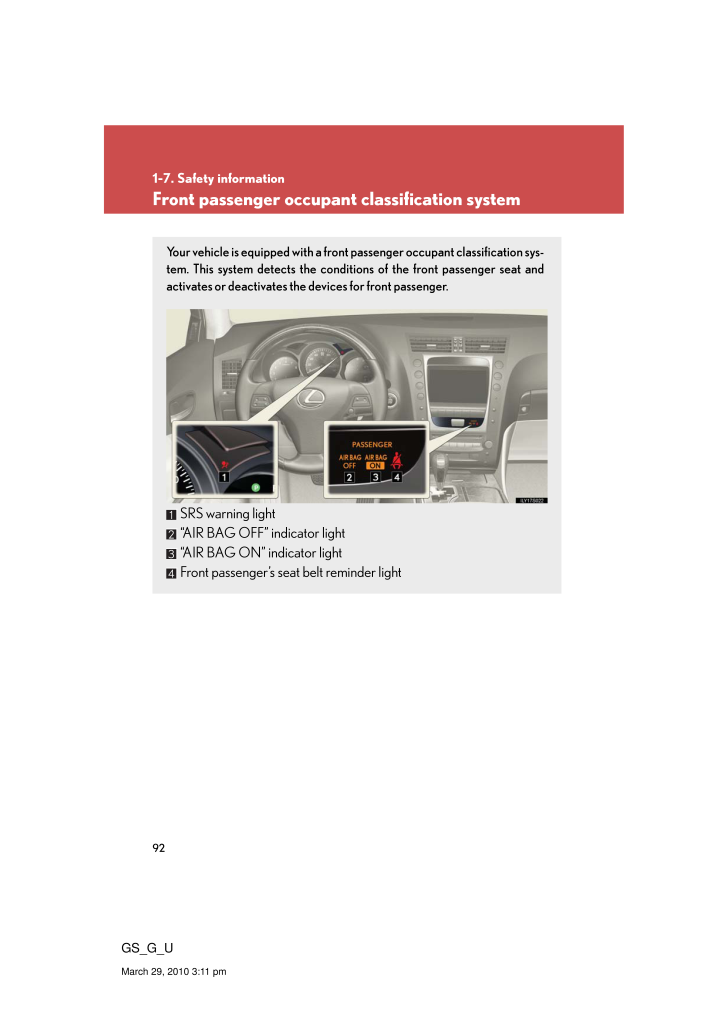

921-7. Safety informationGS_G_UMarch 29, 2010 3:11 pmFront passenger occupant classification systemYour vehicle is equipped with a front passenger occupant classification sys-tem. This system detects the conditions of the front passenger seat and activates or deactivates the devices for front passenger.SRS warning light"AIR BAG OFF" indicator light"AIR BAG ON" indicator lightFront passenger's seat belt reminder light
