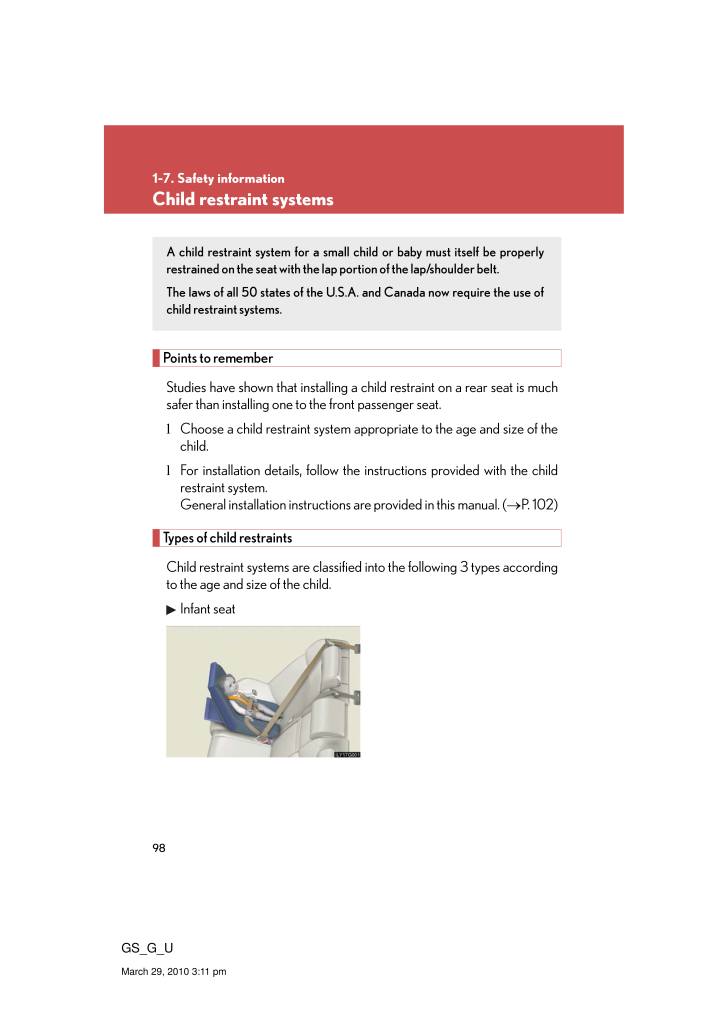

981-7. Safety informationGS_G_UMarch 29, 2010 3:11 pmChild restraint systemsPoints to rememberStudies have shown that installing a ch ild restraint on a rear seat is much safer than installing one to the front passenger seat. l Choose a child restraint system appropriate to the age and size of the child. l For installation details, follow the instructions provided with the child restraint system. General installation instructions are provided in this manual. (→ P. 102)Types of child restraintsChild restraint systems are classified into the following 3 types according to the age and size of the child. Infant seatA child restraint system for a small child or baby must itself be properly restrained on the seat with the lap portion of the lap/shoulder belt.The laws of all 50 states of the U.S.A. and Canada now require the use of child restraint systems.
