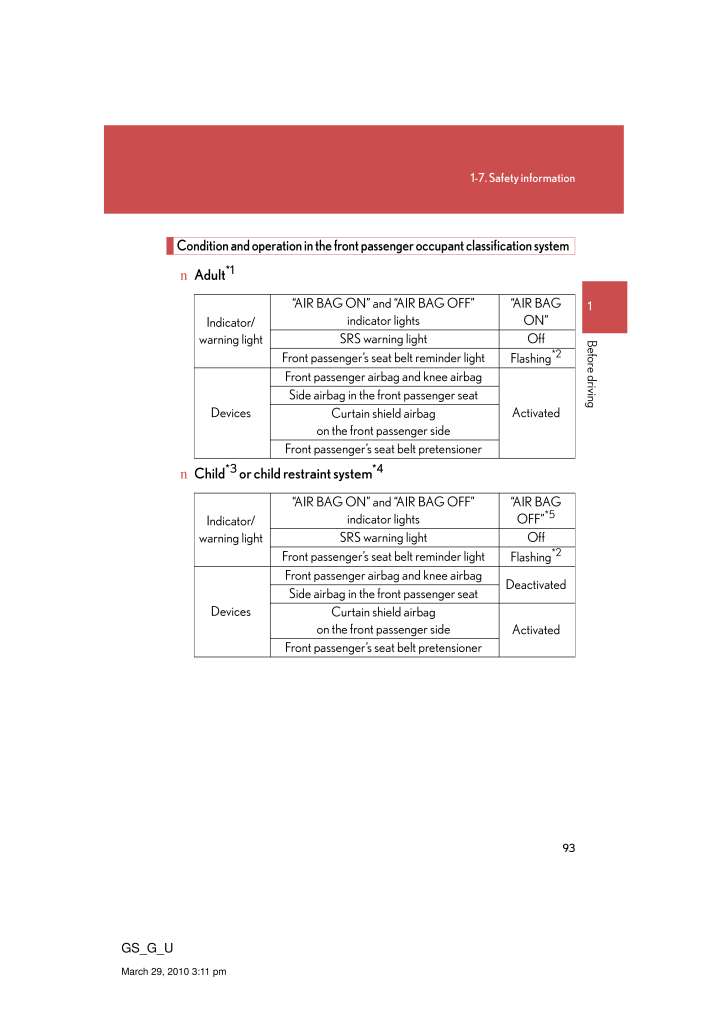

931-7. Safety information1Before drivingGS_G_UMarch 29, 2010 3:11 pmCondition and operation in the front passenger occupant classification systemn Adult*1n Child*3 or child restraint system*4Indicator/warning light"AIR BAG ON" and "AIR BAG OFF"indicator lights"AIR BAG ON"SRS warning light OffFront passenger's seat belt reminder lightFlashing*2DevicesFront passenger airbag and knee airbagActivatedSide airbag in the front passenger seatCurtain shield airbagon the front passenger sideFront passenger's seat belt pretensionerIndicator/warning light"AIR BAG ON" and "AIR BAG OFF"indicator lights"AIR BAG OFF"*5SRS warning light OffFront passenger's seat belt reminder lightFlashing*2DevicesFront passenger airbag and knee airbagDeactivatedSide airbag in the front passenger seatCurtain shield airbagon the front passenger sideActivatedFront passenger's seat belt pretensioner
