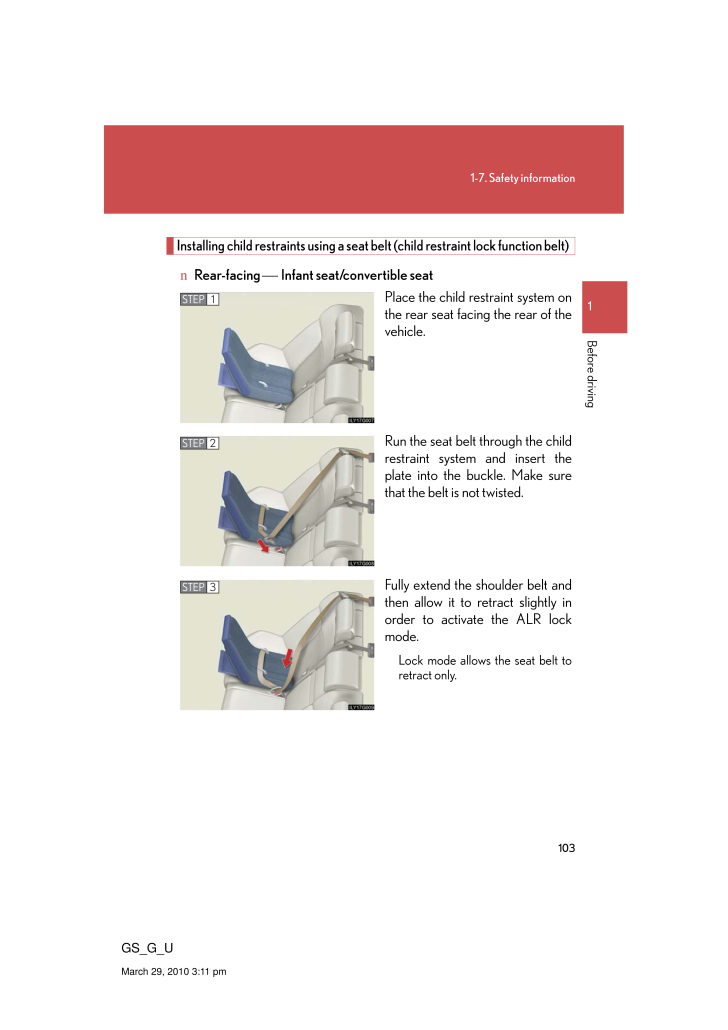

1031-7. Safety information1Before drivingGS_G_UMarch 29, 2010 3:11 pmInstalling child restraints using a seat belt (child restraint lock function belt)n Rear-facing ⎯ Infant seat/convertible seatPlace the child restraint system on the rear seat facing the rear of the vehicle.Run the seat belt through the child restraint system and insert the plate into the buckle. Make sure that the belt is not twisted.Fully extend the shoulder belt and then allow it to retract slightly in order to activate the ALR lock mode.Lock mode allows the seat belt to retract only. STEP 1STEP 2STEP 3
