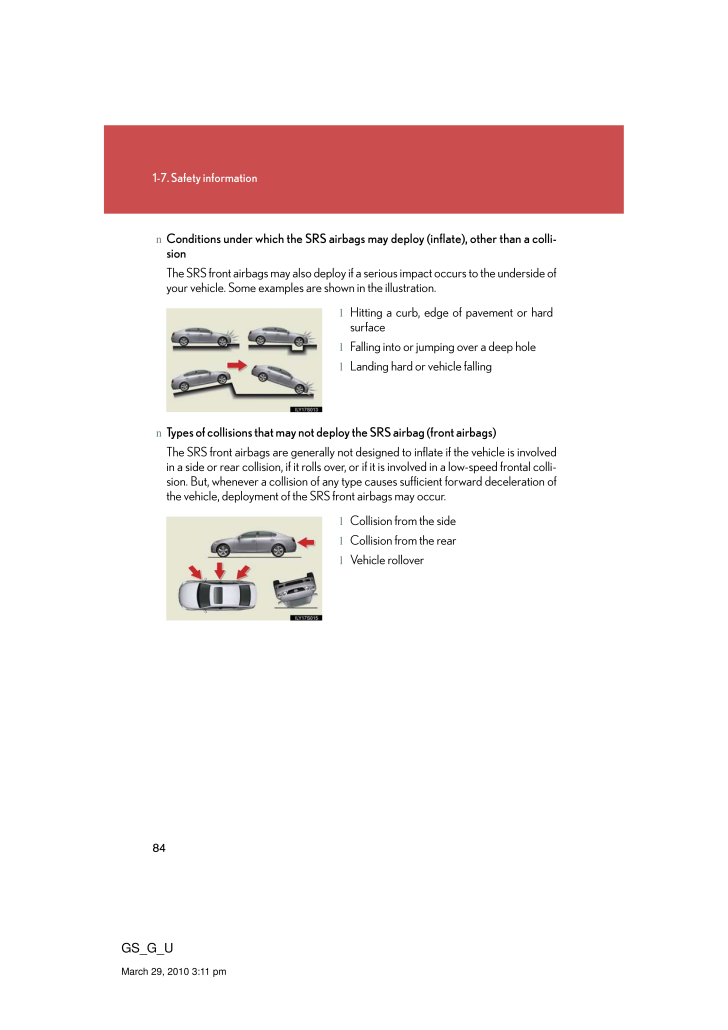

841-7. Safety informationGS_G_UMarch 29, 2010 3:11 pmnConditions under which the SRS airbags may deploy (inflate), other than a colli-sionThe SRS front airbags may also deploy if a serious impact occurs to the underside of your vehicle. Some examples are shown in the illustration.nTypes of collisions that may not deploy the SRS airbag (front airbags)The SRS front airbags are generally not designed to inflate if the vehicle is involved in a side or rear collision, if it rolls over, or if it is involved in a low-speed frontal colli-sion. But, whenever a collision of any type causes sufficient forward deceleration of the vehicle, deployment of the SRS front airbags may occur.lHitting a curb, edge of pavement or hard surfacelFalling into or jumping over a deep holelLanding hard or vehicle fallinglCollision from the sidelCollision from the rearlVehicle rollover
