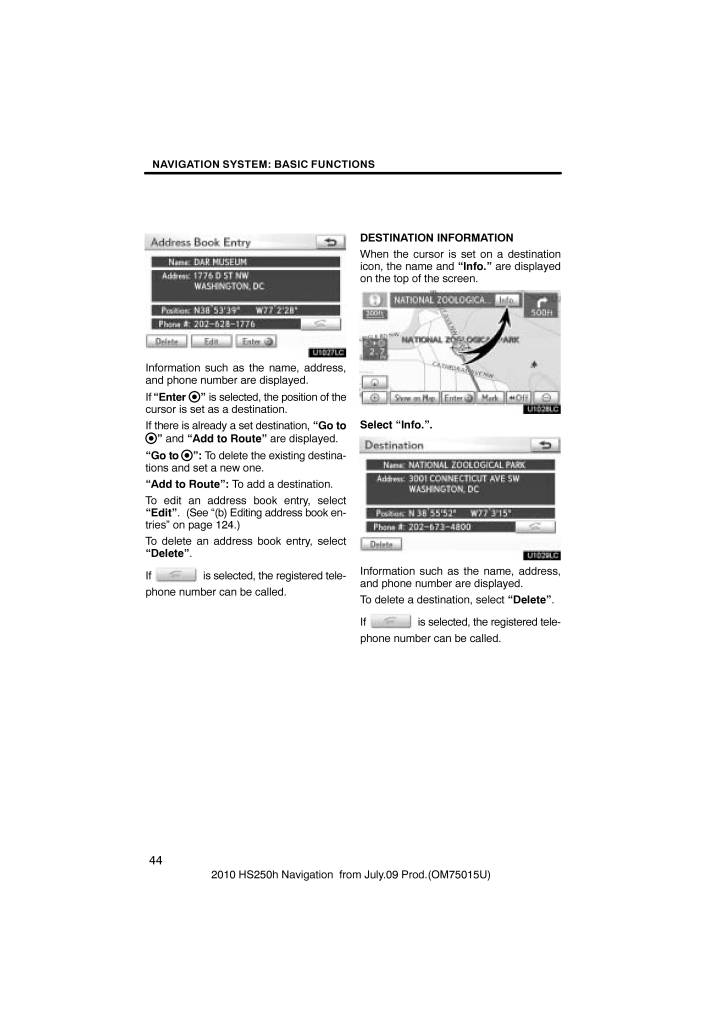

NAVIGATION SYSTEM: BASIC FUNCTIONS442010 HS250h Navigation from July.09 Prod.(OM75015U)U1027LCInformation such as the name, address,and phone number are displayed.If Enter is selected, the position of thecursor is set as a destination.If there is already a set destination, Go to and Add to Route are displayed.Go to : To delete the existing destina-tions and set a new one.Add to Route: To add a destination.To edit an address book entry, selectEdit. (See (b) Editing address book en-tries on page 124.)To delete an address book entry, selectDelete.If is selected, the registered tele-phone number can be called.DESTINATION INFORMATIONWhen the cursor is set on a destinationicon, the name and Info. are displayedon the top of the screen.U1028LCSelect Info..U1029LCInformation such as the name, address,and phone number are displayed.To delete a destination, select Delete.If is selected, the registered tele-phone number can be called.
