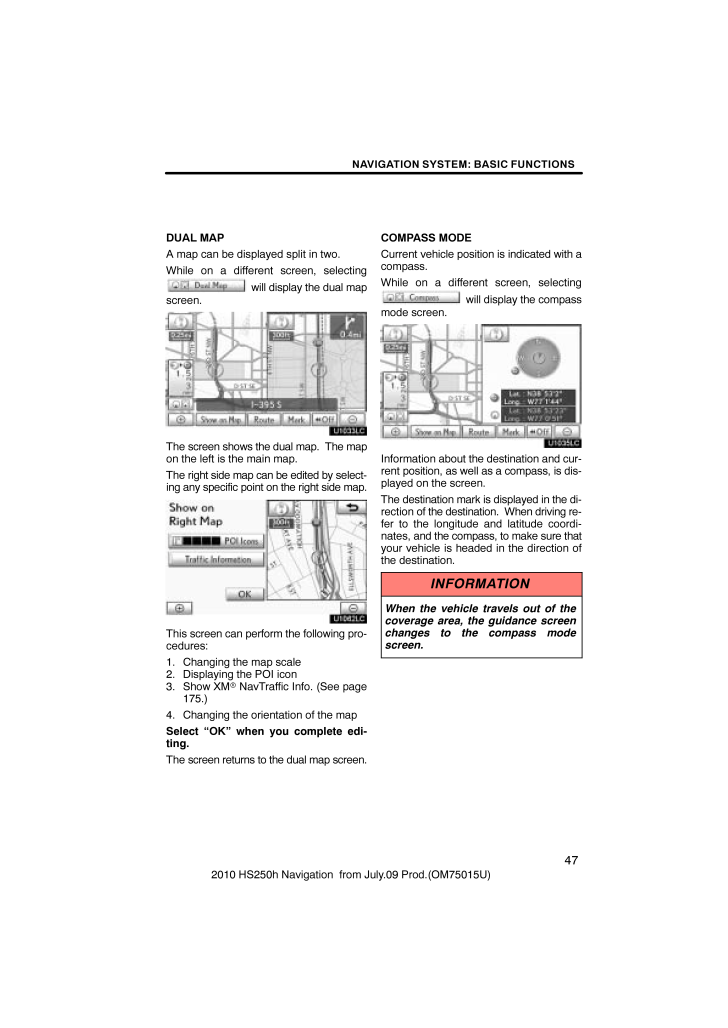

NAVIGATION SYSTEM: BASIC FUNCTIONS472010 HS250h Navigation from July.09 Prod.(OM75015U)DUAL MAPA map can be displayed split in two. While on a different screen, selecting will display the dual mapscreen.U1033LCThe screen shows the dual map. The mapon the left is the main map.The right side map can be edited by select-ing any specific point on the right side map.U1062LCThis screen can perform the following pro-cedures:1. Changing the map scale2. Displaying the POI icon3. Show XM NavTraffic Info. (See page175.)4. Changing the orientation of the mapSelect OK when you complete edi-ting.The screen returns to the dual map screen.COMPASS MODECurrent vehicle position is indicated with acompass.While on a different screen, selecting will display the compassmode screen.U1035LCInformation about the destination and cur-rent position, as well as a compass, is dis-played on the screen.The destination mark is displayed in the di-rection of the destination. When driving re-fer to the longitude and latitude coordi-nates, and the compass, to make sure thatyour vehicle is headed in the direction ofthe destination.INFORMATIONWhen the vehicle travels out of thecoverage area, the guidance screenchanges to the compass modescreen.
