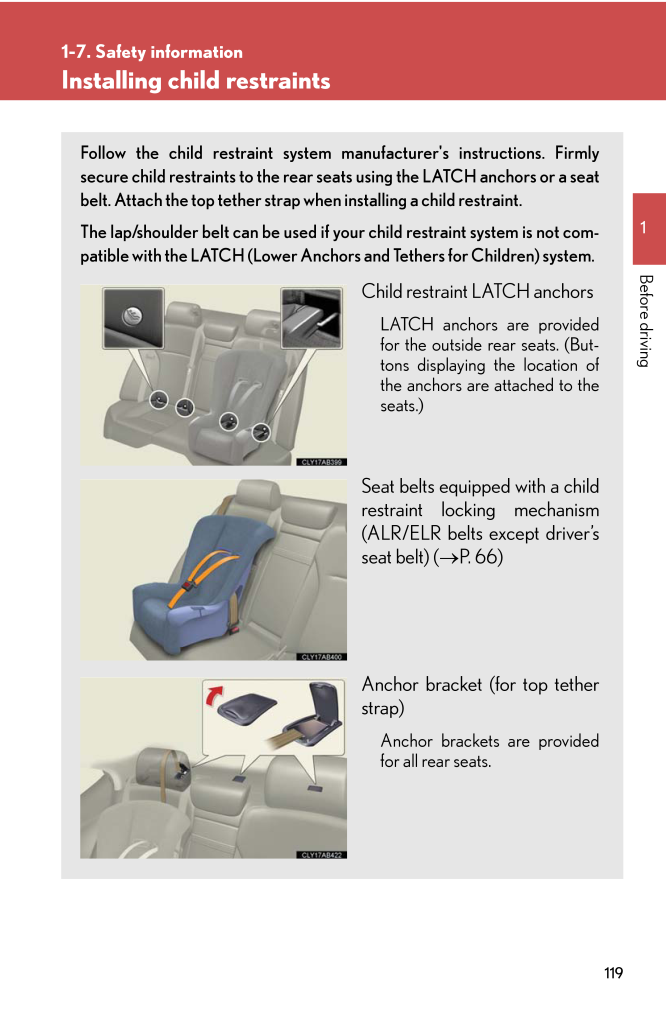

11911-7. Safety informationBefore drivingInstalling child restraintsFollow the child restraint system ma nufacturer's instructions. Firmlysecure child restraints to the rear seats using the LATCH anchors or a seatbelt. Attach the top tether strap when installing a child restraint.The lap/shoulder belt can be used if your child restraint system is not com-patible with the LATCH (Lower Anchor s and Tethers for Children) system.Child restraint LATCH anchorsLATCH anchors are providedfor the outside rear seats. (But-tons displaying the location ofthe anchors are attached to theseats.) Seat belts equipped with a childrestraint locking mechanism(ALR/ELR belts except driver'sseat belt) (→P. 66)Anchor bracket (for top tetherstrap)Anchor brackets are providedfor all rear seats.
