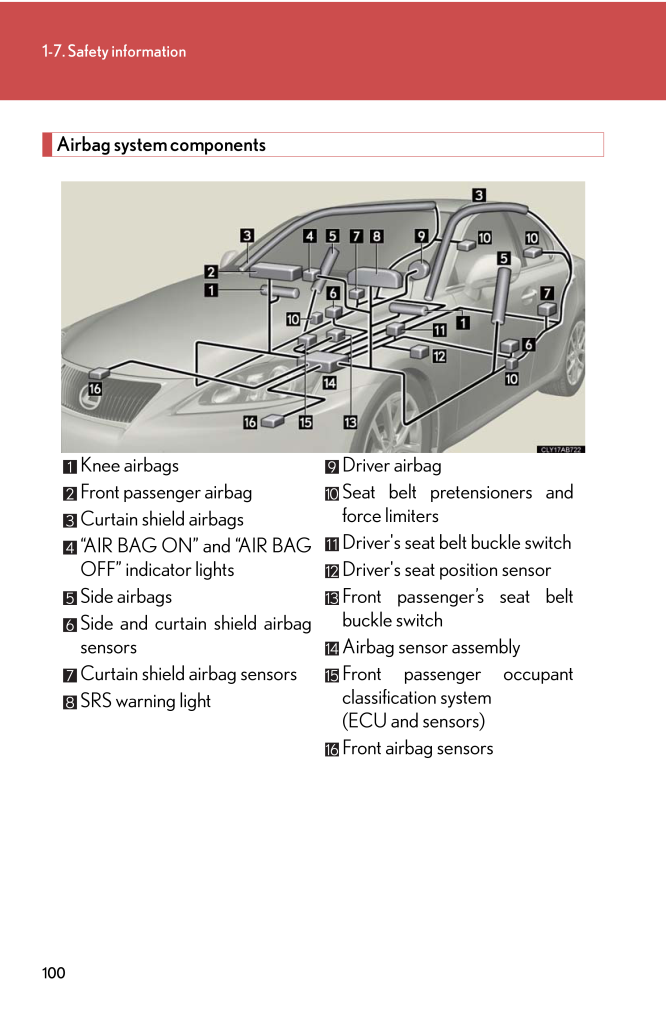

1001-7. Safety informationAirbag system componentsKnee airbagsFront passenger airbagCurtain shield airbags"AIR BAG ON" and "AIR BAGOFF" indicator lightsSide airbagsSide and curtain shield airbagsensorsCurtain shield airbag sensorsSRS warning lightDriver airbagSeat belt pretensioners andforce limitersDriver's seat belt buckle switchDriver's seat position sensorFront passenger's seat beltbuckle switchAirbag sensor assemblyFront passenger occupantclassification system (ECU and sensors)Front airbag sensors
