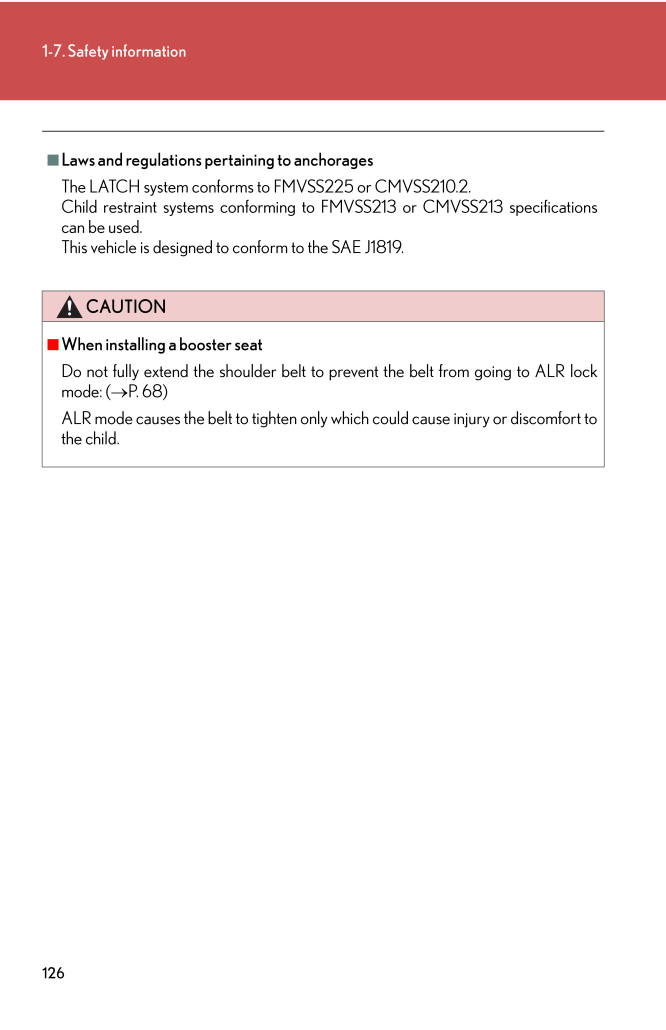

1261-7. Safety information■Laws and regulations pertaining to anchoragesThe LATCH system conforms to FMVSS225 or CMVSS210.2.Child restraint systems conforming to FMVSS213 or CMVSS213 specificationscan be used.This vehicle is designed to conform to the SAE J1819.CAUTION■When installing a booster seat Do not fully extend the shoulder belt to prevent the belt from going to ALR lockmode: (→P. 68) ALR mode causes the belt to tighten only which could cause injury or discomfort tothe child.
