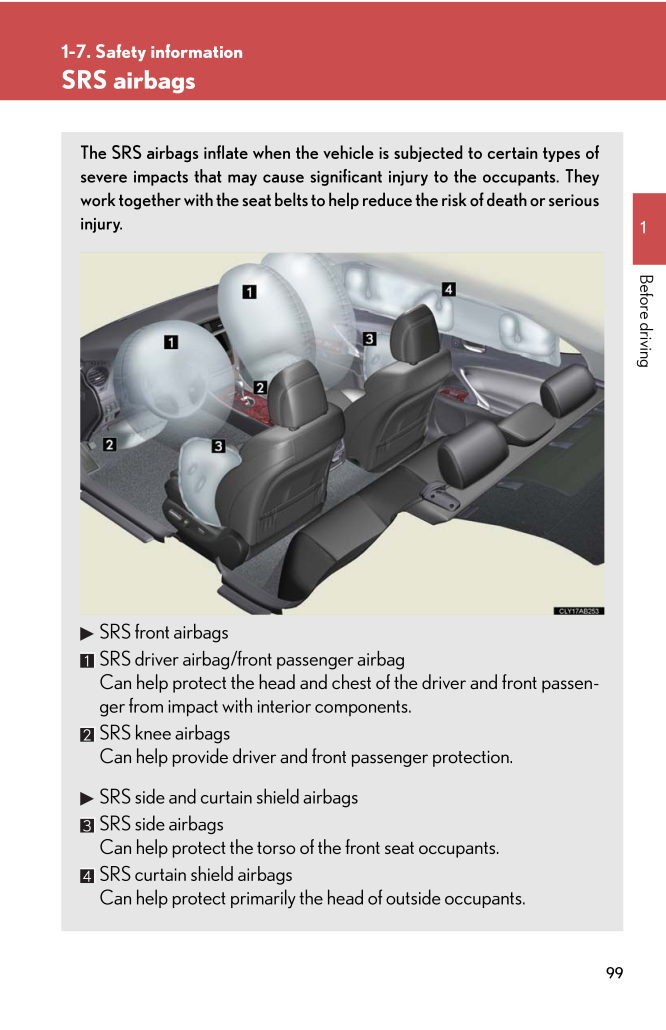

9911-7. Safety informationBefore drivingSRS airbagsThe SRS airbags inflate when the vehi cle is subjected to certain types ofsevere impacts that may cause significant injury to the occupants. Theywork together with the seat belts to he lp reduce the risk of death or seriousinjury.SRS front airbagsSRS driver airbag/front passenger airbagCan help protect the head and ches t of the driver and front passen-ger from impact with interior components.SRS knee airbagsCan help provide driver and front passenger protection.SRS side and curtain shield airbagsSRS side airbagsCan help protect the torso of the front seat occupants.SRS curtain shield airbagsCan help protect primarily the head of outside occupants.
参考になったと評価
3人が参考になったと評価しています。
このマニュアルの目次
-
1 .971Before driving1-7. Saf...971Before driving1-7. Safety informationCorrect driving postureDrive in a good posture as follows:Sit upright and well back inthe seat. (→P. 57)Adjust the position of the seatforward or backward toensure the pedals can bereached and easilydepressed to the ...
-
2 .981-7. Safety information...981-7. Safety informationCAUTION■While driving●Do not adjust the position of the driver's seat while driving.Doing so could cause the driver to lose control of the vehicle.●Do not place a cushion between the driver or passenger and the seatback.A cushion m...
-
3 .9911-7. Safety informatio...9911-7. Safety informationBefore drivingSRS airbagsThe SRS airbags inflate when the vehi cle is subjected to certain types ofsevere impacts that may cause significant injury to the occupants. Theywork together with the seat belts to he lp reduce the risk o...
-
4 .1001-7. Safety informatio...1001-7. Safety informationAirbag system componentsKnee airbagsFront passenger airbagCurtain shield airbags"AIR BAG ON" and "AIR BAGOFF" indicator lightsSide airbagsSide and curtain shield airbagsensorsCurtain shield airbag sensorsSRS warning lightDriver ai...
-
5 .1011-7. Safety informatio...1011-7. Safety information1Before drivingYour vehicle is equipped with AD VANCED AIRBAGS designed basedon the US motor vehicle safety st andards (FMVSS208). The airbag sen-sor assembly (ECU) controls airbag deployment based on informationobtained from the ...
-
6 .1021-7. Safety informatio...1021-7. Safety information■SRS airbag deployment conditions (front airbags)●The SRS front airbags will deploy in the event of an impact that exceeds the setthreshold level (the level of force corresponding to an approximately 12 - 18 mph[20 - 30 km/h] fron...
-
7 .1031-7. Safety informatio...1031-7. Safety information1Before driving■Types of collisions that may not de ploy the SRS airbags (front airbags)The SRS front airbags are generally not designed to inflate if the vehicle is involvedin a side or rear collision, if it rolls over, or if it...
-
8 .1041-7. Safety informatio...1041-7. Safety information■When to contact your Lexus dealerIn the following cases, contact your Lexus dealer as soon as possible.●Any of the SRS airbags have been inflated.●The front of the vehicle is damaged ordeformed, or was involved in an accidentthat...
-
9 .1051-7. Safety informatio...1051-7. Safety information1Before drivingCAUTION■SRS airbag precautionsObserve the following precautions regarding the airbags. Failure to do so may cause death or serious injury.●The driver and all passengers in the vehi cle must wear their seat belts pro...
-
10 .1061-7. Safety informatio...1061-7. Safety informationCAUTION■SRS airbag precautions●The SRS front passenger airbag also depl oys with considerable force, and cancause death or serious injury especially if the front passenger is very close to theairbag. The front passenger seat shou...
-
11 .1071-7. Safety informatio...1071-7. Safety information1Before drivingCAUTION■SRS airbag precautions●Do not sit on the edge of the seat or leanagainst the dashboard.●Do not allow a child to stand in front of theSRS front passenger airbag unit or sit onthe knees of a front passenger.●D...
-
12 .1081-7. Safety informatio...1081-7. Safety informationCAUTION■SRS airbag precautions●If a vinyl cover is put on the area where the SRS knee airbag will deploy, be sure toremove it.●Do not use seat accessories which cove r the parts where the SRS side airbagsinflate as they may interf...
-
13 .1091-7. Safety informatio...1091-7. Safety information1Before drivingCAUTION■Modification and disposal of SRS airbag system componentsDo not dispose of your vehicle or perfor m any of the following modifications with-out consulting your Lexus dealer. The SRS airbag may malfunct ion o...
-
14 .1101-7. Safety informatio...1101-7. Safety informationFront passenger occupant classification systemYour vehicle is equipped with a front passenger occupant classification sys-tem. This system detects the conditions of the front passenger seat andactivates or deactivates the devices...
-
15 .1111-7. Safety informatio...1111-7. Safety information1Before drivingCondition and operation in the front passenger occupant classification system■Adult*1■Child *3 or child restraint system*4Indicator/warning light"AIR BAG ON" and "AIR BAG OFF" indicator lights"AIR BAG ON"SRS warning...
-
16 .1121-7. Safety informatio...1121-7. Safety information■Unoccupied■There is a malfunction in the system*1: The system judges a person of adul t size as an adult. When a smalleradult sits in the front passenger se at, the system may recognize him/her as a child depending on his/her phy...
-
17 .1131-7. Safety informatio...1131-7. Safety information1Before driving*4: Never install a rear-facing child re straint system on the front passen-ger seat. A forward-facing child restraint system should only beinstalled on the front passenger seat when it is unavoidable. (→P. 115)*5...
-
18 .1141-7. Safety informatio...1141-7. Safety informationCAUTION■Front passenger occupant classi fication system precautions●Do not recline the front passenger seatback so far that it touches a rear seat. Thismay cause the "AIR BAG OFF" indicator ligh t to be illuminated, which indicate...
-
19 .11511-7. Safety informati...11511-7. Safety informationBefore drivingChild restraint systemsPoints to rememberStudies have shown that installing a child restraint on a rear seat is saferthan installing one to the front passenger seat. ●Choose a child restraint system that suits your...
-
20 .1161-7. Safety informatio...1161-7. Safety informationForward facing ⎯ Convertible seatBooster seat■Selecting an appropriate child restraint system●Use a child restraint system appropriate for the child until the child becomeslarge enough to properly wear the vehicle's seat belt.●If ...
-
21 .1171-7. Safety informatio...1171-7. Safety information1Before drivingCAUTION■Child restraint precautions●Lexus strongly urges the use of a proper child restraint system that conforms tothe size of the child, installed on the rear seat. According to accident statistics, thechild is s...
-
22 .1181-7. Safety informatio...1181-7. Safety informationCAUTION■When children are in the vehicleDo not allow children to play with the seat belt. If the seat belt becomes twistedaround a child's neck, it may lead to choking or other serious injuries that couldresult in death.If this oc...
-
23 .11911-7. Safety informati...11911-7. Safety informationBefore drivingInstalling child restraintsFollow the child restraint system ma nufacturer's instructions. Firmlysecure child restraints to the rear seats using the LATCH anchors or a seatbelt. Attach the top tether strap when in...
-
24 .1201-7. Safety informatio...1201-7. Safety informationInstallation with LATCH systemType AFlip the cover.Latch the hooks of thelower straps onto theLATCH anchors. If the child restraint has atop tether strap, the toptether strap should belatched onto the top tetherstrap anchors. For ...
-
25 .1211-7. Safety informatio...1211-7. Safety information1Before drivingType BFlip the cover.Latch the buckles onto theLATCH anchors. If the child restraint has atop tether strap, the toptether strap should belatched onto the top tetherstrap anchors. For owners in Canada:The symbol on a...
-
26 .1221-7. Safety informatio...1221-7. Safety informationInstalling child restraints using a seat belt (child restraint lock function belt)■Rear facing ⎯ Infant seat/convertible seatPlace the child seat on the rearseat facing the rear of the vehicle.Run the seat belt through the childse...
-
27 .1231-7. Safety informatio...1231-7. Safety information1Before drivingWhile pushing the child seat downinto the rear seat, allow the shoul-der belt to retract until the childseat is securely in place.After the shoulder belt hasretracted to a point where there isno slack in the belt, p...
-
28 .1241-7. Safety informatio...1241-7. Safety informationWhile pushing the child seat intothe rear seat, allow the shoulderbelt to retract until the child seat issecurely in place.After the shoulder belt hasretracted to a point where there isno slack in the belt, pull the belt tocheck t...
-
29 .1251-7. Safety informatio...1251-7. Safety information1Before drivingRemoving a child restraint installed with a seat beltPush the buckle release buttonand fully retract the seat belt. Child restraint systems with a top tether strapSecure the child restraint using aseat belt or the l...
-
30 .1261-7. Safety informatio...1261-7. Safety information■Laws and regulations pertaining to anchoragesThe LATCH system conforms to FMVSS225 or CMVSS210.2.Child restraint systems conforming to FMVSS213 or CMVSS213 specificationscan be used.This vehicle is designed to conform to the SAE...
-
31 .1271-7. Safety informatio...1271-7. Safety information1Before drivingCAUTION■When installing a child restraint systemFollow the directions given in the child re straint system installation manual and fixthe child restraint system securely in place.If the child restraint system is not...
-
32 .1281-7. Safety informatio...1281-7. Safety informationCAUTION■Do not use a seat belt extenderIf a seat belt extender is used when inst alling a child restraint system, the seat beltwill not securely hold the child restraint system, which could cause death or seriousinjury to the chi...
