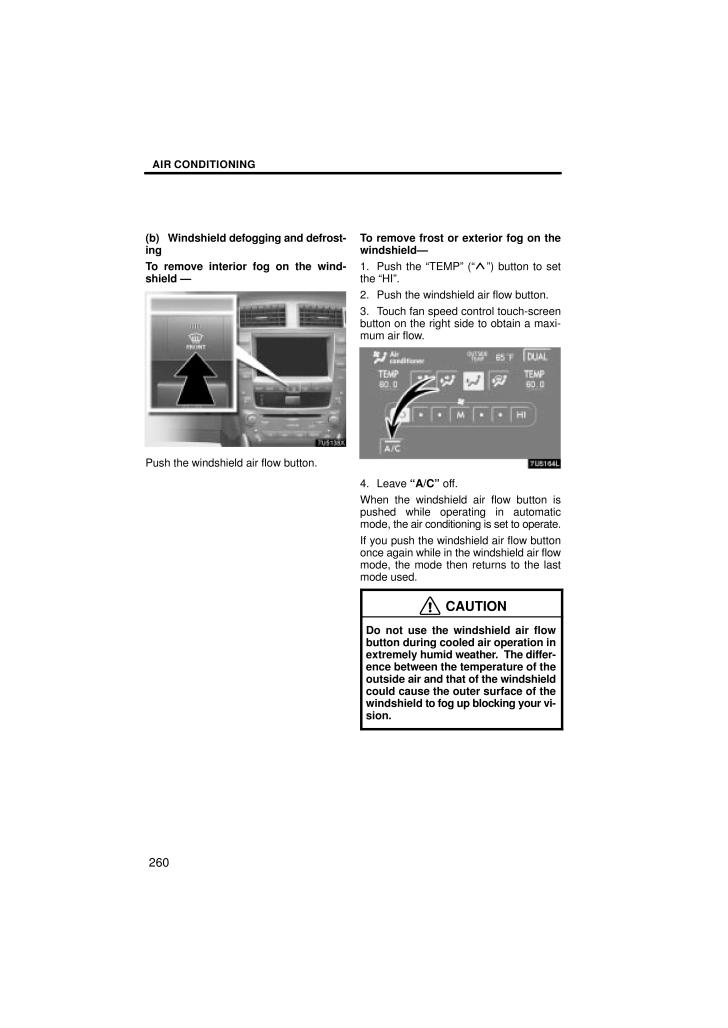

AIR CONDITIONING260(b) Windshield defogging and defrost-ingTo remove interior fog on the wind-shield -Push the windshield air flow button.To remove frost or exterior fog on thewindshield-1. Push the "TEMP" ("") button to setthe "HI".2. Push the windshield air flow button.3. Touch fan speed control touch-screenbutton on the right side to obtain a maxi-mum air flow.4. Leave "A/C" off.When the windshield air flow button ispushed while operating in automaticmode, the air conditioning is set to operate.If you push the windshield air flow buttononce again while in the windshield air flowmode, the mode then returns to the lastmode used.CAUTIONDo not use the windshield air flowbutton during cooled air operation inextremely humid w eather. The differ-ence between the temperature of theoutside air and that of the windshieldcould cause the outer surface of thewindshield to fog up bl ocking your vi-sion.
