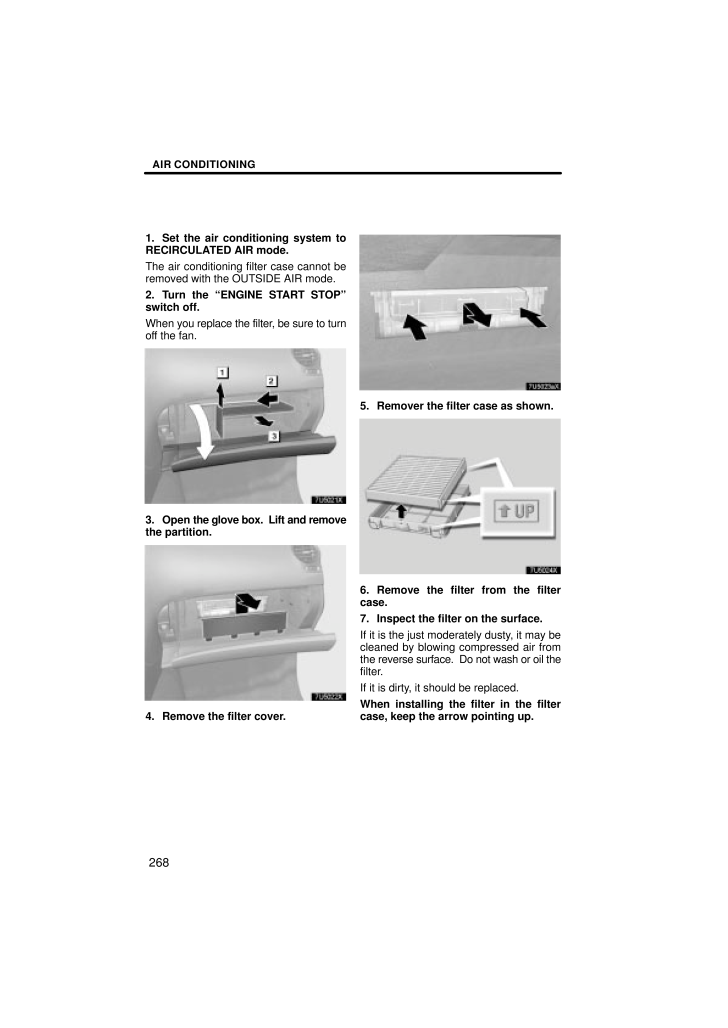

AIR CONDITIONING2681. Set the air conditioning system toRECIRCULATED AIR mode.The air conditioning filter case cannot beremoved with the OUTSIDE AIR mode.2. Turn the "ENGINE START STOP"switch off.When you replace the filter, be sure to turnoff the fan.3. Open the glove box. Lift and removethe partition.4. Remove the filter cover.5. Remover the filter case as shown.6. Remove the filter from the filtercase.7. Inspect the filter on the surface.If it is the just moderately dusty, it may becleaned by blowing compressed air fromthe reverse surface. Do not wash or oil thefilter.If it is dirty, it should be replaced.When installing the filter in the filtercase, keep the arrow pointing up.
